Запчасти Case IH 5400 (9-078) - DEPTH PRESS WHEEL, 4 X 12 INCH, NYLON WHEEL (09) - CHASSIS

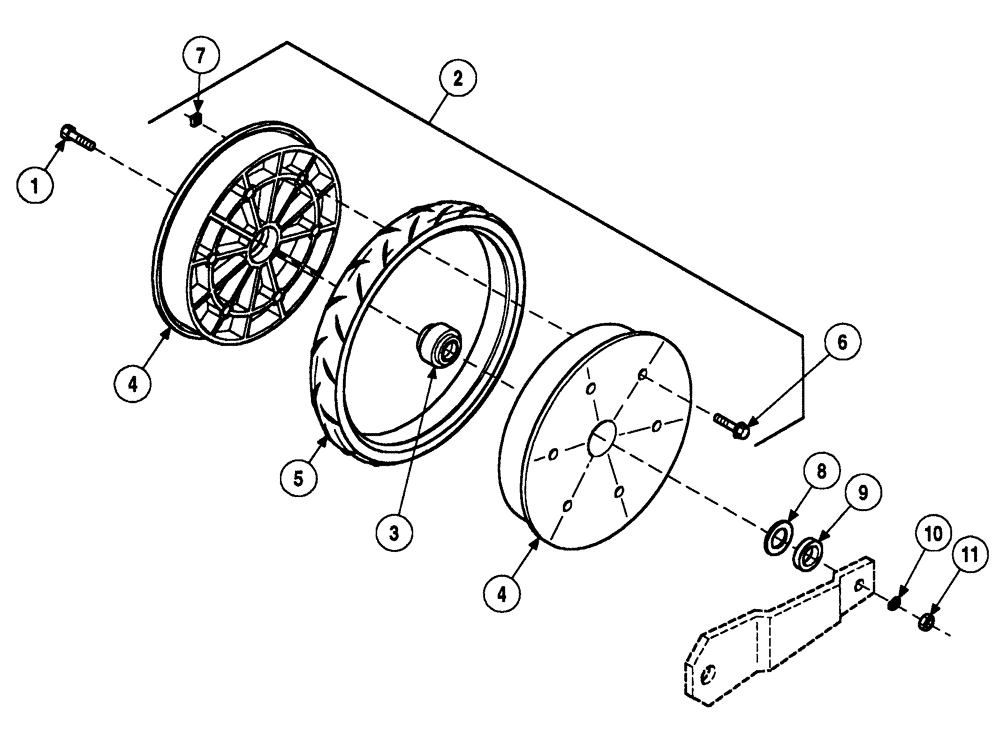

Схема запчастей Case IH 5400 - (9-078) - DEPTH PRESS WHEEL, 4 X 12 INCH, NYLON WHEEL (09) - CHASSIS
11
4
7
8
10
5
4
1
6
3
2
9

Артикул

Название

Примечание

Количество

0

318632A1

WHEEL ASSY

press 4" x 12", Years: -01-OCT-07

1шт.

0

87649929

WHEEL ASSY

press 4" x 12", Start Year: 01-OCT-07

1шт.

1

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

2

318668A1

WHEEL

assembly, press, 4" x 12" plastic

1шт.

3

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

4

323890A1

WHEEL

4X12 NYLON HALF 40MM, Years: -01-OCT-07

2шт.

4

87649929

WHEEL ASSY

press 4" x 12", Start Year: 01-OCT-07

2шт.

5

323889A1

TYRE/TIRE

concave traction 4x12

1шт.

6

458-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

8

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

3шт.

9

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

1шт.

10

12034871

WASHER

5/8"

1шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

Выбрано товаров: 14
