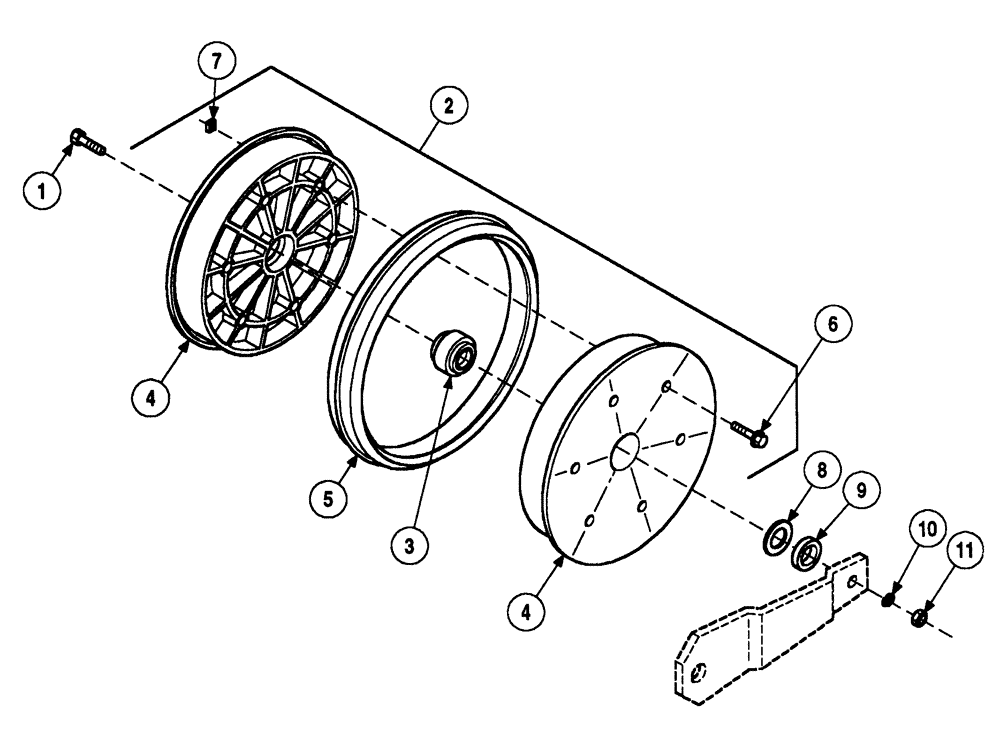

Запчасти Case IH 5400 (9-076) - DEPTH PRESS WHEEL, 3 X 13 INCH, NYLON WHEEL (09) - CHASSIS

0

252415A1

WHEEL

press assy 13 plastic

1шт.

1

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

2

247959A1

WHEEL ASSY

press, nylon 3" x 13", Years: -01-OCT-07

1шт.

2

87645554

WHEEL ASSY

3 x 13 press, Start Year: 01-OCT-07

1шт.

3

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

4

323891A1

WHEEL

NYLON HALF,3X13,40MM, Years: -01-OCT-07

2шт.

4

87645554

WHEEL ASSY

3 x 13 press, Start Year: 01-OCT-07

2шт.

5

842666C1

TYRE/TIRE

press 3" x 13 3/8"

1шт.

6

458-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

8

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

3шт.

9

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

1шт.

10

12034871

WASHER

5/8"

1шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.
