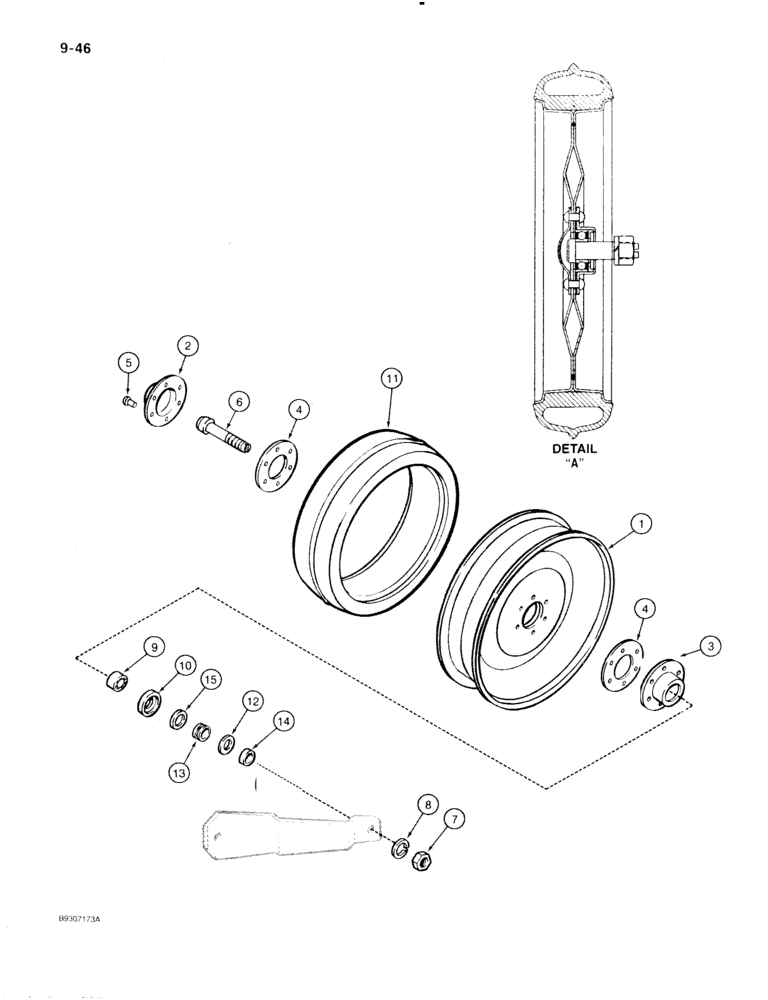

Запчасти Case IH 5400 (9-072) - DEPTH PRESS WHEEL, 3 X 13 INCH, METAL WHEEL (09) - CHASSIS

0

1973102C2

WHEEL

ASSY W/TIRE 13 INCH

1шт.

1

NSS

NOT SOLD SEPARAT

WHEEL Depth Press

1шт.

2

602990R1

CAP

DISK

1шт.

3

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

BEARING

1шт.

4

602992R2

GASKET,0.79mm Thk

BEARING RETAINER

2шт.

5

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

6

602987R1

BOLT

DISK

1шт.

7

408

NUT,5/8" - 18, Gr 5

1шт.

8

12034871

WASHER

5/8"

1шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

41622600

1шт.

10

602994R1

FLANGE

seal 29/32"id x 1 9/16"od

1шт.

11

842666C1

TYRE/TIRE

press 3" x 13 3/8"

1шт.

12

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

1шт.

13

464628R1

SEAL

DIRT

1шт.

14

610993R1

WASHER

WASHER, WHEEL

1шт.

15

602988R1

SPACER

SEAL RETAINER

1шт.
