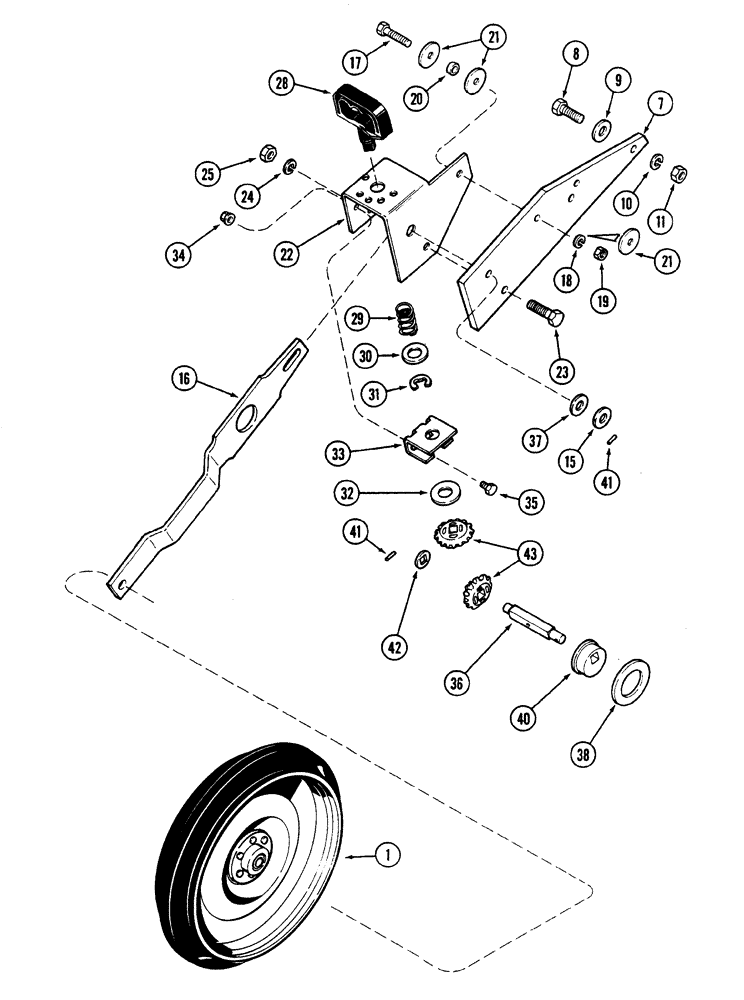

Запчасти Case IH 5400 (9-064) - DEPTH PRESS WHEEL, CONVENTIONAL (09) - CHASSIS

1

REF

INSTRUCTION

TIRE AND WHEEL ASSEMBLY - PRESS

1шт.

7

819518C2

BAR

sector support

1шт.

8

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

9

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

280431

NUT,1/2"-13, G5

2шт.

15

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

16

819446C1

DRAWBAR

presswheel

1шт.

17

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

19

9628503

NUT,3/8"-16, G5

1шт.

19

88902

NUT,3/8"-16

1шт.

20

819596C2

BUSHING,11.13mm ID x 16.5mm OD x 10.13mm L

7/16" id x 21/32" od x 13/32" long

1шт.

21

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

1шт.

22

819519C1

HITCH BRACKET

sector, indexing

1шт.

23

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

25

280431

NUT,1/2"-13, G5

1шт.

28

819532C1

HANDLE

press wheel adjusting

1шт.

29

819592C1

SPRING

handle

1шт.

30

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

1шт.

31

819678C1

RING

handle retaining

1шт.

32

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

1шт.

33

819988C1

SUPPORT

adjusting gear

1шт.

34

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

35

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

36

819531C1

PIN,12.7mm OD x 111mm L

1/2" x 4 3/8" fl

1шт.

37

495-81023

WASHER,17/32" x 1 1/4" x .030"

1шт.

38

593438R1

WASHER,48.51mm ID x 68.58mm OD x 3.04mm Thk

1 29/32"id 2 11/16"od 1/8"

1шт.

40

819526C1

CAM

eccentric

1шт.

41

88042

PIN,4.76mm OD x 19.05mm L

2шт.

42

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

1шт.

43

819520C2

GEAR

mitre 20 tooth plastic

2шт.
