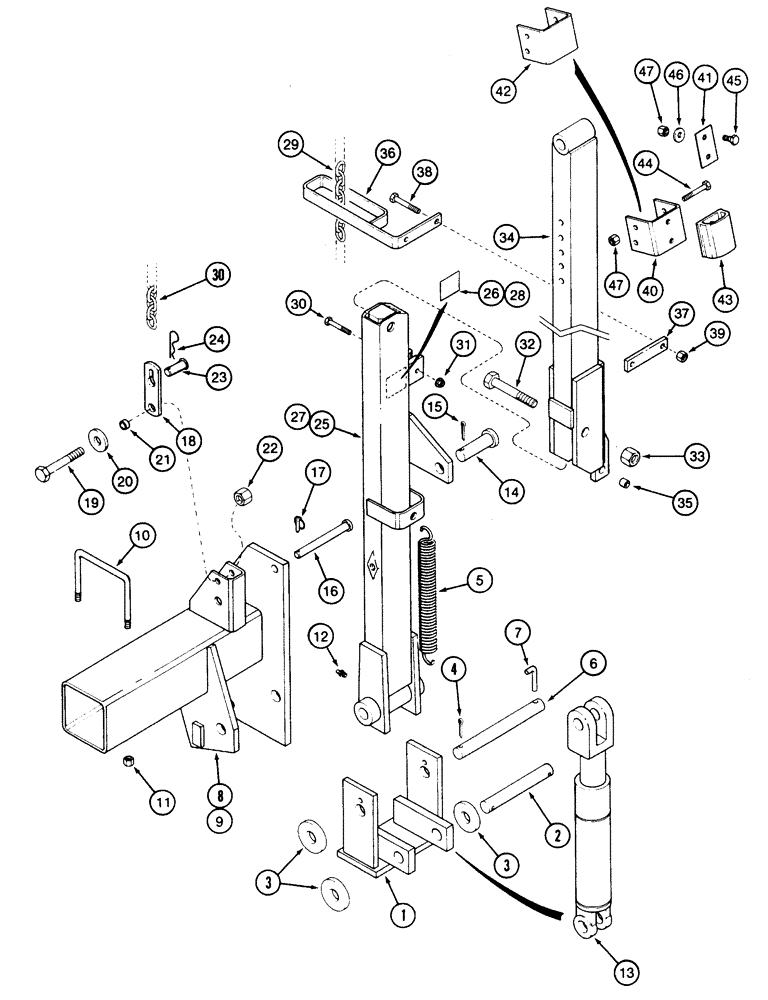

Запчасти Case IH 5400 (9-056) - DISC MARKER, FOLDING (09) - CHASSIS

1

1279633C1

HITCH BRACKET

ASSY, CYL PIVOT

2шт.

2

1279644C1

PIVOT PIN,25.4mm OD x 183mm L

CYL.

2шт.

3

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

6шт.

4

80753

COTTER PIN,1/4" x 1 1/2"

6шт.

5

1277583C1

COIL SPRING

marker assist

2шт.

6

1279638C1

PIVOT PIN,25.4mm OD x 237mm L

MARKER

2шт.

7

813175C2

LOCK PIN,9.5mm OD

pivot, "L"

2шт.

8

1279624C1

HITCH BRACKET

ASSY, LH

1шт.

9

1279625C1

HITCH BRACKET

ASSY, RH

1шт.

10

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

5/8" NC, 5" x 6.5"

4шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

12

87414

LUBE NIPPLE,1/4" - 28

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - MARKER

2шт.

14

810751C1

PIN

headed 1" x 3 1/2"

2шт.

15

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

16

97488C1

HEADED PIN

5/8 X 5.750 PLN TYPE 8

2шт.

17

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

18

125789C1

BAR

chain pivot

2шт.

19

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

20

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

21

546587R2

BUSHING

17/32" id x 11/32" long

2шт.

22

86992215

LOCK NUT,1/2"-13, GC

2шт.

23

86624065

HEADED PIN,3/4" x 7/8", G2

4шт.

24

87327559

COTTER PIN

9/64" x 2 15/16"

4шт.

25

292483A1

ARM

PIVOT ASSY, W/DECAL GRAIN DRILL MARKER LH

1шт.

26

1254154C2

WARNING DECAL

1шт.

27

292485A1

ARM

PIVOT ASS'Y, W/DECAL GRAIN DRILL MARKER RH

1шт.

28

1254154C2

WARNING DECAL

1шт.

29

308186A1

CHAIN (AG)

ACTUATOR LONG

2шт.

30

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

31

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

32

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

33

231-41312

LOCK NUT,3/4"-10, GB

2шт.

34

1279706C3

TUBE

SHORT MARKER GRAIN DRILL 60.31" Long

2шт.

34

178661A1

TUBE,750 mm Length

2шт.

35

1279018C1

BUSHING

MARKER ARM, (For 1532 mm Tube)

1шт.

35

1960316C1

SHEAR BOLT BUSHING

5/16 SHEAR BOLT

1шт.

36

90817C1

GUIDE

BRACKET

2шт.

37

90923C1

PLATE

STRAP

2шт.

38

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

39

88902

NUT,3/8"-16

4шт.

40

1279835C1

SUPPORT

BRACKET, STOP

2шт.

41

1976546C1

BAR

MARKER BUMPER BACKUP

2шт.

42

1279835C2

CHANNEL

MARKER STOP

1шт.

43

1279725C1

STOP

PAD

2шт.

44

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

45

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

46

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

47

88902

NUT,3/8"-16

8шт.
