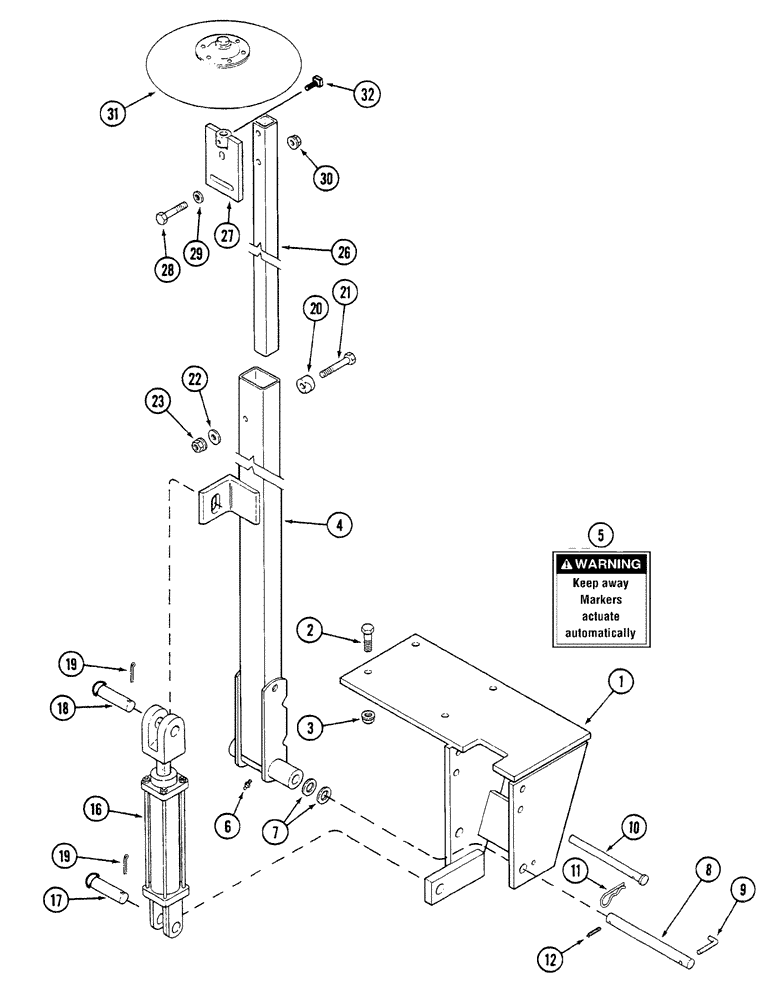

Запчасти Case IH 5400 (9-054) - DISC MARKER, RIGID (09) - CHASSIS

1

95670C3

BRACKET

ASSY, LEFT

1шт.

1

95671C3

BRACKET

ASSY, RIGHT

1шт.

2

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

3

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

Flg, USR, 5/8"-11

8шт.

4

95839C2

TUBE

With Decal, RH

1шт.

Includes 1254154C2

1шт.

4

95840C2

TUBE ASSY.

W/DECAL, LH R

1шт.

Includes 1254154C2

1шт.

5

1254154C2

WARNING DECAL

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

7

86624166

WASHER,0.91" ID x 1.5" OD x 0.06" Thk

4шт.

8

1263878C1

PIVOT PIN

22 mm x 242 mm

2шт.

9

813175C2

LOCK PIN,9.5mm OD

pivot, "L"

2шт.

10

1263946C1

HEADED PIN

15 mm x 215 mm

2шт.

11

1970957C1

SPRING

PIN, HAIR (SPRING)

2шт.

12

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - MARKER LIFT

2шт.

17

86624100

HEADED PIN,1" x 3", G2

2шт.

18

39-11652

HEADED PIN,1" x 3 1/4"

2шт.

19

80753

COTTER PIN,1/4" x 1 1/2"

4шт.

20

89200C1

TUBE,13.5 mm ID x 31.7 mm OD x 20 mm L

Marker Clamp

2шт.

21

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

22

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

2шт.

23

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

26

91113C1

TUBE,1200 mm L

OUTER

2шт.

27

1279601C1

LARGE PLATE

PLATE, LARGE disc adjusting

2шт.

28

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

29

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

30

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

31

1264358C1

DISC,13"

assembly, marker

2шт.

32

87616

SET SCREW,3/8" - 16 x 3/4"

2шт.
