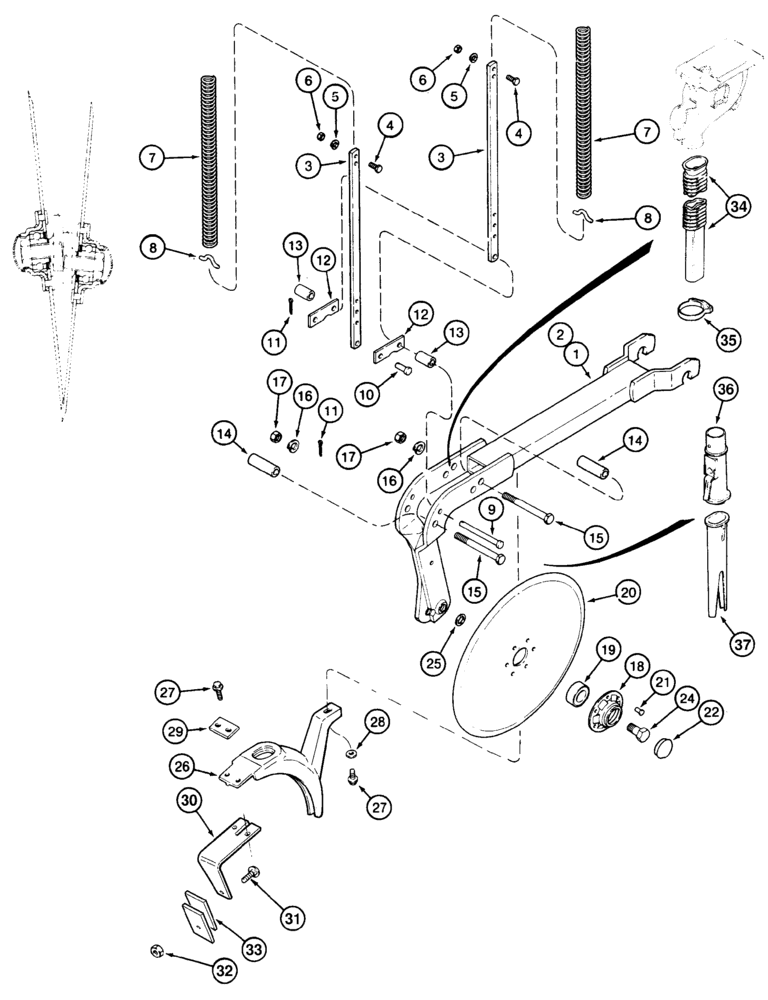

Запчасти Case IH 5400 (9-052) - DOUBLE DISC FURROW OPENER, MULCH TILL (MIN-TILL), FLAT SCRAPER (09) - CHASSIS

1

1334190C1

DRAWBAR

long 437.5mm tube length

1шт.

2

1334176C1

DRAWBAR

short 298.5mm tube length

1шт.

3

1969063C1

BAR

flat pressure 5/16" thick

2шт.

4

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

80681

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

113976A1

SPRING

C .162" wire .992" ID 1.34" OD and .816" ID 1.14OD 15.87" long

2шт.

8

1337321C1

CLIP

spring lock 1/4" OD

2шт.

9

439-5666

HEADED PIN,9.53mm OD x 104.78mm L

1шт.

10

439-5616

HEADED PIN,3/8" x 1"

1шт.

11

80756

COTTER PIN,1/8" x 3/4"

2шт.

12

1978922C1

BAR

3/16" tk with holes

2шт.

13

814812C1

SPACER

spring tooth

2шт.

14

1263794C1

SPACER

13.87MM ID x 21.34MM OD x 63.5MM long

2шт.

15

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

17

280431

NUT,1/2"-13, G5

2шт.

18

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

1шт.

19

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

1шт.

19

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

20

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square

1шт.

20

90850C92

DISC

OPENER ASSY, 14" STD LEADING, Includes disc, bearing and rivets

1шт.

20

90851C92

DISC

Assembly, 14" Trailing, Includes disc, bearing and rivets

1шт.

21

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

22

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

23

1978957C1

BOLT,Hex, 5/8" - 11 x 1-1/4", LH Thd, Gr 5

LK .625X1.25 UNC LH GR5 PLAIN, C/W .5 LOC-GRIP

1шт.

24

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

25

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

2шт.

26

1279970C2

BOOT

plastic inj molded black f/o front

1шт.

27

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

3шт.

28

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

29

88893C1

PLATE

boot back-up

1шт.

30

100495A1

BAR

bracket scraper mounting

1шт.

31

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

32

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

33

114916A1

SCRAPER

BAR 76 MM X 38 MM YZD

2шт.

34

101458A2

PLASTIC-RUBBER TUBE,20.6,38 mm Length

grain rubber

1шт.

35

106781A1

CLAMP,35.7mm - 41.3mm

hose, nylon 1.41-1.63" id

1шт.

36

842892C2

ADAPTER

furrow opener

1шт.

37

842893C2

PLASTIC-RUBBER TUBE,42 mm OD x 219 mm L

rubber, seed, furrow opener

1шт.
