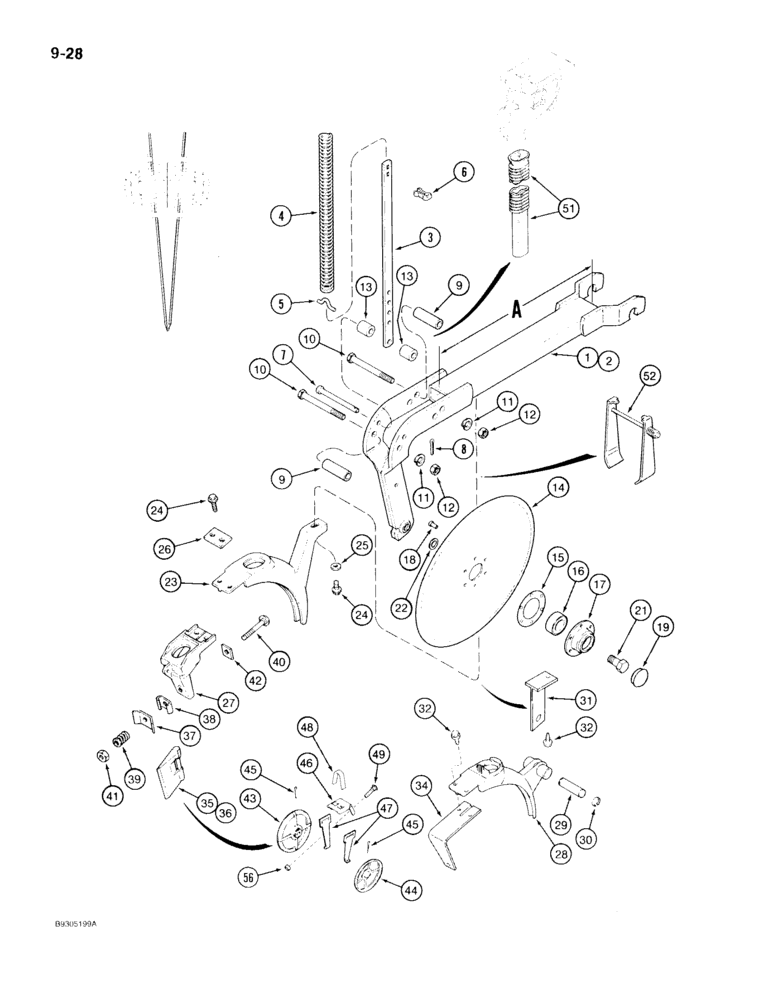

Запчасти Case IH 5400 (9-048) - DOUBLE DISC FURROW OPENER, CONVENTIONAL (09) - CHASSIS

1

1337102C1

DRAWBAR

short 437.5mm tube length

1шт.

2

1337116C1

BAR ASSY.

DRAW, FRT FURROW OPENER MINI

1шт.

Dimension "A" is 11.75"

1шт.

3

1333773C2

BAR

PRESSURE ROD

1шт.

4

113976A1

SPRING

C .162" wire .992" ID 1.34" OD and .816" ID 1.14OD 15.87" long

1шт.

5

1337321C1

CLIP

spring lock 1/4" OD

1шт.

6

605964R1

CLIP

clip

1шт.

7

439-5666

HEADED PIN,9.53mm OD x 104.78mm L

1шт.

8

80756

COTTER PIN,1/8" x 3/4"

1шт.

9

1263794C1

SPACER

13.87MM ID x 21.34MM OD x 63.5MM long

2шт.

10

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

280431

NUT,1/2"-13, G5

2шт.

13

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

2шт.

14a

1344911C2

DISK DRILL

opener assembly 355.6 mm x 2.0 mm, Years: -01-JUN-03

2шт.

Includes Refs. 14, 15, 16, 17 and six of 18

1шт.

14b

1344911C3

DISK DRILL

OPENER ASSY, 14" X 2.5M, Start Year: 01-JUN-03

2шт.

Includes Refs. 14, 15, 16, 17 and six of 18

1шт.

14

NSS

NOT SOLD SEPARAT

DISC Furrow Opener

1шт.

15

1344952C2

GASKET

Paper

2шт.

16

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id, Years: -01-AUG-07

1шт.

16

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

16

87668158

BALL BEARING,16.05mm ID x 45.23mm OD x 18.67mm W

1.78 x .73 x .62 id, Start Year: 01-SEP-07

1шт.

17

149170C2

FLANGED BEARING

bearing

1шт.

18

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

19

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

20

1978957C1

BOLT,Hex, 5/8" - 11 x 1-1/4", LH Thd, Gr 5

LK .625X1.25 UNC LH GR5 PLAIN, C/W .5 LOC-GRIP

1шт.

21

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

22

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

2шт.

23

1279970C2

BOOT

plastic inj molded black f/o front

1шт.

24

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

2шт.

25

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

26

88893C1

PLATE

boot back-up

1шт.

27

842894C1

BOOT

rear, akulon

1шт.

28

842891C1

BOOT

FRONT FURROW OPENER

1шт.

29

1547038C1

PIN

FURROW OPENER

1шт.

30

129164

SNAP RING,#75, Ext

2шт.

31

1546975C1

SUPPORT

OPENER BOOT

1шт.

32

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

3шт.

34

100495A1

BAR

bracket scraper mounting

1шт.

34

843364C92

KIT

scraper assembly - disk, inside

1шт.

35

816666C1

BLADE

Scraper, RH

1шт.

36

816665C1

BLADE

Scraper, LH

1шт.

37

816668C1

LEDGER PLATE

scraper

1шт.

38

819808C1

HINGE

inside scraper

1шт.

39

N62536

VALVE SPRING

C 1/16" wire x 15/32" od x 1" long

1шт.

40

433-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

1шт.

41

281010

LOCK NUT,7/8"-14, GC

1шт.

42

97756C1

BACK PLATE

scraper

1шт.

42

100641A1

PACKAGE

rotary scraper

1шт.

43

101533A1

SCRAPER

WHEEL, 4 INCH ROTARY

1шт.

44

101534A1

SCRAPER

WHEEL, 3-1/4 INCH ROTARY

1шт.

45

432-416

COTTER PIN,1/16" x 1"

2шт.

46

NSS

NOT SOLD SEPARAT

BRACKET Mounting

1шт.

47

NSS

NOT SOLD SEPARAT

BRACKET Scraper Side

2шт.

48

NSS

NOT SOLD SEPARAT

SPRING

1шт.

49

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

50

281010

LOCK NUT,7/8"-14, GC

1шт.

51

90793C1

TUBE

GRAIN, 129.5mm Long

1шт.

51

1960700C1

TUBE,255 mm Length

GRAIN

1шт.

52

819373C1

PACKAGE

DOUBLE DISK OUTSIDE SCRAPER

1шт.
