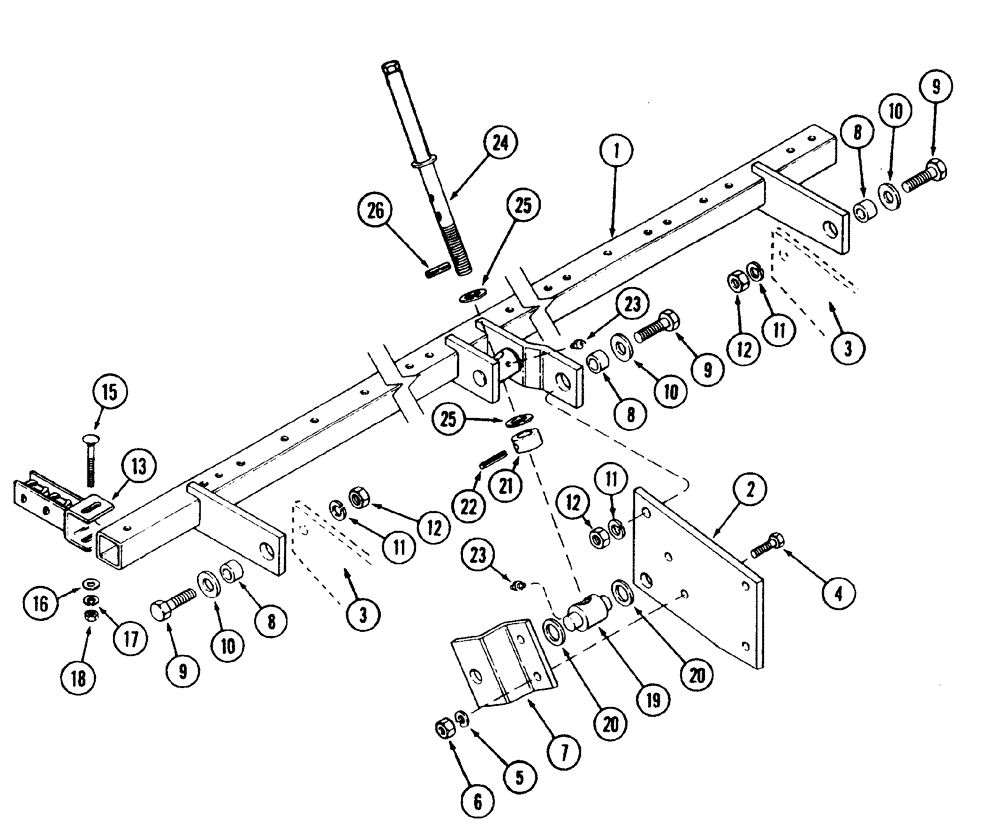

Запчасти Case IH 5400 (9-046) - ROCKSHAFT, MULCH-TILL (GRAIN DRILLS ASN CKB0030001) (09) - CHASSIS

1

352932A2

TUBE

15' press bar, 7 1/2"

2шт.

7-1/2" Row Spacing

1шт.

15' Drill

1шт.

1

352933A2

TUBE

15' press bar, 10"

2шт.

Not Shown

1шт.

10" Row Spacing

1шт.

15' Drill

1шт.

1

352930A2

TUBE,1366, 1301 mm Length

20' press bar 7 1/2"

2шт.

Not Shown

1шт.

7-1/2" Row Spacing

1шт.

20' Drill

1шт.

1

352931A2

TUBE

20' press bar 10"

2шт.

Not Shown

1шт.

10" Row Spacing

1шт.

20' Drill

1шт.

2

1279912C1

PLATE

lift bar inner support

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE Lift Support

2шт.

7

1279914C1

ARM

lift bar hammer strap 1/2" thick

2шт.

8

1279931C1

SPACER

30.175mm OD x 20.615mm ID x 17mm long

6шт.

9

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

6шт.

10

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

6шт.

11

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

6шт.

12

280954

NUT,3/4"-10, G5

6шт.

13

1978923C1

BRACKET

assy lift rod

1шт.

15

433-856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1шт.

16

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

18

280431

NUT,1/2"-13, G5

1шт.

19

91393C2

TRUNNION

2шт.

20

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

4шт.

21

91100C1

SPACER

lift crank 1 3/4" od x 1 1/16" id

2шт.

22

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

24

135573A2

ROD

adjustment

2шт.

25

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

4шт.

26

438-31220

PIN,3/16" x 1 1/4", Coiled

2шт.
