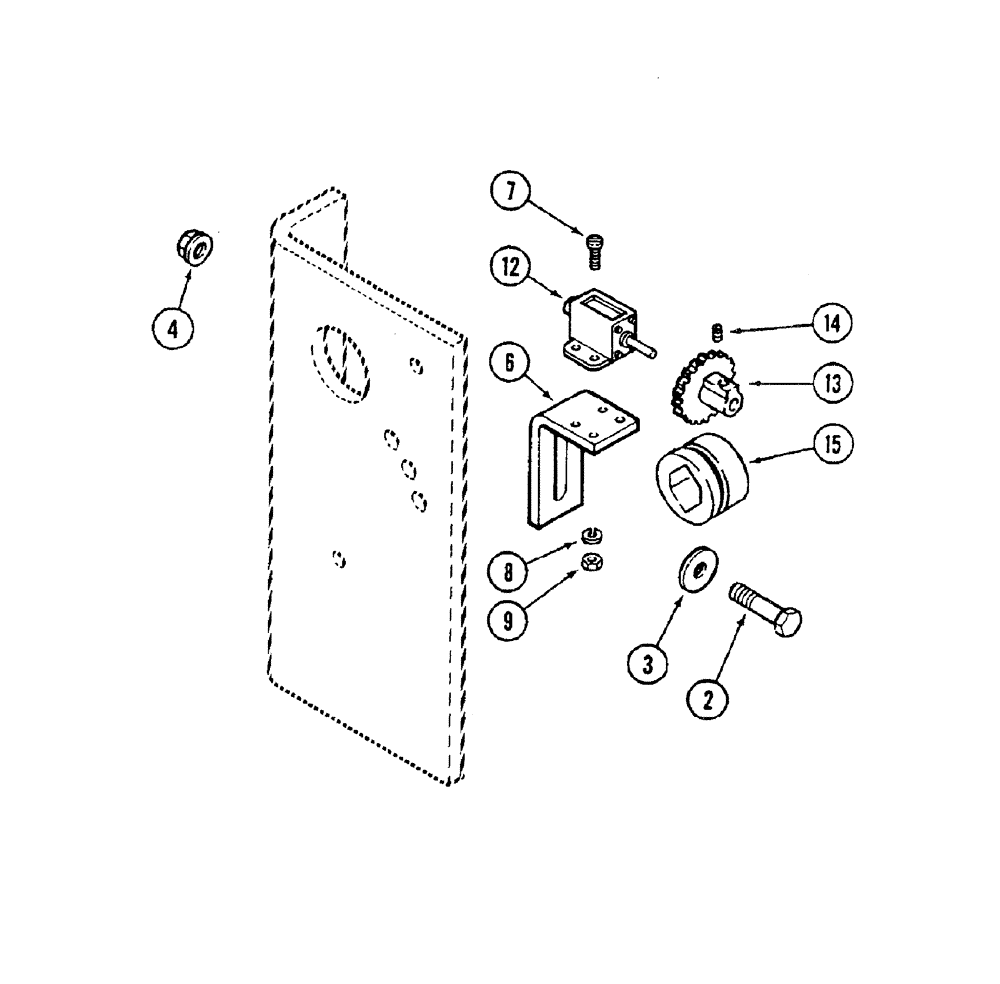

Запчасти Case IH 5400 (9-034) - ACREAGE COUNTER (GRAIN DRILLS BSN JAG0853598) (09) - CHASSIS

1

1973174C2

BRACKET

idler drive, Years: -01-MAR-07

2шт.

1

87632922

BRACKET

idler drive, Start Year: 01-MAR-07

2шт.

2

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

4

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

6

95725C2

BRACKET

ACREAGE COUNTER

1шт.

7

470-10512

SCREW,Cross Pan Hd, #5-40 x 3/4"

4шт.

8

492-11005

LOCK WASHER,#5

4шт.

9

225-14105

NUT,#5-40

4шт.

12

1995607C1

COUNTER

ACREAGE

1шт.

13

95708C2

GEAR

ACREAGE COUNTER WORM

1шт.

15' Drill

1шт.

13

95707C2

GEAR

ACREAGE COUNTER WORM

1шт.

20' Drill

1шт.

14

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

1шт.

15

95706C1

GEAR

ACREAGE COUNTER WORM

1шт.
