Запчасти Case IH 5400 (9-032) - GRAIN DRIVE (09) - CHASSIS

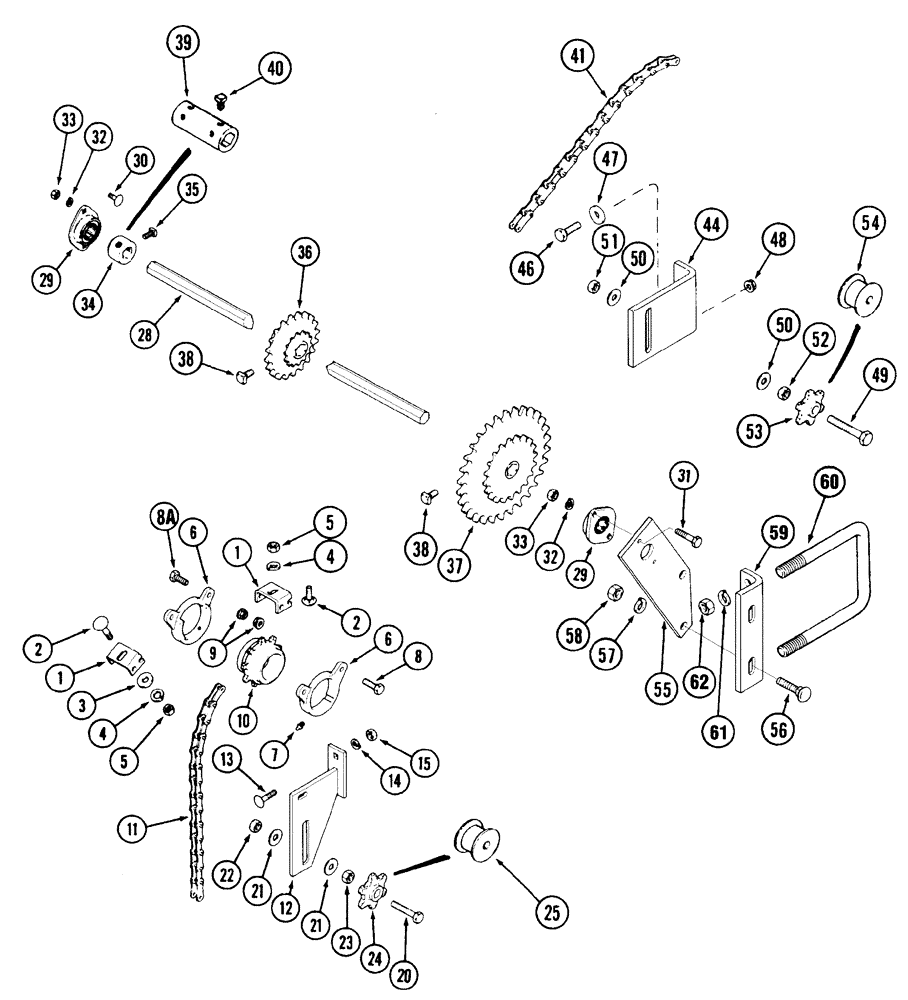

Схема запчастей Case IH 5400 - (9-032) - GRAIN DRIVE (09) - CHASSIS
31
54
33
13
49
7
6
36
32
5
47
15
56
29
10
12
41
39
29
46
3
51
60
37
9
58
28
35
55
59
38
5
57
25
44
62
21
61
4
40
8a
22
48
1
50
6
20
32
2
52
1
2
14
11
23
38
33
8
34
21
30
50
53
4
21

Артикул

Название

Примечание

Количество

1

91262C1

BRACKET

hopper drive sprocket

2шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15' Drill

1шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

20' Drill

1шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

5

9628503

NUT,3/8"-16, G5

1шт.

6

817458C1

HANGER

2шт.

7

87414

LUBE NIPPLE,1/4" - 28

2шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

8a

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

9

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.

10

817457C1

SPROCKET

9 tooth, double pitch

1шт.

11

REF

INSTRUCTION

CHAIN ASSEMBLY - COUNTERSHAFT DRIVE

2шт.

Use 33 links from roll 569089R1, 1 connecting link 1277928C91 and 7 offset link 456929R91

1шт.

12

1279941C1

BRACKET

idler

1шт.

13

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

15

9628503

NUT,3/8"-16, G5

1шт.

20

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

21

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

23

86632556

JAM NUT,Jam, 5/8"-11, G5

1шт.

24

819457C1

SPROCKET

6 tooth, plastic

1шт.

25

1277726C1

ROLLER,48mm OD x 34mm L

idler

1шт.

28

90938C1

BAR

hex 7/8" x 87 7/8" long

2шт.

28

1279949C1

BAR

hex .875" x 117.1"

2шт.

29

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

6шт.

29

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

8шт.

30

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

31

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

31

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

32

80681

LOCK WASHER,5/16"

12шт.

33

9635082

NUT,5/16" - 18, Gr 5

12шт.

34

87461085

SPROCKET

collar locking

2шт.

35

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

4шт.

36

1279892C1

SPROCKET

12 tooth and 24 tooth assembly

1шт.

37

1279893C1

SPROCKET

22 tooth and 44 tooth assembly

2шт.

38

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

6шт.

38

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

8шт.

39

1254283C1

COUPLING

7/8" hex shaft

1шт.

40

83984714

SET SCREW,Sq Hd, 3/8"-16 x 1/2", Cup Pt

2шт.

41

REF

INSTRUCTION

CHAIN ASSEMBLY - FEEDSHAFT DRIVE

1шт.

Use 19 links from roll 569089R1, 1 connecting link 1277928C91 and 3 offset link 456929R91

1шт.

44

1973174C1

PLATE

BAR, DRIVE IDLER, Serial Range: -JAG0851408

1шт.

Single welded 2 bearing support and idler mount replaced with 19731742C2 bracket, 222498A1 angle and 222496A1 bar plus attatching hardware

1шт.

44

1973174C2

BRACKET

idler drive, Years: -01-MAR-07

2шт.

44

87632922

BRACKET

idler drive, Start Year: 01-MAR-07

2шт.

45

1344963C1

BRACKET

BAR, DRIVE IDLER, Serial Range: -JAG0851408

1шт.

Single welded 2 bearing support and idler mount replaced with 19731742C2 bracket, 222498A1 angle and 222496A1 bar plus attatching hardware

1шт.

Not Shown

1шт.

45

1344963C2

BRACKET

BAR, DRIVE IDLER

1шт.

46

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

47

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

48

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

49

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

50

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

51

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

52

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

53

819457C1

SPROCKET

6 tooth, plastic

2шт.

54

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

55

1986305C1

BAR

bearing support OAL=306 mm

2шт.

55

222496A1

BAR

plate bearing support OAL=285 mm

2шт.

56

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

4шт.

57

12034871

WASHER

5/8"

4шт.

58

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

59

222498A1

ANGLE

adj bracket seed drive mount l 37 e

2шт.

60

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread

2шт.

61

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

62

280431

NUT,1/2"-13, G5

4шт.
