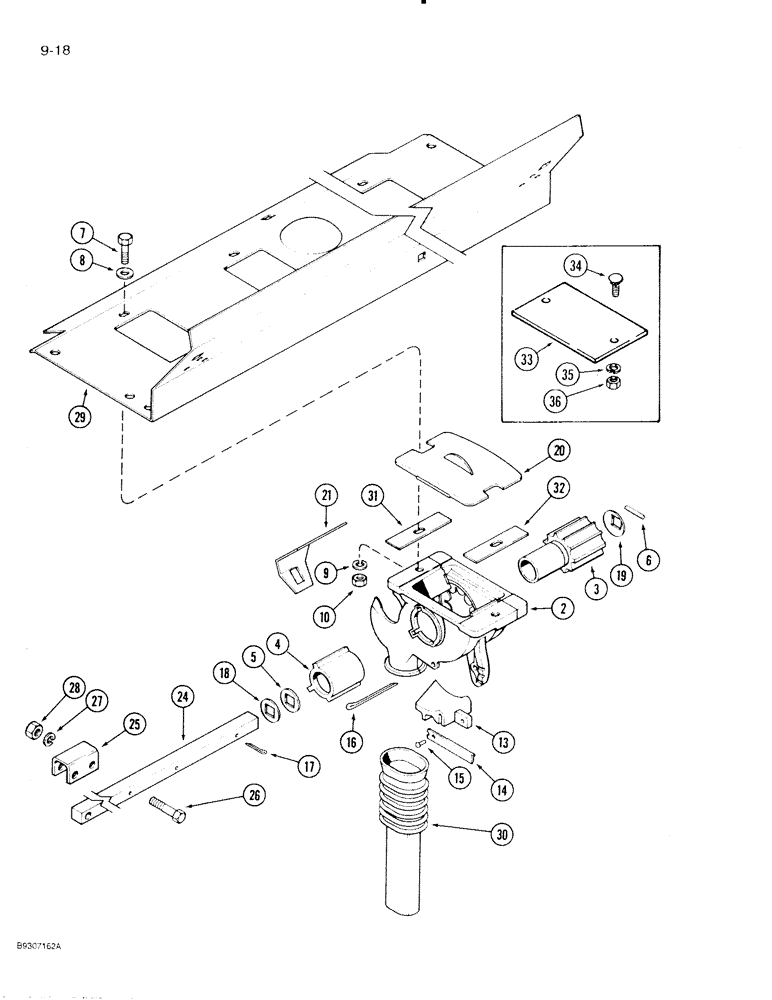

Запчасти Case IH 5400 (9-028) - GRAIN FEED (GRAIN DRILLS BSN CKB0030000) (09) - CHASSIS

0

603816R93

CUP

fluted feed service

1шт.

0

8-27510

INSTRUCTION

card, fluted feed cup

1шт.

2

NSS

NOT SOLD SEPARAT

CUP Feed

1шт.

3

603111R1

ROLLER

fluted

1шт.

4

603112R1

BLOCK

shut off plain

1шт.

5

602106R1

SQ HOLE WASHER

.656 sq id 1.17 pln x .0097 tk

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

3/16" x 1 5/32" long

1шт.

7

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

1шт.

9

80681

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

603108R21

BOTTOM

assembly, feed cup dump

1шт.

14

603178R1

LATCH

bracket bottom dump

1шт.

15

49-36

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

16

432-1248

COTTER PIN,3/16" x 3"

1шт.

17

394818

COTTER PIN,M5 x 25

1шт.

18

N11720

WASHER

square 21/32" id x 1 1/2" od x 3/32" thick

1шт.

18

602106R1

SQ HOLE WASHER

.656 sq id 1.17 pln x .0097 tk

1шт.

19

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

spring 21/32" sq id

1шт.

20

818335C1

COVER ASSY

GRAIN FEED SHUT OFF

1шт.

21

606034R1

GUARD

WINDSHIELD, GRAIN FEED CUP

1шт.

24

91007C1

BAR

FEED SHAFT RH 1995.0 Over All Length

1шт.

7" and 7-1/2" Row Spacing

1шт.

24

90932C1

BAR

FEED SHAFT LH, 2337.5 Over All Length

1шт.

7" and 7-1/2" Row Spacing

1шт.

24

91008C1

BAR

feed shaft 22 x 8 RH

1шт.

24

90933C1

BAR

FEED SHAFT LH, Serial Range: -CKB0030001

1шт.

24

91009C1

BAR

square 5/8" x 75 11/16" long

1шт.

24

90934C1

BAR

square 5/8" x 95 1/4" long

1шт.

24

1279969C1

BAR

FEED SHAFT (17X7)

2шт.

7" and 7-1/2" Row Spacing

1шт.

24

1263965C1

BAR

FEED SHAFT (15X8), Serial Range: -CKB0030001

2шт.

24

1263966C1

BAR

FEED SHAFT (12X10)

2шт.

10" Row Spacing

1шт.

25

816133C1

CHANNEL

feed shaft coupler

1шт.

26

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

28

9628503

NUT,3/8"-16, G5

1шт.

29

90935C3

BOTTOM

grain partition, 26 x 7

1шт.

29

90936C2

ASSEMBLY

SECTION, GRAIN BOTTOM PARTITION (22X8)

1шт.

29

90937C3

ASSEMBLY

SECTION, GRAIN BOTTOM PARTITION (18X10)

1шт.

10" Row Spacing

1шт.

29

1279782C1

BOTTOM

SECTION, GRAIN PARTITION (17X7)

2шт.

7" and 7-1/2" Row Spacing

1шт.

29

1263955C1

BOTTOM

SECTION, GRAIN PARTITION (15X18)

2шт.

8" Row Spacing

1шт.

29

1263956C1

BOTTOM

SECTION, GRAIN PARTITION (12X10)

2шт.

10" Row Spacing

1шт.

30

REF

INSTRUCTION

TUBE Seed

1шт.

31

90987C1

BAR

FEED CUP SPACER FRT

1шт.

32

90988C1

BAR

FEED CUP SPACER RR

1шт.

33

1986019C1

COVER

HOLE

2шт.

34

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

35

80681

LOCK WASHER,5/16"

4шт.

36

9635082

NUT,5/16" - 18, Gr 5

4шт.
