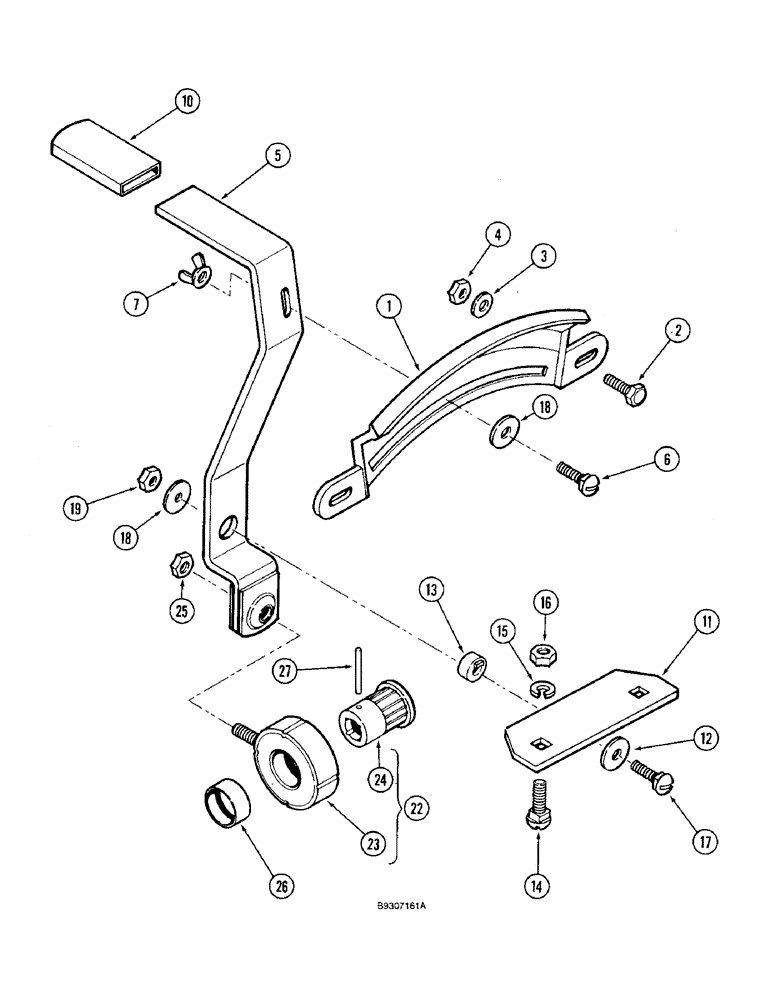

Запчасти Case IH 5400 (9-024) - SEED FEED SHIFTER AND INDICATOR (GRAIN DRILLS BSN CKB0030000) (09) - CHASSIS

1

596907R1

INDICATOR

GRAIN FEED

1шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

3

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

1263998C1

LEVER ASSY.

GRAIN FEED SHIFTER

1шт.

6

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

7

80801

WING NUT

5/16"-18

1шт.

10

842315C1

GRIP

KNOB, LEVER

1шт.

11

1279934C1

SUPPORT

SHIFTER LEVER -BRACKET

1шт.

12

819263C1

WASHER

1 5/8" od x .134" thick

1шт.

13

95889C1

BUSHING

SHIFTER STOP

1шт.

14

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

16

9628503

NUT,3/8"-16, G5

2шт.

17

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

18

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

19

86637931

JAM NUT,Jam, 5/16"-18, G5

2шт.

22

1279109C91

BEARING ASSY

assy square bore pln feed shifter

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING Feed Shifter, Order: 1279109C91 BEARING ASSEMBLY

1шт.

24

1279145C1

SPACER

feed shifter bearing

1шт.

25

88902

NUT,3/8"-16

1шт.

26

609389R1

SPACER

1 3/8"od 1 3/16"id

1шт.

27

438-31220

PIN,3/16" x 1 1/4", Coiled

1шт.
