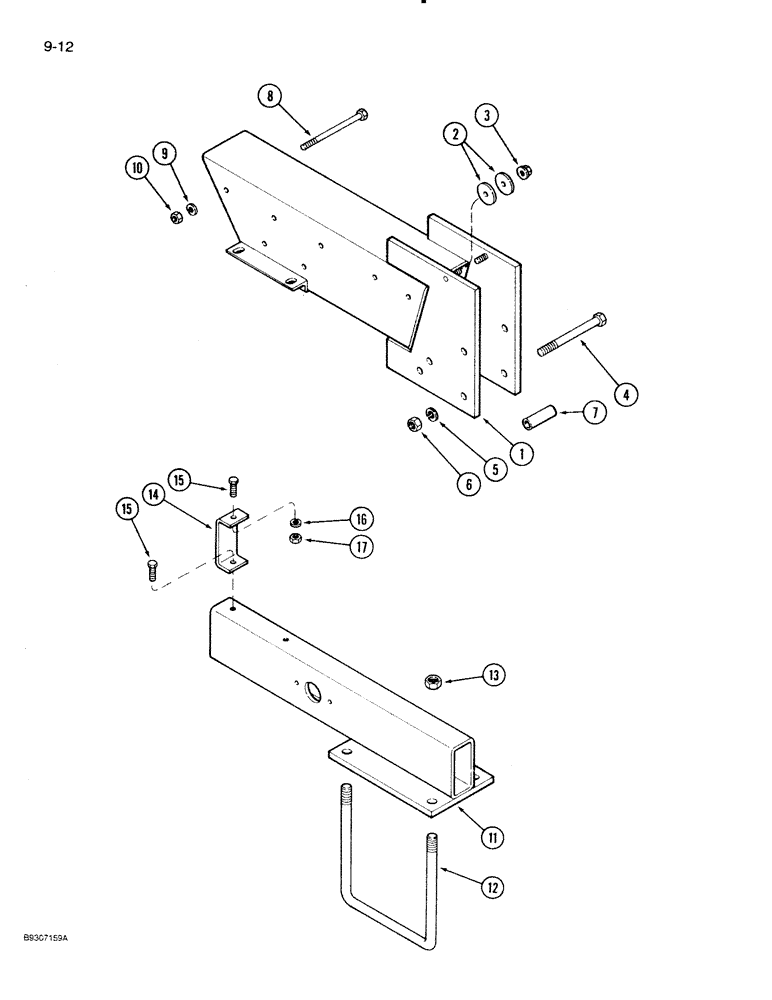

Запчасти Case IH 5400 (9-022) - HOPPER SUPPORT, GRAIN AND FERTILIZER, 15 AND 20 FOOT DRILL (09) - CHASSIS

1

90783C1

BRACKET

center support

1шт.

2

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

4шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

4

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

280431

NUT,1/2"-13, G5

4шт.

7

23885K

SPACER,3/4" Tube x 2 1/16"

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

14шт.

10

9628503

NUT,3/8"-16, G5

14шт.

11

1279858C1

SUPPORT

ASSY, HOPPER

4шт.

Items are used for early production only. Parts are available for service if required.

1шт.

12

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

8шт.

Items are used for early production only. Parts are available for service if required.

1шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

Items are used for early production only. Parts are available for service if required.

1шт.

14

1279610C1

SUPPORT

HOPPER

8шт.

Items are used for early production only. Parts are available for service if required.

1шт.

15

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

16шт.

Items are used for early production only. Parts are available for service if required.

1шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

16шт.

Items are used for early production only. Parts are available for service if required.

1шт.

17

9628503

NUT,3/8"-16, G5

16шт.

Items are used for early production only. Parts are available for service if required.

1шт.
