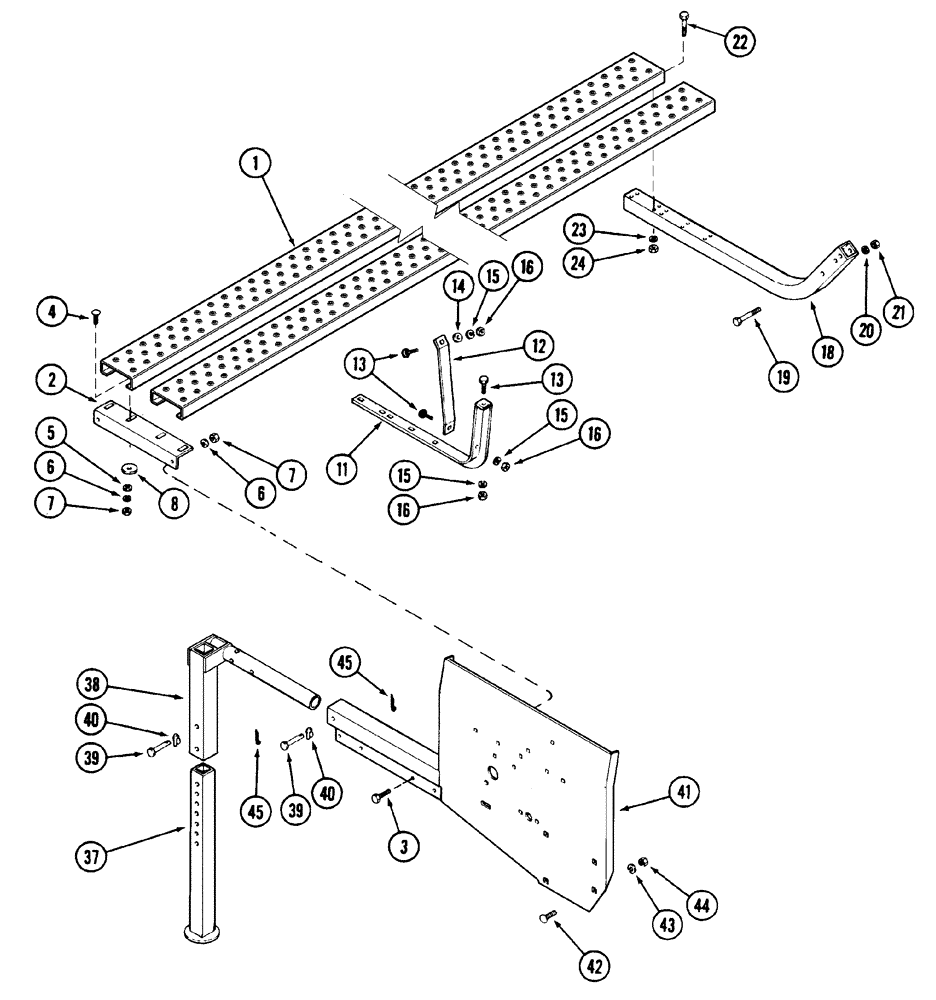

Запчасти Case IH 5400 (9-016) - FOOTBOARD, SUPPORT STAND (GRAIN DRILLS ASN CKB0030001) (09) - CHASSIS

1

365617A2

FOOT REST

section footboard 7'

4шт.

1

365616A2

FOOT REST

section footboard 9' 6"

4шт.

2

365621A2

ANGLE

footboard

3шт.

3

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

4шт.

4

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

16шт.

5

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

16шт.

6

80681

LOCK WASHER,5/16"

20шт.

7

9635082

NUT,5/16" - 18, Gr 5

20шт.

8

495-81122

WASHER,.344" x 1 1/2" x .120"

4шт.

11

365619A2

SUPPORT

footboard

1шт.

12

1279899C1

BRACKET

Brace flat

1шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

16

9628503

NUT,3/8"-16, G5

6шт.

18

365618A2

TUBE,1119, 341 mm Length

tube 2" x 2" x .188 bent

1шт.

19

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

280431

NUT,1/2"-13, G5

1шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

23

80681

LOCK WASHER,5/16"

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

4шт.

37

1279976C2

SUPPORT

lower stand

2шт.

38

355426A1

SUPPORT

upper offset LH

2шт.

38

355428A1

SUPPORT

upper offset RH

2шт.

39

86979987

HEADED PIN,1/2" x 3", G5

4шт.

40

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

41

90818C3

BRACKET

end assembly LH

1шт.

41

90819C3

BRACKET

end assembly RH

1шт.

42

280832

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

8шт.

43

12034871

WASHER

5/8"

8шт.

44

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

45

394818

COTTER PIN,M5 x 25

2шт.
