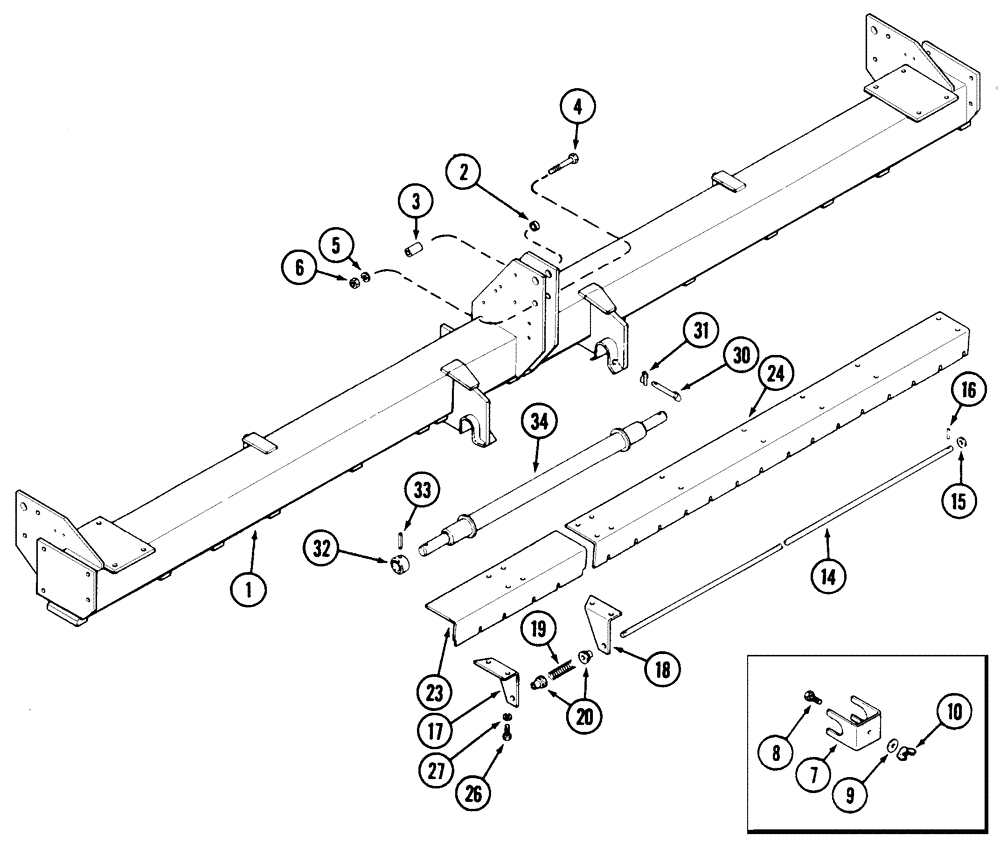

Запчасти Case IH 5400 (9-010) - MAIN FRAME, MULCH-TILL, 10 INCH ROW SPACING (GRAIN DRILLS ASN CKB0030001) (09) - CHASSIS

1

352934A1

FRAME

assembly 15'

1шт.

1a

352935A1

FRAME

assembly 20'

1шт.

2

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

2шт.

3

462425R2

SPACER

mast cat

1шт.

4

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

6

280954

NUT,3/4"-10, G5

1шт.

7

815753C2

SUPPORT

drawbar release

1шт.

8

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

9

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

10

129-410

WING NUT,3/8"-16

1шт.

14

1960419C1

ROD

7/8" x 179 5/8" long

1шт.

14

1960420C1

ROD

7/8" x 239 1/2" long

1шт.

15

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

16

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

2шт.

17

1960421C1

ANGLE

bracket shaft pivot LH

6шт.

18

1960422C1

ANGLE

bracket shaft pivot RH

6шт.

19

16046D

SPRING

C, 3/32" wire 1 1/16"od 4 19/32"long

1шт.

20

1954831C1

BUSHING,22.5mm ID x 34mm OD x 32mm L

.89 id furrow opener

1шт.

23

1973414C1

ANGLE

spacer center

1шт.

23

1973406C1

ANGLE

spacer center

1шт.

24

1973415C1

ANGLE

LH

1шт.

24

1973407C1

ANGLE

spacer furrow opener

1шт.

24

1973416C1

ANGLE

f/o spacer

1шт.

24

1973408C1

ANGLE

furrow opener spacer

1шт.

26

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

24шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

24шт.

30

113225C1

PIN

ASSY

2шт.

31

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

2шт.

32

401233R1

COLLAR

thrust

2шт.

33

86624095

PIN,12.7mm OD x 50.8mm L

2шт.

34

137084C1

SPINDLE

1шт.

34

137083C1

SPINDLE

1шт.

34

490156R1

SPINDLE

ASSY, CAT III W/CAT II SPREAD

1шт.
