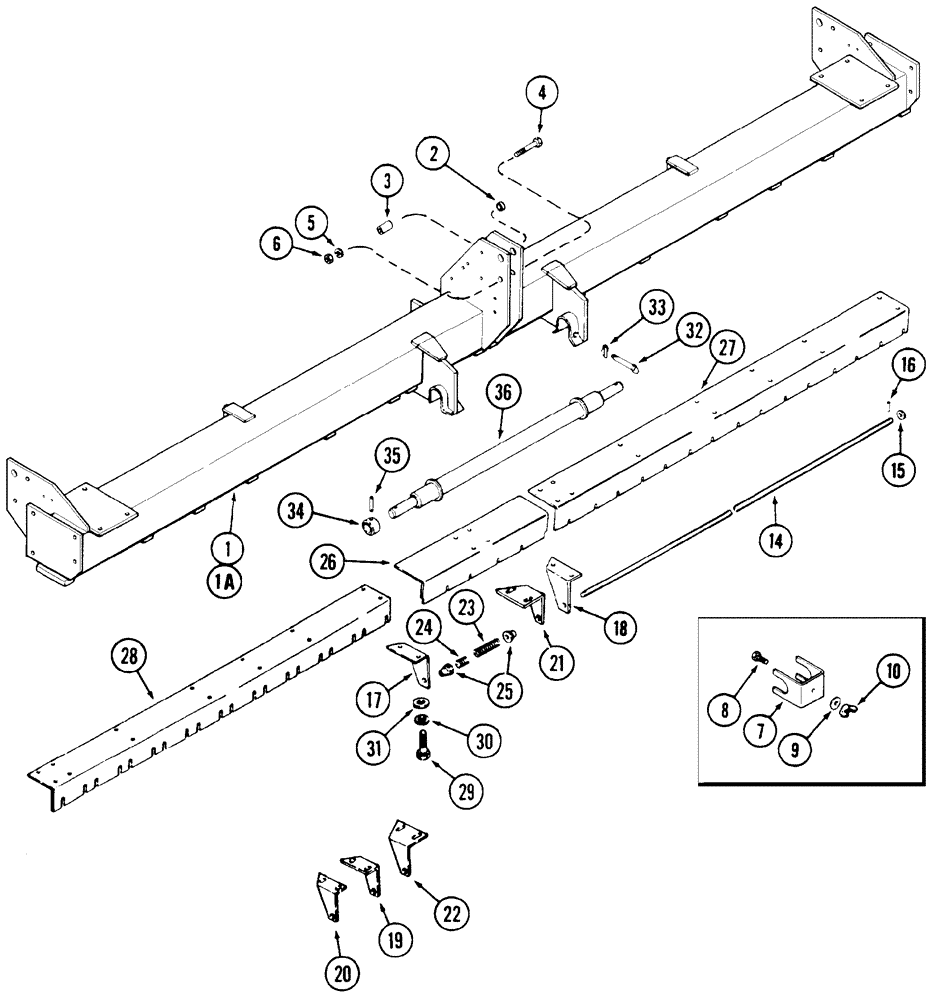

Запчасти Case IH 5400 (9-008) - MAIN FRAME, MULCH-TILL, 7-1/2 INCH ROW SPACING (GRAIN DRILLS ASN CKB0030001) (09) - CHASSIS

1

352934A1

FRAME

assembly 15'

1шт.

1a

352935A1

FRAME

assembly 20'

1шт.

2

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

2шт.

3

462425R2

SPACER

mast cat

1шт.

4

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

6

280954

NUT,3/4"-10, G5

1шт.

7

815753C2

SUPPORT

drawbar release

1шт.

8

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

9

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

10

129-410

WING NUT,3/8"-16

1шт.

14

1960419C1

ROD

7/8" x 179 5/8" long

1шт.

14

1960420C1

ROD

7/8" x 239 1/2" long

1шт.

15

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

16

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

2шт.

17

1960421C1

ANGLE

bracket shaft pivot LH

1шт.

18

1960422C1

ANGLE

bracket shaft pivot RH

1шт.

19

105821A1

ANGLE

pivot shaft LH

1шт.

20

1986268C1

ANGLE

bracket shaft pivot RH

1шт.

21

1986079C2

ANGLE

bracket shaft pivot LH

4шт.

22

1986080C2

ANGLE

bracket shaft pivot RH

4шт.

23

16046D

SPRING

C, 3/32" wire 1 1/16"od 4 19/32"long

22-26шт.

24

1969125C1

SPRING

C .08 wire x 1.07 od x 1.98 long

4-12шт.

25

1954831C1

BUSHING,22.5mm ID x 34mm OD x 32mm L

.89 id furrow opener

48-64шт.

26

106656A1

ANGLE

spacer gauge 15' & 20' 7 1/2" spacing

1шт.

26

106656A1

ANGLE

spacer gauge 15' & 20' 7 1/2" spacing

1шт.

27

106659A1

ANGLE

furrow opener spacer LH

1шт.

27a

106657A1

ANGLE

spacer gauge LH furrow opener

1шт.

28

106660A1

BOOT

furrow opener spacer RH

1шт.

28a

106658A1

ANGLE

spacer gauge RH furrow opener

1шт.

29

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

24шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

24шт.

31

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

24шт.

32

113225C1

PIN

ASSY

2шт.

33

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4", Klik

2шт.

34

401233R1

COLLAR

thrust

2шт.

35

86624095

PIN,12.7mm OD x 50.8mm L

2шт.

36

137084C1

SPINDLE

1шт.

36

137083C1

SPINDLE

1шт.

36

490156R1

SPINDLE

ASSY, CAT III W/CAT II SPREAD

1шт.
