Запчасти Case IH 5400 (8-36) - TRANSPORT LIFT CYLINDER - 142080A1, 4-1/2 INCH (114 MM) ID (08) - HYDRAULICS

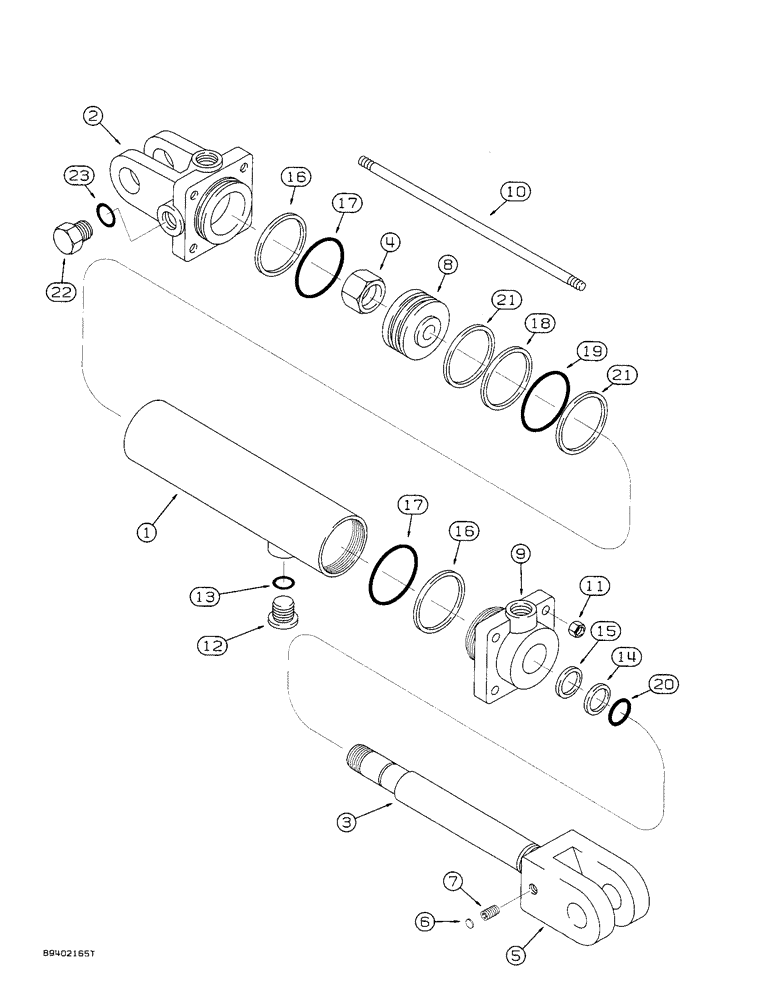

Схема запчастей Case IH 5400 - (8-36) - TRANSPORT LIFT CYLINDER - 142080A1, 4-1/2 INCH (114 MM) ID (08) - HYDRAULICS
22
16
11
21
15
5
4
2
12
18
7
17
17
21
13
9
19
3
8
10
20
6
1
23
16
14

Артикул

Название

Примечание

Количество

0

142080A1

CYLINDER ASSY.

4.5 DIA. X 16 STROKE

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE Cylinder

1шт.

2

1954155C1

JACK HEAD

REAR

1шт.

3

143211A1

PISTON ROD

1шт.

4

143208A1

LOCK NUT

self-locking

1шт.

5

143213A1

RAM FORK

CLEVIS, CYL

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

7

87023136

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

8

1954189C1

JACK PISTON

HYD CYL

1шт.

9

143212A1

CYLINDER END CAP

HEAD

1шт.

10

92873C1

THREADED ROD,3/4" - 10 x 21.812"

BOLT, TIE

4шт.

11

86632556

JAM NUT,Jam, 5/8"-11, G5

4шт.

12

143204A1

PLUG

hex socket, special, 3/4"-16 o-ring boss

1шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Item included in seal repair kit 143215A1

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER Piston Rod

1шт.

Item included in seal repair kit 143215A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL Piston Rod

1шт.

Item included in seal repair kit 143215A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING Backup, End Cap and Gland O-Ring

2шт.

Item included in seal repair kit 143215A1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING End Cap and Gland

2шт.

Item included in seal repair kit 143215A1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL Piston

1шт.

Item included in seal repair kit 143215A1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING Piston Large

1шт.

Item included in seal repair kit 143215A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING Piston Small

1шт.

Item included in seal repair kit 143215A1

1шт.

21

NSS

NOT SOLD SEPARAT

RING Wear, Piston

2шт.

Item included in seal repair kit 143215A1

1шт.

22

86511868

PLUG,3/4" - 16 JIC

1шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Item included in seal repair kit 143215A1

1шт.

25

143215A1

SEAL KIT

For Old (1142080A1) (Includes All Items Marked)

1шт.

26

84135929

SEAL KIT

For New (87403330) (Includes All Items Marked)

1шт.
