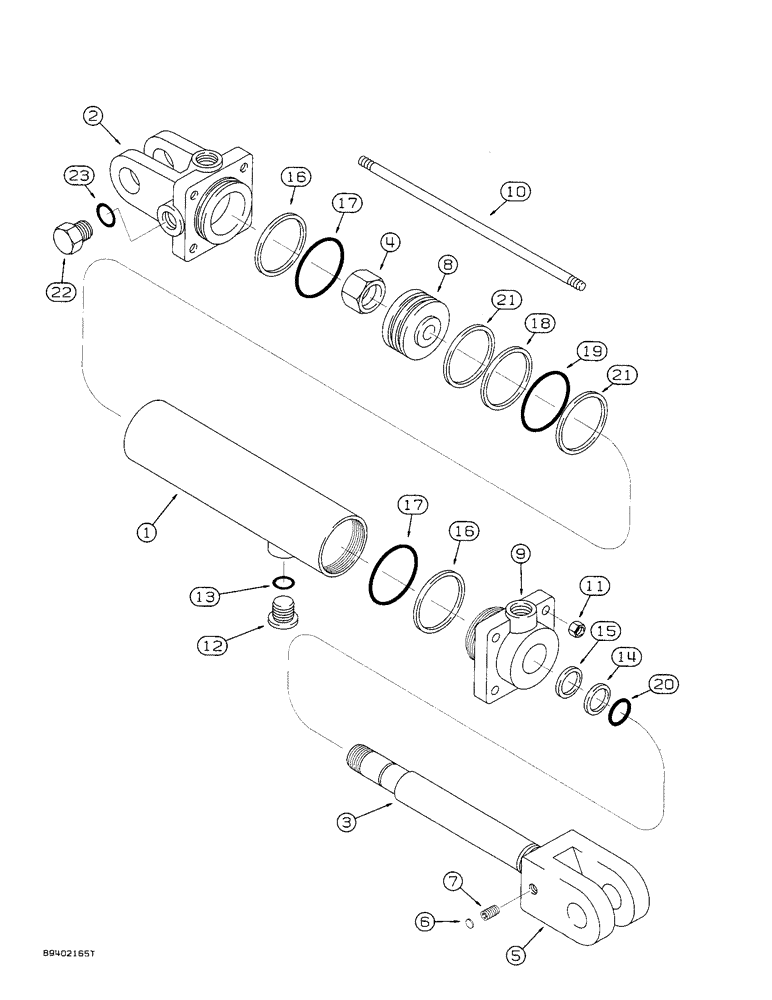

Запчасти Case IH 5400 (8-34) - TRANSPORT LIFT CYLINDER - 142081A2, 4 INCH (102 MM) ID (08) - HYDRAULICS

0

142081A2

CYLINDER ASSY.

4.0 X 16 STROKE

1шт.

1

143201A1

HYD CYL SLEEVE

1шт.

2

1272919C1

CYLINDER HEAD

rear

1шт.

3

143202A1

SHAFT

CYL

1шт.

4

281010

LOCK NUT,7/8"-14, GC

1шт.

5

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

7

87023136

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

8

92521C1

PISTON

hyd cylinder

1шт.

9

80559C1

CYLINDER END CAP

HEAD, HYD FRONT

1шт.

10

145251C1

THREADED ROD,5/8" - 11 x 539mm

bolt hyd cylinder tie

4шт.

11

86632556

JAM NUT,Jam, 5/8"-11, G5

4шт.

12

143204A1

PLUG

hex socket, special, 3/4"-16 o-ring boss

1шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Item included in seal repair kit 143205A1

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER Piston Rod

1шт.

Item included in seal repair kit 143205A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL Piston Rod

1шт.

Item included in seal repair kit 143205A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING Back-Up, End Cap and Gland O-Ring

2шт.

Item included in seal repair kit 143205A1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING End Cap and Gland

2шт.

Item included in seal repair kit 143205A1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL Piston

1шт.

Item included in seal repair kit 143205A1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING Piston Large

1шт.

Item included in seal repair kit 143205A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING Piston Small

1шт.

Item included in seal repair kit 143205A1

1шт.

21

143203A1

SEALING RING

SEAL WASHER CYL WEAR

2шт.

22

86511868

PLUG,3/4" - 16 JIC

1шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Item included in seal repair kit 143205A1

1шт.

100

143205A1

SEAL KIT

kit

1шт.
