Запчасти Case IH 5400 (8-32) - UNDERSLUNG HITCH CYLINDER - 140281A1, 2-1/2 INCH (64 MM) ID (08) - HYDRAULICS

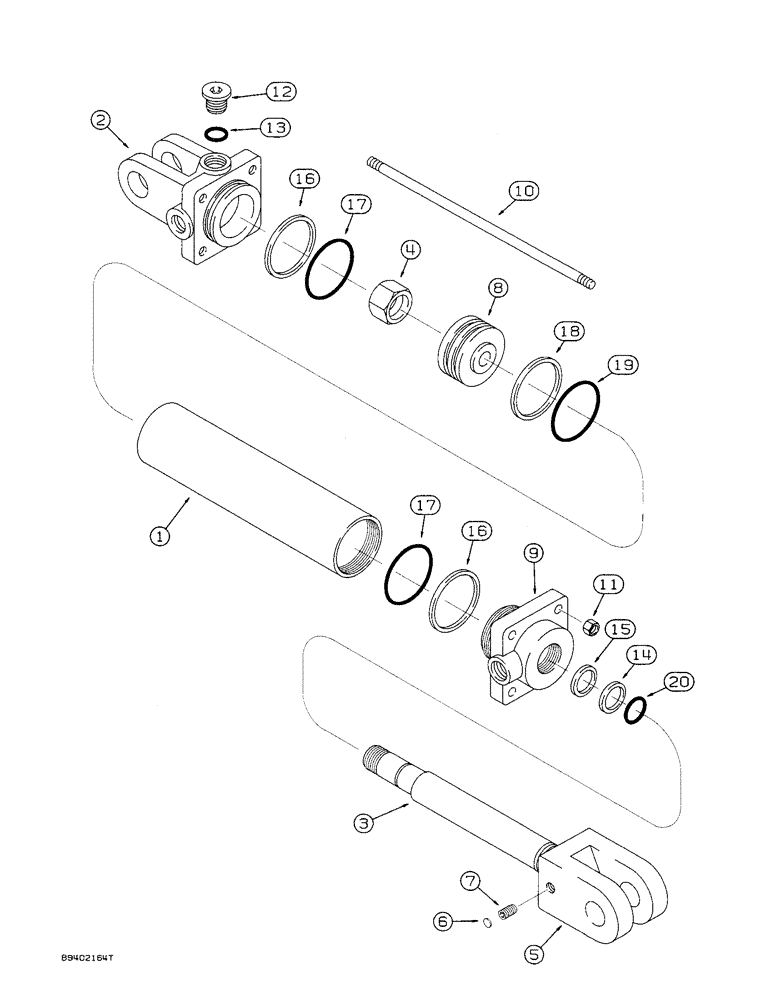

Схема запчастей Case IH 5400 - (8-32) - UNDERSLUNG HITCH CYLINDER - 140281A1, 2-1/2 INCH (64 MM) ID (08) - HYDRAULICS
1
18
20
13
9
3
10
14
7
11
4
17
16
5
17
2
19
16
15
6
12
8

Артикул

Название

Примечание

Количество

0

140281A1

CYLINDER ASSY.

2-1/2 X 8

2шт.

1

NSS

NOT SOLD SEPARAT

Tube Cylinder

1шт.

2

1272766C1

HEAD

hyd cylinder rear

1шт.

3

145231C1

PISTON ROD

hyd cylinder

1шт.

4

281010

LOCK NUT,7/8"-14, GC

1шт.

5

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

7

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

8

145221C3

PISTON

hyd cylinder

1шт.

9

1272767C1

CYLINDER END CAP

head, hyd front

1шт.

10

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

bolt, hyd cylinder tie

4шт.

11

280717

NUT,7/16"-14, G5

4шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Item included in seal repair kit 79975C2

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER Piston Rod

1шт.

Item included in seal repair kit 79975C2

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL Piston Rod

1шт.

Item included in seal repair kit 79975C2

1шт.

16

NSS

NOT SOLD SEPARAT

RING Backup, End Cap and Gland O-Ring

2шт.

Item included in seal repair kit 79975C2

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING End Cap and Gland

2шт.

Item included in seal repair kit 79975C2

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL Piston

1шт.

Item included in seal repair kit 79975C2

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING Piston Large

1шт.

Item included in seal repair kit 79975C2

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING Piston Small

1шт.

Item included in seal repair kit 79975C2

1шт.

100

79975C2

SEAL KIT

kit, hyd cylinder service

1шт.

Выбрано товаров: 30
