Запчасти Case IH 5400 (8-30) - HYDRAULIC SYSTEM, PRESSURE TO TRANSPORT LIFT CYLINDERS (08) - HYDRAULICS

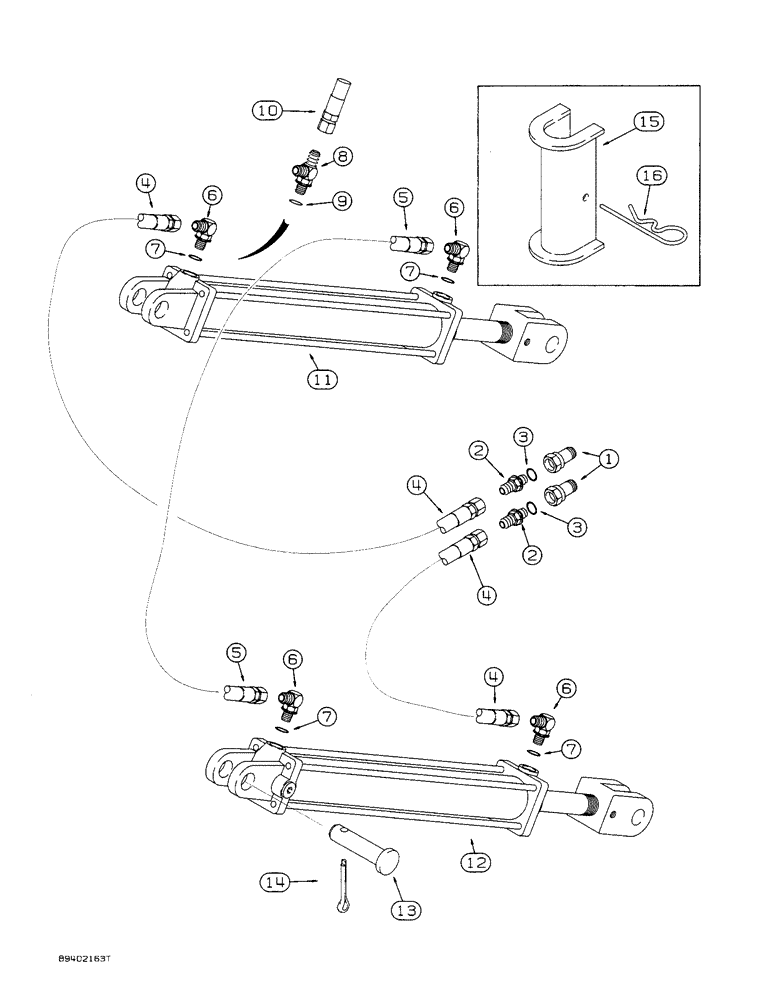

Схема запчастей Case IH 5400 - (8-30) - HYDRAULIC SYSTEM, PRESSURE TO TRANSPORT LIFT CYLINDERS (08) - HYDRAULICS
3
11
9
3
14
2
4
2
4
16
7
5
6
6
13
1
5
10
12
7
6
15
6
7
8
4
7
4

Артикул

Название

Примечание

Количество

1

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

113710A1

HOSE

pressure 1/2" x 7495 mm

2шт.

5

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

6

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

1/2" x 180" fl

1шт.

11

142080A1

CYLINDER ASSY.

4.5 DIA. X 16 STROKE

1шт.

12

142081A2

CYLINDER ASSY.

4.0 X 16 STROKE

1шт.

13

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

4шт.

14

87399

COTTER PIN,1/2 x 3 Bolt

4шт.

15

142541A1

TUBE SPACER

CHANNEL, TRANSPORT LOCK

2шт.

15

194271A1

PACKAGE

STOP HYD. CYL. 1-3/4" ROD

2шт.

15

194272A1

PACKAGE

STOP HYD. CYL. 2" ROD

2шт.

16

142542A1

SPLIT PIN/SAFETY PIN

2шт.

Выбрано товаров: 19
