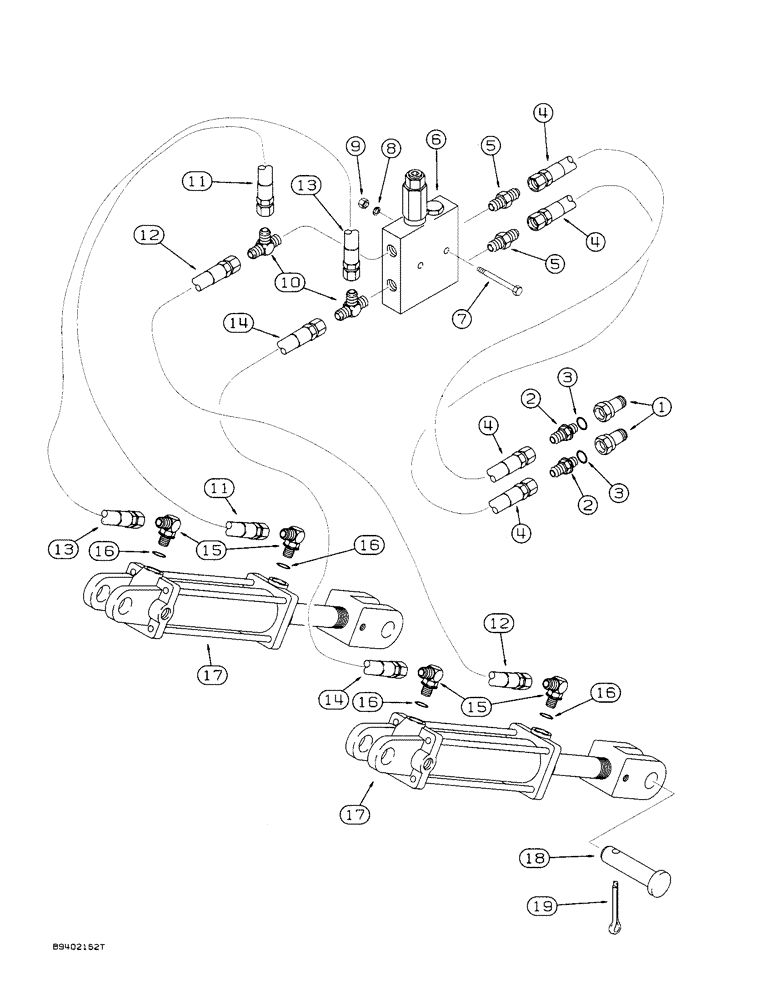

Запчасти Case IH 5400 (8-28) - HYDRAULIC SYSTEM, PRESSURE TO PILOT CHECK VALVE, AND UNDERSLUNG HITCH CYLINDERS (08) - HYDRAULICS

1

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

2

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

2шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

2шт.

6

142398A1

VALVE

DUAL PILOT CHECK W/RELIEF

1шт.

7

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

9

9628503

NUT,3/8"-16, G5

2шт.

10

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

2шт.

11

1254576C2

HOSE ASSY.

1/4" x 43" fl

1шт.

12

1254527C2

HYDRAULIC HOSE

1/4" x 37" fl

1шт.

13

1969386C1

HOSE

1/4 X 23 IN.

1шт.

14

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

1шт.

15

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

140281A1

CYLINDER ASSY.

2-1/2 X 8

2шт.

18

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

4шт.

18

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

4шт.

19

87399

COTTER PIN,1/2 x 3 Bolt

4шт.
