Запчасти Case IH 5400 (8-22) - MARKER LIFT CYLINDER, 87430675, 20 FOOT DRILL (5TH DATE RANGE) (08) - HYDRAULICS

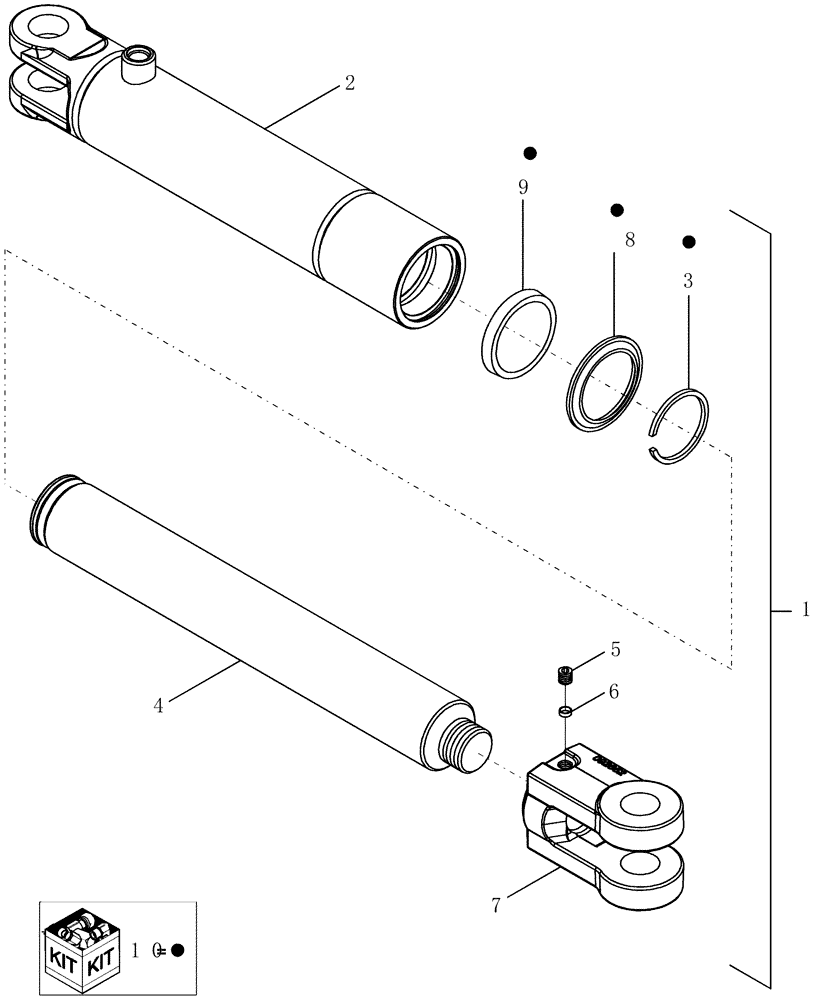

Схема запчастей Case IH 5400 - (8-22) - MARKER LIFT CYLINDER, 87430675, 20 FOOT DRILL (5TH DATE RANGE) (08) - HYDRAULICS
3
10
8
7
1
2
6
4
9
5

Артикул

Название

Примечание

Количество

1

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8", Start Year: 01-AUG-03, Start Serial: CBJ0018326

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE, HYD CYLINDER W/CLEVIS

1шт.

3

87409509

RING

retaining, hyd cylinder

1шт.

Included in repair kit 87430676

1шт.

4

87409505

PISTON ROD

2" Nitrosteel

1шт.

5

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

7

87409500

CLEVIS

cylinder rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL WIPER ROD

1шт.

Included in repair kit 87430676

1шт.

9

NSS

NOT SOLD SEPARAT

HALLITE ROD SEAL

1шт.

Included in repair kit 87430676

1шт.

10

87430676

SEAL KIT

2" x 8"

1шт.

Выбрано товаров: 13
