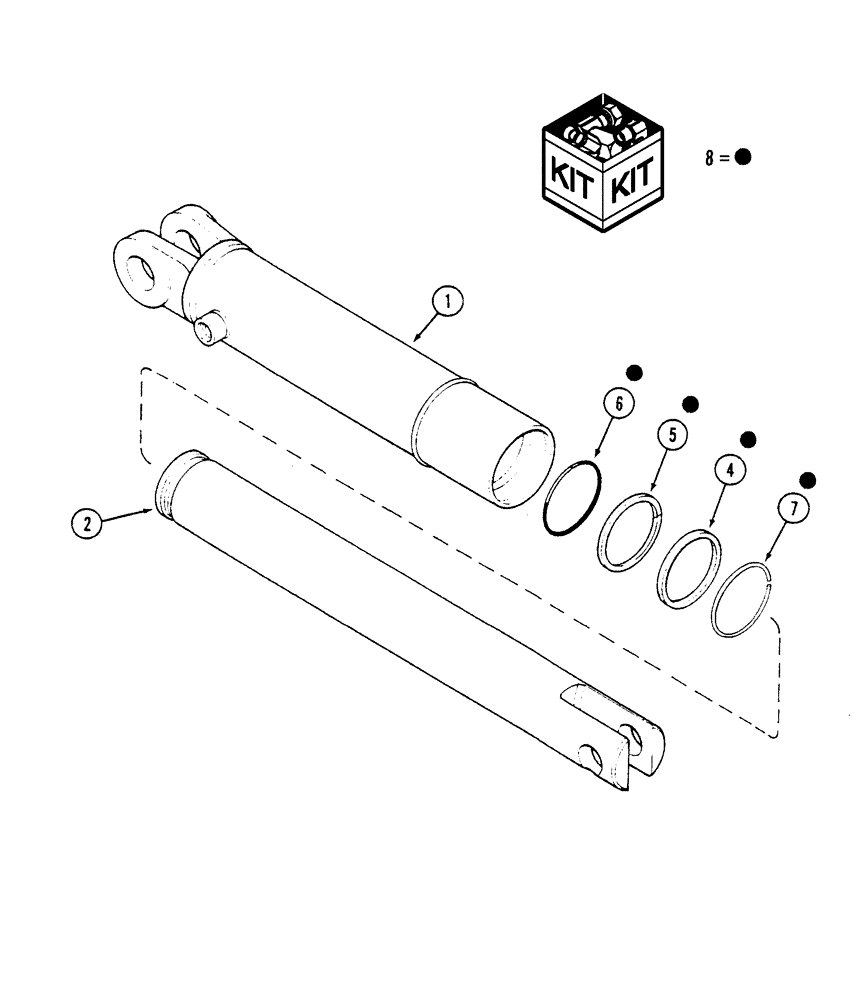

Запчасти Case IH 5400 (8-14) - MARKER LIFT CYLINDER, 145622C91, 20 FOOT DRILL (1ST DATE RANGE) (08) - HYDRAULICS

0

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

2" x 8"

1шт.

1

145621C1

HYD TUBE

cylinder

1шт.

2

149611C1

PISTON ROD

1шт.

4

59741C1

WIPER SEAL

seal, rod

1шт.

Included in repair kit 145682C1

1шт.

5

387399R2

RING

back-up

1шт.

Included in repair kit 145682C1

1шт.

6

86632689

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2" x 2 3/8" class 6

1шт.

Included in repair kit 145682C1

1шт.

7

145628C1

RING

rod retainer

1шт.

Included in repair kit 145682C1

1шт.

8

145682C1

SEALING RING

cylinder

1шт.
