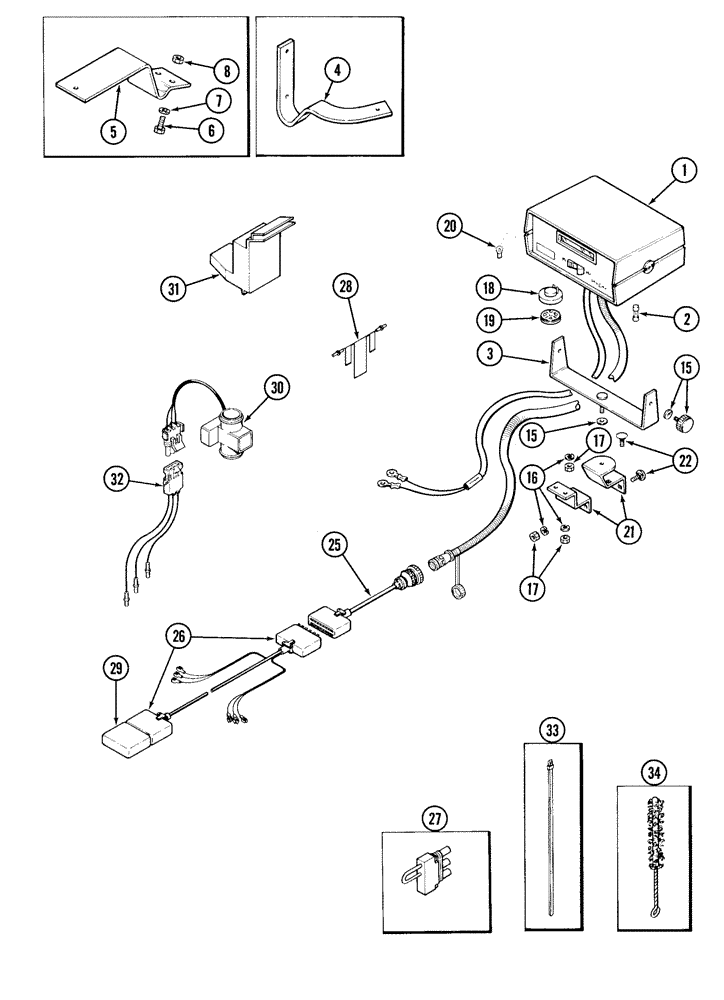

Запчасти Case IH 5400 (4-12) - PLANTING MONITOR, SEED FLOW II (04) - ELECTRICAL SYSTEMS

1

245821C92

CONTROL MONITOR

(RENEWED) SEED FLOW II

1шт.

1

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Instrument Cluster

1шт.

1

126420A1C

CORE-MONITOR

Return Number, Monitor

1шт.

2

223-38

FUSE,3 Amp, Type 3AG

1шт.

3

1261523C91

BRACKET

MOUNTING

1шт.

4

1960456C1

BRACKET

MOUNTING - 7100

1шт.

5

90905C2

BRACKET, SUPPORTING

MOUNTING - CASE

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

7

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

1261524C91

REPAIR KIT

PACKAGE, KNOBS

1шт.

16

80681

LOCK WASHER,5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

1261548C1

ALARM

buzzer

1шт.

19

1261549C1

DAMPER

ALARM

1шт.

20

58554C1

BULB,C2F, #1892, 14V

1шт.

21

1261522C91

BRACKET, SUPPORTING

MOUNTING - IH

1шт.

22

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

25

90925C1

CABLE

ADAPTER

1шт.

25

133896C95

HARNESS

CABLE, EXTENSION (Used With Large 4 Wheel Drive Tractors)

1шт.

26

819974C91

HARNESS

wiring

1шт.

26

819975C91

HARNESS

monitor, 10 contact plug

1шт.

27

245617C1

CONNECTOR,ELECTRIC

CABLE, SHORTING PLUG

2шт.

28

58557C1

ELECTRICAL WIRE

WIRE SHORTENING

1шт.

29

128813C1

CONNECTOR,ELECTRIC

PLUG, MALE SOCKET

1шт.

30

819971C92

SENSOR

high rate

1шт.

31

841109C1

SHIELD

LIGHT

1шт.

32

245746C1

HARNESS

ADAPTER, SEED SENSOR

1шт.

33

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

7шт.

33

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

34

128817C1

BRUSH, COMMUTATOR

BRUSH SENSOR CLEANING

1шт.
