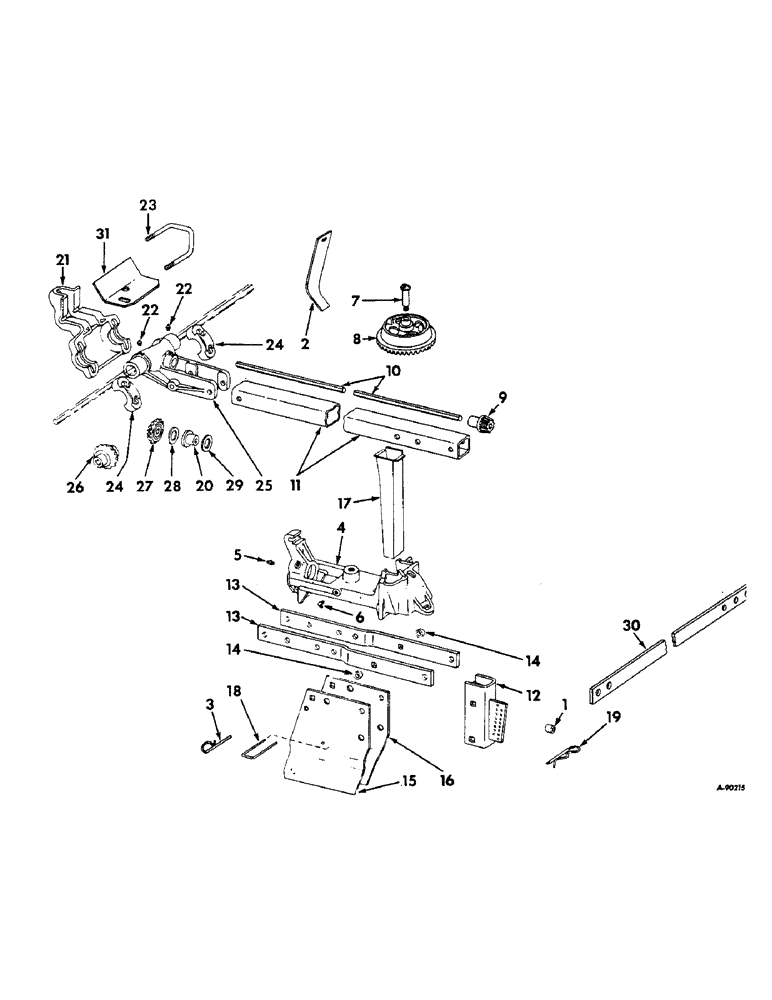

Запчасти Case IH 54-SERIES (W-07) - DRILL UNIT

1

586329R1

SPACER,3/4" Tube x 13/16"

jockey bar

12шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach

12шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

2

472115R1

SUPPORT

COVER, front valve

12шт.

3

471207R1

PIN

quick attachable cotter

12шт.

4

472301R3

BRACKET, hopper

12шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

18898R1

BOLT, 5/16 x 2-1/4 C-Z sq-hd mach

12шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

12шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing

12шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 NF drive-type STR lub

12шт.

6

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 NF-45 deg angle lub

12шт.

7

479132R1

BOLT,1/2" - 13 x 2 23/64"

ring gear hub

12шт.

8

472121R1

GEAR WHEEL

GEAR, ring, 42 T

12шт.

9

472122R1

GEAR

drive, 10 T

12шт.

10

472123R2

ROD

SHAFT, drive

12шт.

615132R1

WASHER

21/32 x 1-1/8 x 18 ga (or as required)

8шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

24шт.

13079R1

PIN, 1/8 x 1-1/8 self opening cot.

24шт.

11

472233R1

DRAWBAR, unit

12шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

12

472234R91

BRACKET ASSY

12шт.

13

472237R1

RAIL, drawbar

24шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

14

472104R1

BUSHING

press wheel frame

24шт.

15

472238R4

PLATE, rail side sheet

12шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

16

472239R4

PLATE, rail side right

12шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

17

472240R1

TUBE

drill

12шт.

18

472241R1

ANCHOR, seed tube

12шт.

19

473865R91

LINCH PIN

PIN ASSY, depth stop

12шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

12шт.

20

473850R1

BUSHING

BEARING, insert

12шт.

21

472318R1

BRACKET

drawbar hd

12шт.

22

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 drive-type STR lub

24шт.

23

525018R1

BOLT,U, 5/8" - 11 x 5 1/8"

head bracket U

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

24шт.

24

472319R1

CAP, unit drawbar bracket

24шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 C-Z hex-hd mach

48шт.

120384

WASHER,1/2"

LOCK, 1/2"

48шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

48шт.

25

487611R1

BRACKET, unit drawbar

12шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 hex-hd mach

12шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

26

472321R2

GEAR

seed drive shaft, 18T

12шт.

27

472322R1

GEAR

seed shaft, 18 T

12шт.

28

472323R1

WASHER

gear wear

24шт.

29

477313R1

WASHER

WASHER, gear wear

24шт.

30

487612R1

BAR, jockey

10шт.

31

487613R1

SHIELD, miter gear

12шт.
