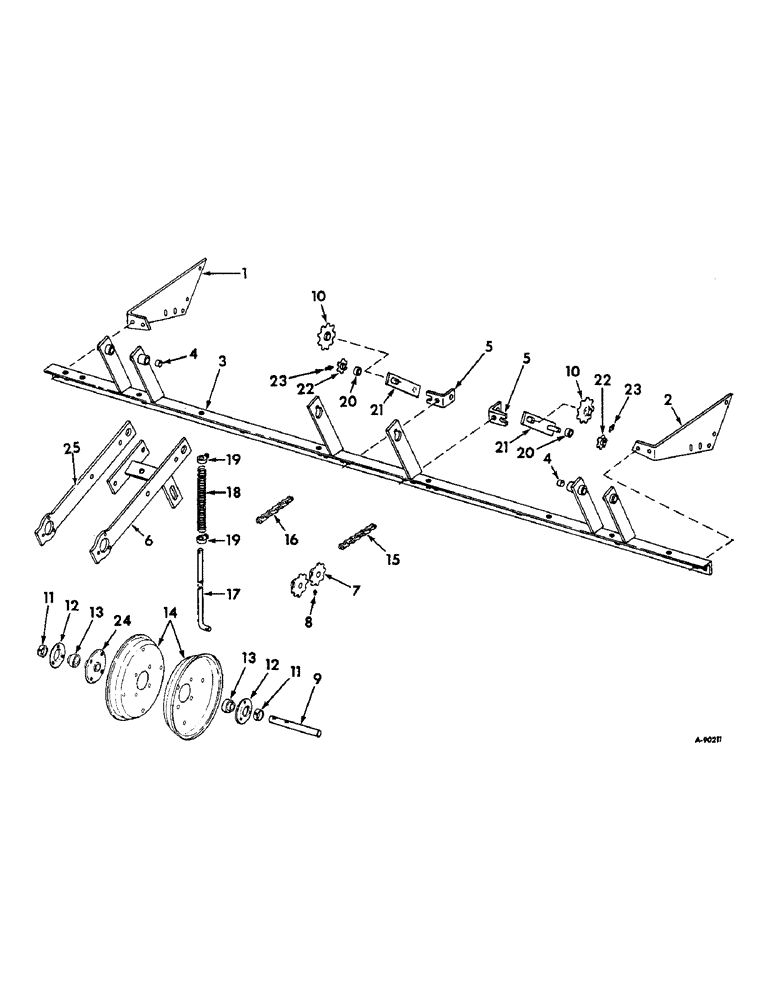

Запчасти Case IH 54-SERIES (W-05) - DRIVE FRAME

1

480145R1

PLATE, lift angle left

4шт.

2

480146R1

PLATE, lift angle right

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

8шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

3

487590R1

ANGLE ASSY, lift rod

2шт.

4

487667R1

BUSHING, main drive

8шт.

5

487629R1

ANGLE, tightener bracket

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

487594R1

FRAME ASSY, wheel left

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

6

487595R1

FRAME ASSY, wheel right

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

7

527070R1

SPROCKET ASSY.

SPROCKET, idler, 8 T

4шт.

8

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive-type STR lub

4шт.

9

487600R1

PIN, drive wheel

4шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 std-hd

4шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

4шт.

10

487603R1

SPROCKET, main drive, 9 T

4шт.

11

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

brg locking

8шт.

12

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGE, brg

8шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

120376

NUT,5/16"-18, G5

24шт.

13

471895R91

BALL BEARING

drive wheel ball

8шт.

14

517239R1

RIM, drive wheel

8шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

120376

NUT,5/16"-18, G5

16шт.

15

CHAIN, main drive upper, use 39 links of 1-1/4 in. extended agricultural pitch roller chain from a 10 ft roll marked 569089R91, 1 connecting link 456980R1 and 2 offset links 456929R91

1шт.

16

CHAIN, main drive lower, use 71 links of 1 in. extended agricultural pitch roller chain from 10 ft roll marked 569088R91 1 connecting link 571113R91, and 5 offset links 457114R91

1шт.

17

487605R1

ROD, pressure

4шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

8шт.

18

524997R1

SPRING

4шт.

19

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, locking

8шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

8шт.

20

622567R1

WASHER

BUSHING, chain tightener

2шт.

21

487630R1

ARM ASSY, chain tightener

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

22

472344R1

SPROCKET

idler 6 T

4шт.

23

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive-type STR lub, idler sprocket

4шт.

24

471844R1

HUB, drive wheel

4шт.

25

487596R1

SUPPORT, drive wheel rail

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

524666R1

TYRE/TIRE

TIRE, 4 x 16 zero pressure

4шт.
