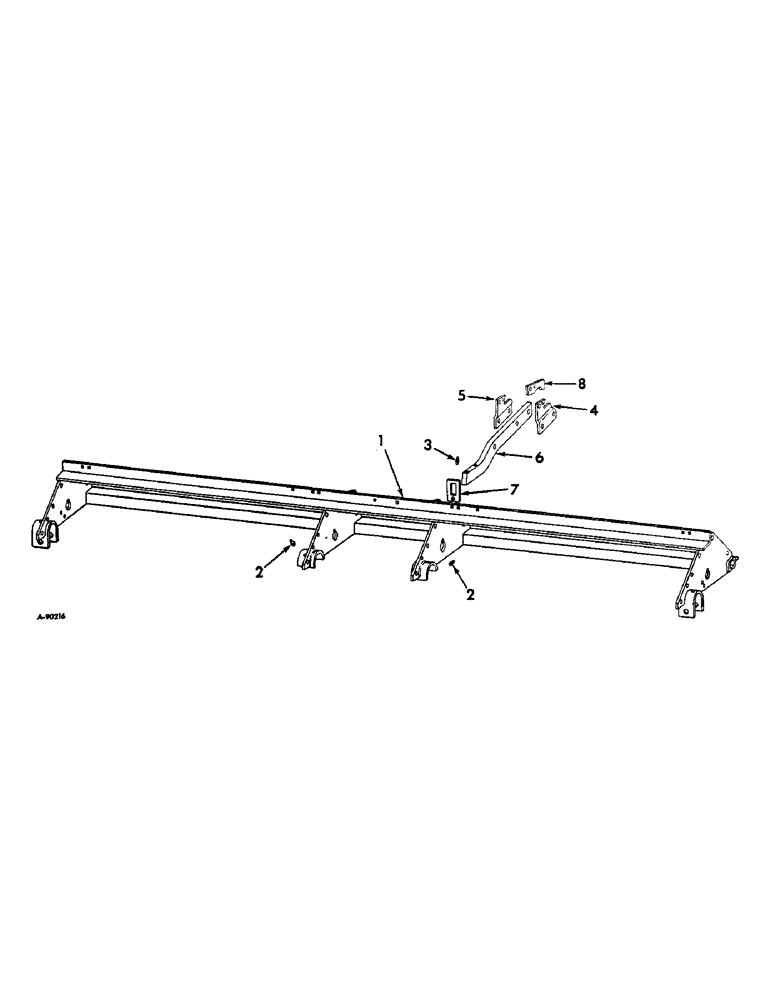

Запчасти Case IH 54-SERIES (W-02) - MAIN FRAME AND CYLINDER BRACKET

1

487578R1

FRAME ASSY, main

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

8шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

4шт.

2

17238R91

LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg

FITTING, 1/4-28 NS 3/4, 65 deg lub, support brg

8шт.

3

66584D

FITTING

3/16 drive-type str lub, cyl bracket

8шт.

4

472313R1

SUPPORT, cyl left

2шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 C-Z hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

5

472314R1

SUPPORT, cyl right

2шт.

Q5137

AXLE PIN

PIN, 1/2 x 1-3/8 std-hd

2шт.

13081R1

Pin, Split (Cotter), 3/16" x 1 1/8", self-opening 3/16" x 1 1/8"

2шт.

6

472311R1

BRACKET, cyl

2шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

472315R1

ANCHOR, cyl bracket

2шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

472316R1

SUPPORT

RETAINER, cyl

2шт.
