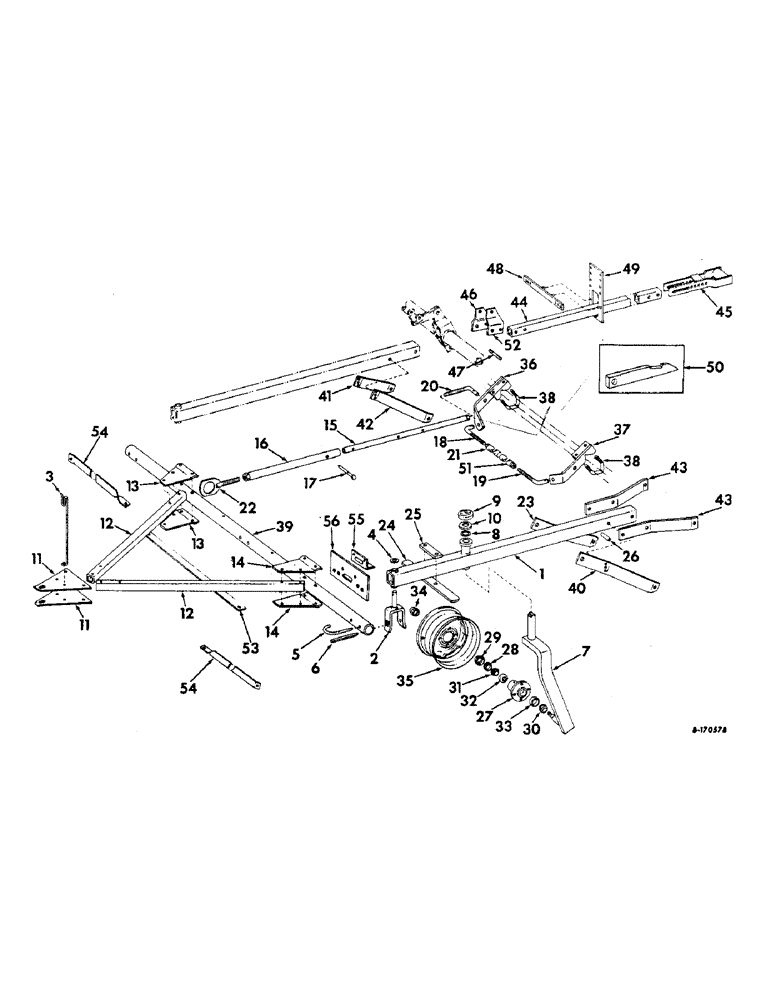

Запчасти Case IH 54-SERIES (W-25) - DUPLEX HITCH

1

487494R21

TONGUE ASSY, hitch

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

66584D

FITTING

3/16 drive-type STR lub

2шт.

2

487497R1

YOKE ASSY

2шт.

3

651793R1

SUPPORT

hydraulic hose

1шт.

4

483587R1

WASHER

4шт.

489059R1

PIN

2шт.

648002

KNIFE

1/8" x 3/4"

4шт.

5

487500R1

ROD

2шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

6

487501R1

PIN

2шт.

473865R91

LINCH PIN

PIN, quick attachable cot.

2шт.

616255R1

LOCK PIN,1/4" x 1 5/8", Slotted

Pin, 1/4" x 1 5/8", Slotted

2шт.

7

487502R1

AXLE ASSY, wheel

2шт.

8

462997R1

WASHER

wear

2шт.

9

480659R1

CAP, axle

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

2шт.

615089R1

WASHER, 17/32 x 1-3/4 x 16 ga

2шт.

10

480660R1

WASHER, caster wheel rubber

2шт.

11

490049R1

SUPPORT, hitch arm, replaces support 487483R1

2шт.

12

490050R1

PIPE, replaces pipe 487484R1

2шт.

271573

BRACKET

SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 C-Z hex-hd cap

7шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

21453R1

PIN, 1 x 4-1/2 std-hd

1шт.

473865R91

LINCH PIN

PIN, quick attachable cot.

1шт.

13

490051R1

SUPPORT, arm LH, replaces support 487486R1

2шт.

14

490052R1

SUPPORT, arm RH, replaces support 487487R1

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

15

490053R1

TUBE ASSY, inside, replaces tube 487488R1

2шт.

16

487490R2

TUBE ASSY

2шт.

17

487492R1

PIN, handle

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

18

490057R1

ROD

connecting, replaces rod 487493R1

1шт.

426899

NUT,Jam, 1"-8, G5

1-8 C-Z hex. jam

3шт.

19

490058R1

ROD

connecting, replaces rod 487505R1

1шт.

20

487506R2

ROD, connecting

2шт.

473865R91

LINCH PIN

PIN, quick attachable cot.

4шт.

21

490059R1

PIPE ASSY, inside, replaces turnbuckle 480249R1

1шт.

66584D

FITTING

3/16 drive type STR lub

6шт.

22

487507R1

BRACKET ASSY

2шт.

488485R1

WASHER

4шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

23

487514R1

SUPPORT, tie tongue lower left

1шт.

24

487510R1

BAR, stabilizer hitch

1шт.

25

487511R1

BAR

1шт.

215723

BOLT,Hex, 1/2" - 13 x 5 3/4", Gr 5

SCREW, 1/2-13 x 5-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

26

487636R1

SPACER

2шт.

27

472220R11

HUB

W/SET SCREW, wheel

2шт.

443804

SCREW, 1/4-28 x 1/4 C-Z hdls slt-ov-pt set

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF STR lub

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical hd

8шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

69442D

NUT

SLT hex.

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

28

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

29

472222R1

SLEEVE

oil seal wear

2шт.

30

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

30

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

31

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

32

651817R1

BEARING CUP

BEARING, wheel hub inner cup

2шт.

33

651814R1

BEARING CUP

BEARING, outer cup

2шт.

34

651194R1

CAP

wheel brg hub

2шт.

35

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

36

487528R2

SUPPORT ASSY, LH

1шт.

37

487529R2

SUPPORT ASSY, RH

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

38

479885R1

BOLT, U

2шт.

39

487513R1

TUBE, hitch drawbar

1шт.

40

487515R1

SUPPORT, tie tongue lower right

1шт.

41

487516R1

SUPPORT, tie tongue lower left

1шт.

42

487517R1

SUPPORT, tie tongue lower right

1шт.

43

487518R1

SUPPORT, tie tongue

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z hex-hd cap

4шт.

113-1092

SCREW, 5/8-11 x 5-3/4 hex-hd cap

2шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8-11 x 7 hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

12шт.

44

490040R1

PIPE, transport hitch, replaces pipe 487519R1

1шт.

45

490043R1

BRACKET ASSY, rear, replaces bracket 487520R1

1шт.

S8380

PIN

5/8 x 3-3/4 std-hd

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .074

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

490048R1

PIN

pointed

1шт.

46

490046R1

PLATE, LH, replaces support 487522R1

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

47

489106R1

PIN, rear hitch

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

48

487523R1

BAR ASSY, jockey

1шт.

49

487526R1

SUPPORT ASSY, drawbar

1шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

652296R1

PIN

3/4 x 4-1/2 std-hd

1шт.

50

487534R1

BEAM ASSY, coupling, two-point hitch adapting attachment, for use w/duplex hitch

1шт.

51

490062R1

PIPE ASSY, outside, replaces turnbuckle 480249R1

1шт.

52

490047R1

PLATE, RH, replaces support 487522R1

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

53

(Not used in this application)

1шт.

54

(Not used in this application)

1шт.

55

487638R1

ANGLE

1шт.

56

487639R1

BAR

1шт.

326-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

1/2-13 x 5-3/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

487704R1

SPACER,3/4" Tube x 1 3/16"

8шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2-13 x 4-1/2 hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.
