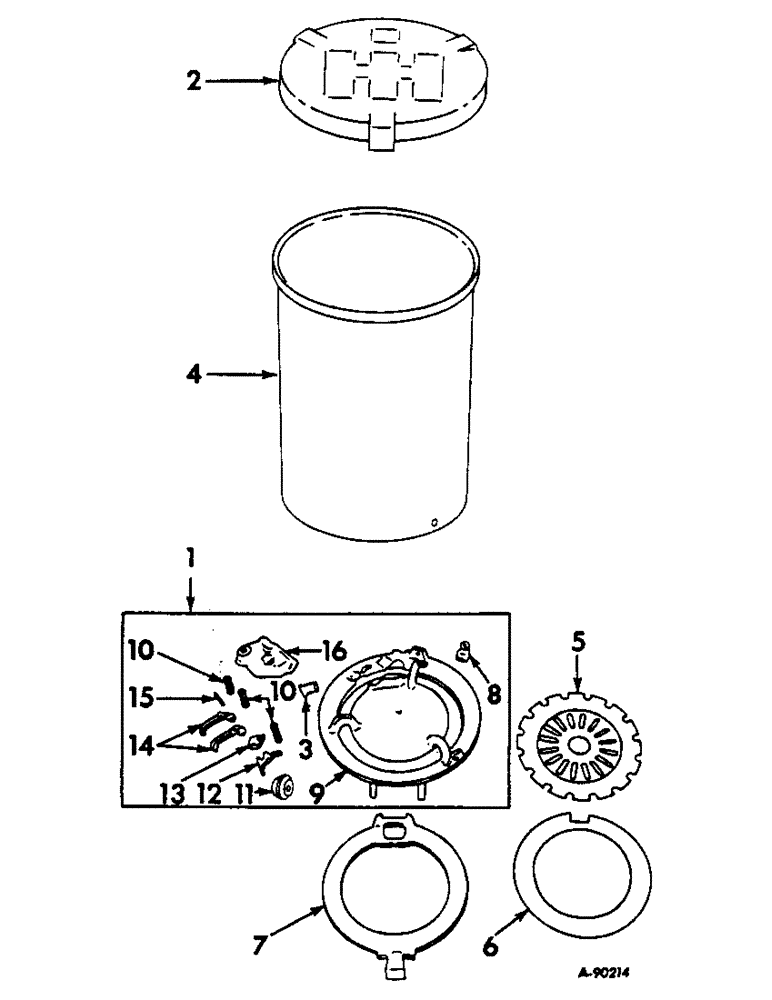

Запчасти Case IH 54-SERIES (W-22) - HOPPER AND COVER SEED, STRAIGHT SIDE, ONE PER ROW, 1967

1

464260R92

BOTTOM

ASSY, hopper, for corn & bean planting

1шт.

Q3429

DOWEL

PIN, 5/16 x 3-1/2 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

474850R2

COVER ASSY

COVER, straight side fiberglass hopper

1шт.

3

13607AB

HINGE

GATE, hopper bottom hinge

1шт.

4

478558R11

HOPPER

ASSY, fiberglass straight side, 30 lbs capacity

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

3шт.

138538

LOCK WASHER

WASHER, 5/16 int-tooth lock C-Z

3шт.

5

PLATE, seed, refer to seed plate section

1шт.

6

RING, filler, refer to seed plate section

1шт.

7

468507R2

PLATE

hopper bottom reversible

1шт.

8

625065R2

BUTTON

hopper bottom plate retainer

1шт.

104090

RIVET

1/4 x 1-5/8 button hd ann.

1шт.

9

BOTTOM, hopper, order bottom assy, 464260R92

1шт.

10

2064A

SPRING

cut-off and knocker

3шт.

11

464259R1

ROLLER

KNOCKER, roller

1шт.

12

464258R11

ARM

ASSEMBLY, roller knocker

1шт.

13

625066R1

KNOCKER

SEAT, adjustable knocker

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4 x 5/8 C-Z slt-rd-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

1шт.

14

625539R91

PAWL

S, cut-off, pair of inner and outer

1шт.

15

2000AA

PIN

cut-off pawls pivot

1шт.

16

625069R3

CAP

cut-off and knocker

1шт.

18472R1

BOLT

5/16 x 2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
