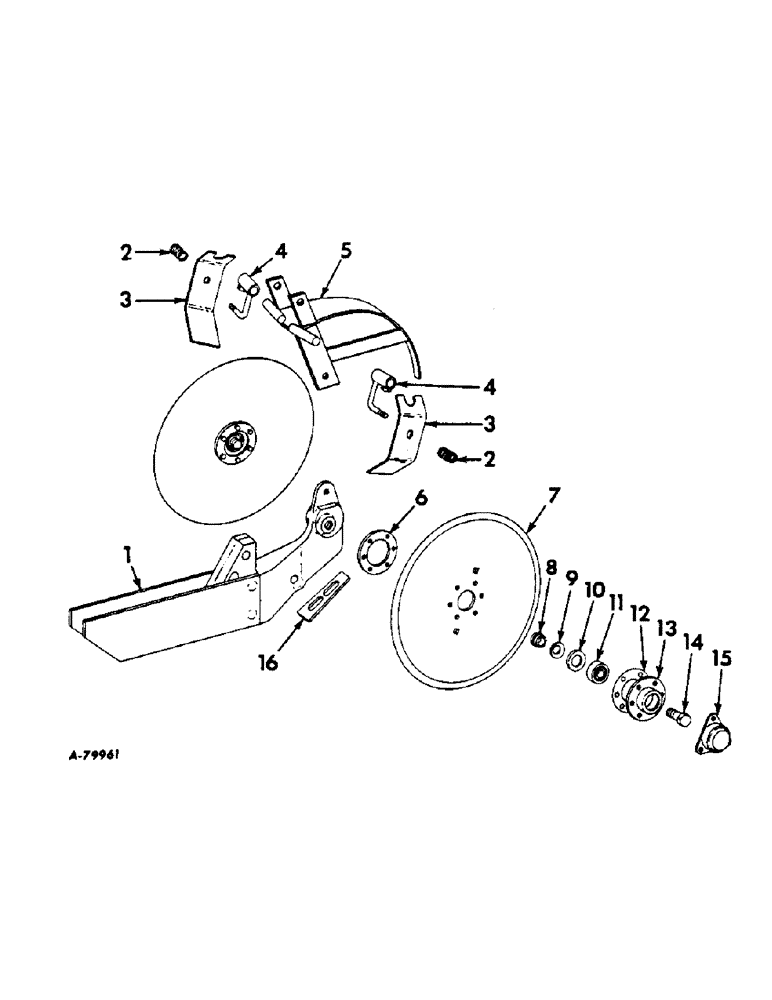

Запчасти Case IH 54-SERIES (W-14) - DOUBLE DISK OPENER AND SCRAPER, ONE PER ROW
№
Артикул
Название
Примечание
Количество
1
474444R91
OPENER
RUNNER ASSY, double disk, drill
1шт.
20156R1
RIVET, 3/8 x 2-5/16 74 deg csk-hd
2шт.
18810R1
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2
1/2 x 2-1/4 C-Z hex-hd mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
2
6633
SPRING
2шт.
3
471240R1
SUPPORT
SCRAPER, disk
2шт.
4
474344R91
SPACER
ASSY, scraper
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
4шт.
102894
SET SCREW
3/8-16 x 3/4 sq-hd cup-pt set
2шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
4шт.
5
474337R12
GUARD
ASSY, double disk opener
1шт.
13254R1
BOLT, 5/16 x 1 sq-hd mach
1шт.
18813R1
BOLT,Hex, 1/2" - 13 x 4", Gr 2
1/2-13 x 4 C-Z hex-hd mach
1шт.
456276R1
NUT
5/16-18 hex. lock
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
6
464480R1
WASHER
WASHER, reinforcement
2шт.
7
471235R1
DISC
DISK, opener
2шт.
8
602988R1
SPACER
seal retainer
2шт.
9
464628R1
SEAL
2шт.
10
602994R1
FLANGE
corrosion prevention
2шт.
11
465004R91
BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"
ASSY, ball
2шт.
12
602992R1
GASKET
disk
2шт.
13
602989R1
FLANGE,1.41" ID x 3.25" OD x 0.63"
HOUSING, disk brg
2шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 C-Z hex-hd cap
12шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
12шт.
14
464481R1
BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH
BOLT, brg disk LH THD
1шт.
14
464482R1
BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH
BOLT, brg disk RH THD
1шт.
15
464483R1
CYLINDER END CAP
CAP, disk brg
2шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 C-Z hex-hd cap
6шт.
16
478203R1
BAR
SCRAPER, inside
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 C-Z hex-hd mach
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
1шт.
Выбрано товаров: 36
