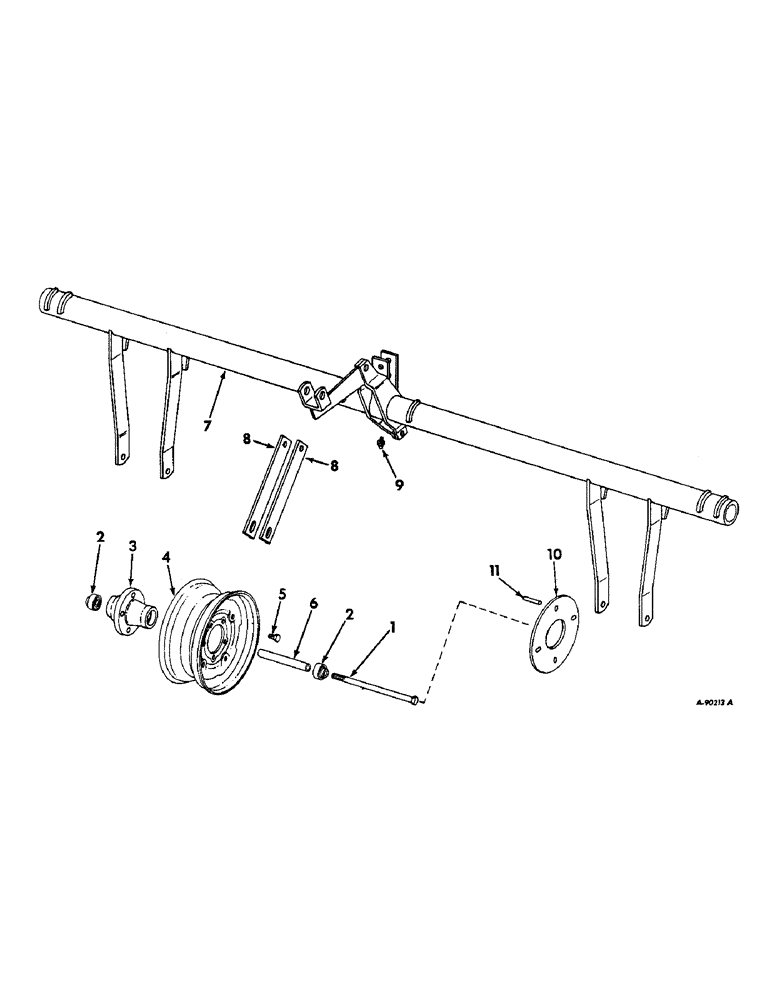

Запчасти Case IH 54-SERIES (W-12) - FRAME AND WHEEL

1

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

3/4 x 9-1/2 C-Z hex-hd cap

4шт.

2

ST505

BALL BEARING,0.753" ID x 2.0472" OD x 0.7"

BEARING ASSY, wheel ball

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

471797R1

HUB, drive wheel

4шт.

4

465464R1

WHEEL ASSY, 14 in., recommend 7.50-14 4-ply rib tire and tube

4шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

20шт.

6

471798R1

SPACER, wheel brg

4шт.

7

487575R1

TUBE ASSY, wheel

2шт.

8

472299R1

LINK

transport

4шт.

21805R1

PIN

5/8 x 2-1/8 C-Z std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

20812R1

PIN,5/8" x 2 1/4"

5/8 x 2-1/4 C-Z std-hd

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF drive-type STR lub

1шт.

10

489747R1

COVER, wheel

4шт.

22484R1

BOLT, 5/16-18 x 6-1/4 C-Z hex-hd mach

8шт.

11

489868R1

SPACER, plate

8шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.
