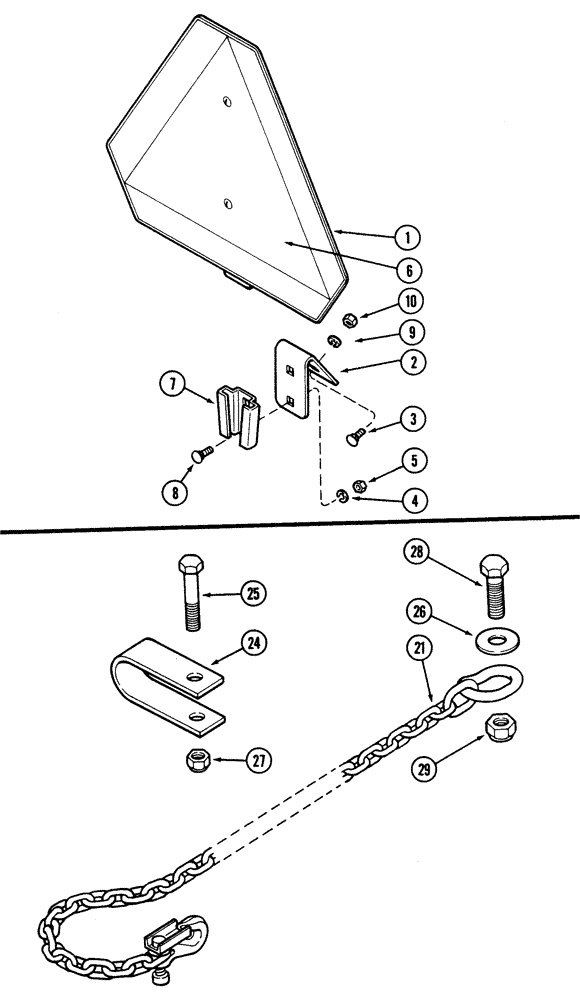

Запчасти Case IH 5300 (9-112) - SMV EMBLEM, SAFETY CHAIN (09) - CHASSIS

1

A59450

WARNING SIGN

Emblem Assembly, SMV

1шт.

2

819998C1

SUPPORT

slow moving vehicle emblem

1шт.

3

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

4

80681

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

REF

INSTRUCTION

DECAL SMV Emblem

1шт.

7

847590

BRACKET

socket, female, SMV emblem

1шт.

8

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

9

80681

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

21

100682C3

CHAIN (AG)

10,000 lb safety, Years: -01-MAR-06

1шт.

21

87398923

CHAIN

safety 10,100 lb, Start Year: 01-APR-06

1шт.

21

1279163C1

CLEVIS COUPLING

safety chain

1шт.

25

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

26

86624159

WASHER,0.78" ID x 2" OD x 0.18" Thk

1шт.

27

86639566

NUT,5/8"-11, GB

1шт.

28

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

1шт.

29

86754

NUT,3/4"-10, GB

1шт.
