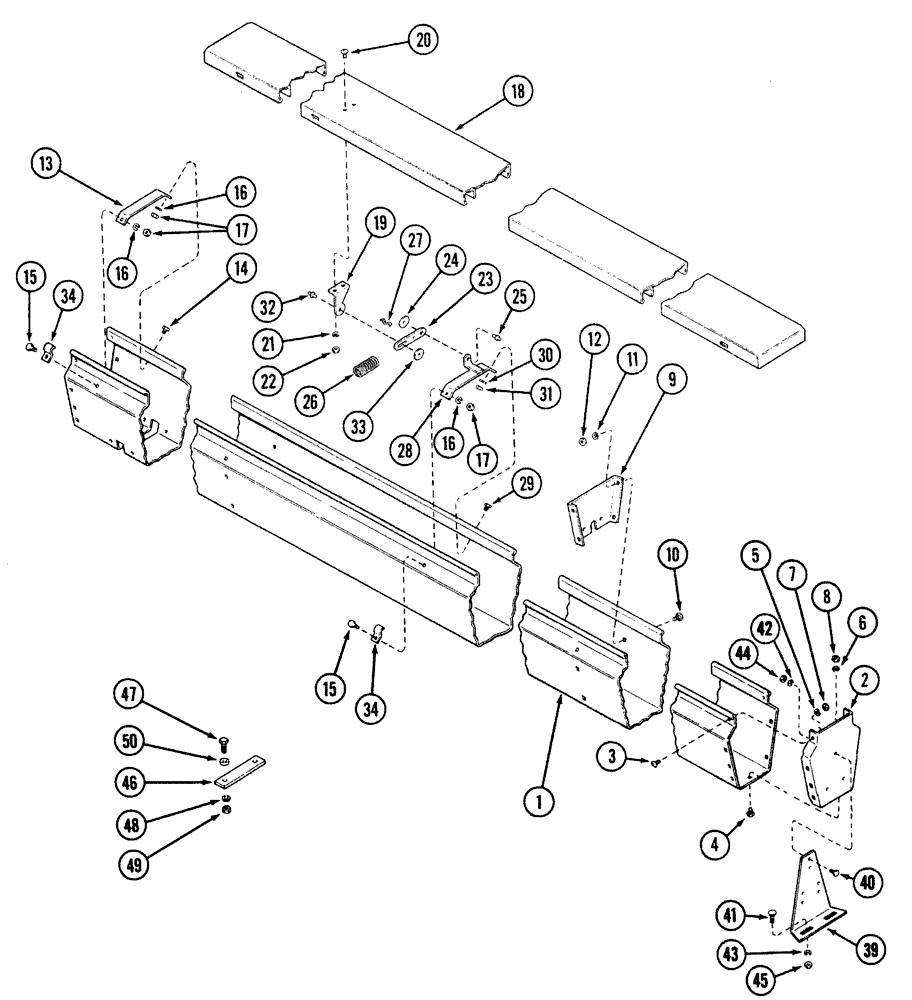

Запчасти Case IH 5300 (9-106) - BROME SEED ATTACHMENT, HOPPER (09) - CHASSIS

1

815663C1

HOPPER

BROME SEED 16 X 7

1шт.

1

815664C1

HOPPER

brome seed 18 x 7

1шт.

2

815596C1

PANEL, SIDE

hopper head

2шт.

3

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

4шт.

4

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

10шт.

5

80682

LOCK WASHER,1/4"

4шт.

6

80681

LOCK WASHER,5/16"

10шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

10шт.

9

815597C1

PLATE

baffle hopper

3шт.

10

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

12шт.

11

80681

LOCK WASHER,5/16"

12шт.

12

9635082

NUT,5/16" - 18, Gr 5

12шт.

13

815599C1

BRACKET

Brace grass and brome box

2шт.

13

815599C1

BRACKET

Brace grass and brome box

4шт.

14

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

16

80681

LOCK WASHER,5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

815601C1

COVER

brome box 9' 6"

1шт.

18

815602C1

COVER

brome box 10' 6"

1шт.

19

815615C1

SUPPORT

bracket

1шт.

20

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

2шт.

21

80682

LOCK WASHER,1/4"

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

23

N32052

BAR

plunger

1шт.

24

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

2шт.

25

45-38

RIVET,But Hd, 3/16" x 1/2"

2шт.

26

6628

SPRING

C .08WR .847OD 2.25LG

1шт.

27

N32114

LINCH PIN

spring 1/8" wire, saddle

1шт.

28

815616C1

BRACKET

lid latch pivot

1шт.

29

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

30

80681

LOCK WASHER,5/16"

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

1шт.

32

45-38

RIVET,But Hd, 3/16" x 1/2"

1шт.

33

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

1шт.

34

815618C1

CLAMP

tube 1/2" x 7/8"w

5шт.

34

815618C1

CLAMP

tube 1/2" x 7/8"w

7шт.

39

815656C1

SUPPORT

hopper end

2шт.

40

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

41

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

42

80682

LOCK WASHER,1/4"

2шт.

43

80681

LOCK WASHER,5/16"

4шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

4шт.

46

815707C1

BAR

brome box support

2шт.

47

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

48

80681

LOCK WASHER,5/16"

4шт.

49

9635082

NUT,5/16" - 18, Gr 5

4шт.

50

85960R1

WASHER

13/32" id x 3/4" od x 1/4" thick

4шт.
