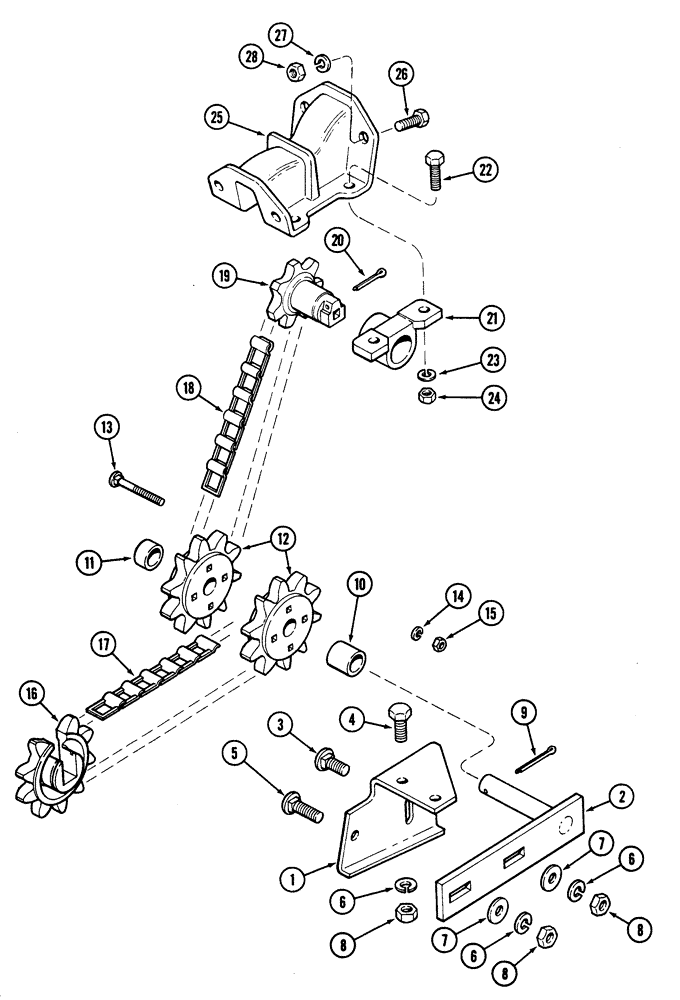

Запчасти Case IH 5300 (9-102) - GRASS SEED ATTACHMENT, HIGH FRONT MOUNTED DRIVE (09) - CHASSIS

1

815638C1

BRACKET

chain tightener

1шт.

2

816340C2

BRACKET

idler

1шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

1шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

7

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

8

9628503

NUT,3/8"-16, G5

2шт.

9

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

10

PO15237

SPACER

tightener sprocket, inner

1шт.

11

590750R1

SPACER

bushing, crank regulator

1шт.

12

819949C1

DRIVE SPROCKET

10 tooth

2шт.

13

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

2шт.

14

80682

LOCK WASHER,1/4"

2шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

16

1978907C2

DRIVE SPROCKET

10 tooth

1шт.

17

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY Drive

1шт.

Use 26 links of no. 25 steel chain

1шт.

17

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY drive

1шт.

Use 32 links of no. 25 steel chain

1шт.

18

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY drive

1шт.

Use 45 links of no. 25 steel chain

1шт.

19

NA1475

DRIVE SPROCKET

7 tooth

1шт.

20

394818

COTTER PIN,M5 x 25

1шт.

21

816533C1

BRACKET

grass seed shaft

1шт.

22

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

23

80681

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

816532C1

GUARD

grass drive

1шт.

26

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

27

80681

LOCK WASHER,5/16"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

4шт.
