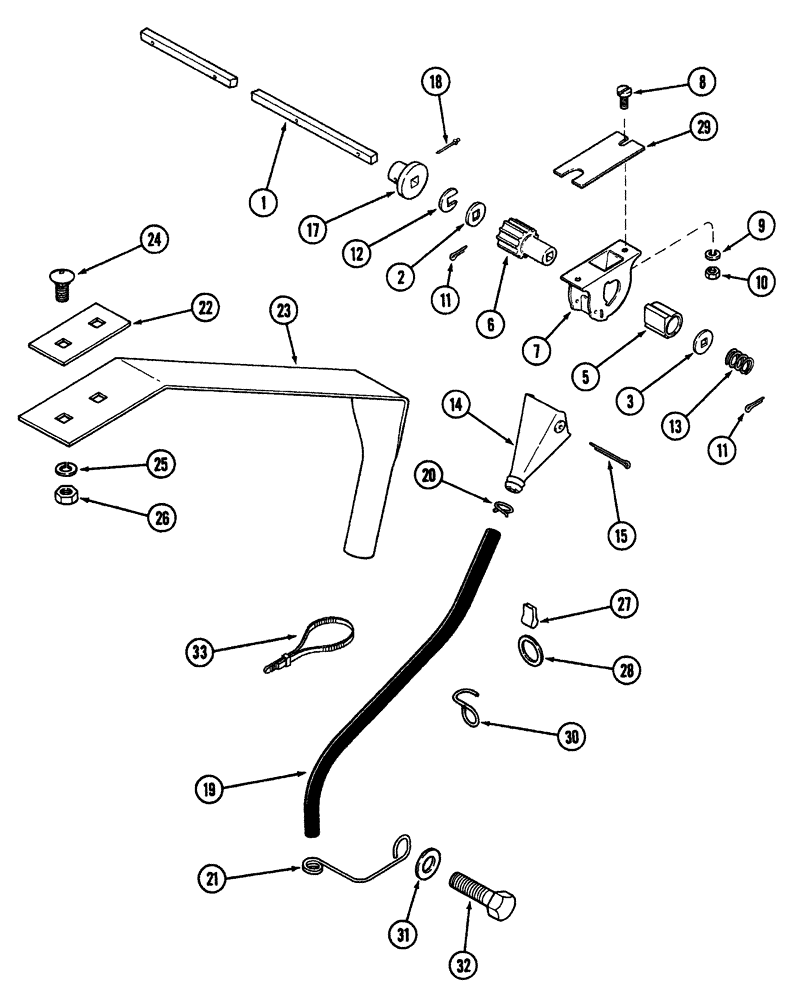

Запчасти Case IH 5300 (9-100) - GRASS SEED FEED (09) - CHASSIS

1

815619C1

DRIVE SHAFT

sq 5/16" x 88 11/16" lg

1шт.

1

815620C1

DRIVE SHAFT

bar 16 x 7

1шт.

1

815621C1

DRIVE SHAFT

bar, feed 18 x 7

2шт.

1

815622C1

DRIVE SHAFT

bar, feed 20 x 6

2шт.

1

815623C1

DRIVE SHAFT

sq 5/16" x 69 11/16" lg

2шт.

1

815625C1

DRIVE SHAFT

BAR, FEED

2шт.

1

816689C1

DRIVE SHAFT

square 5/16" x 66" long

1шт.

1

816690C1

DRIVE SHAFT

square 5/16" x 72.92" long

1шт.

2

498-81000

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

1шт.

3

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

1шт.

5

600924R93

CUP ASSY.

GRASS SEED

1шт.

5

600923R2

BLOCK

thimble - shut off

1шт.

6

601463R1

FINGER ASSY.

roller fluted grass feed

1шт.

7

615750R93

CUP

feed wldmnt

1шт.

8

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1шт.

9

80682

LOCK WASHER,1/4"

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

11

80755

COTTER PIN,1/8" OD x 1" L

1шт.

12

N32109

WASHER

11/32" id x 7/8" od x 1/64" thick

1шт.

13

N32176

SPRING

C .072" wire x .594" od x 3/4" long

1шт.

14

603817R3

TUBE

funnel poly black

1шт.

15

432-832

COTTER PIN,1/8" x 2"

1шт.

17

819227C1

SLEEVE

sintered

1шт.

18

45-214

RIVET,But Hd, 1/8" x 7/8"

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE Feeder, 23 inch

1шт.

For service order 997790r1 and cut to length

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE Feeder, 54 inch

1шт.

For service order 997790r1 and cut to length

1шт.

20

86624006

HOSE CLAMP,20.12mm - 21.13mm

1шт.

21

1263691C1

HOOK

.135" wire

1шт.

22

815690C1

PLATE

seed holder mounting

1шт.

23

815689C1

HOLDER

grass seed tube

1шт.

24

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

25

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

26

9628503

NUT,3/8"-16, G5

1шт.

27

819193C1

SPRING CLIP

U .1-.156

1шт.

28

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

1шт.

29

818183C1

PROTECTIVE COVER

BAR, FEED

1шт.

30

603882R1

HOOK

spring 10ga type1 wire

1шт.

31

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

1шт.

32

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

33

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.
