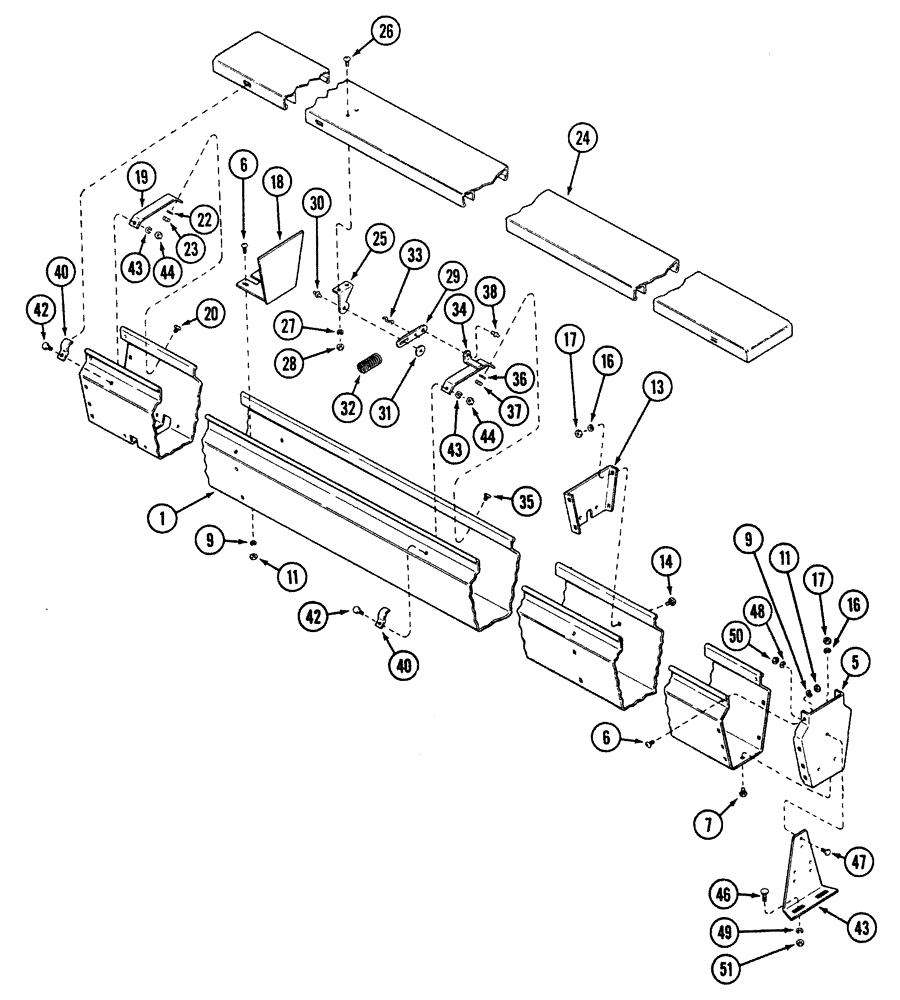

Запчасти Case IH 5300 (9-096) - GRASS SEED ATTACHMENT, LOW REAR MOUNTED HOPPER (09) - CHASSIS

1

87445206

HOPPER

grass seed 13 x 7

1шт.

1

815589C3

HOPPER

GRASS SEED

1шт.

1

351156A1

HOPPER

assy grass seed 18 x 7 lrm

1шт.

1

351160A1

HOPPER

assy grass seed 20 x 6 hfm

1шт.

1

351157A1

HOPPER

assy grass seed 24 x 7 lrm

1шт.

1

351161A1

HOPPER

assy grass seed 24 x 6 hfm

1шт.

5

819596C2

BUSHING,11.13mm ID x 16.5mm OD x 10.13mm L

7/16" id x 21/32" od x 13/32" long

2шт.

6

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1шт.

7

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

12шт.

8

80682

LOCK WASHER,1/4"

4шт.

9

80681

LOCK WASHER,5/16"

12шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

12шт.

12

815597C1

PLATE

baffle hopper

2шт.

13

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

8шт.

14

80681

LOCK WASHER,5/16"

8шт.

15

9635082

NUT,5/16" - 18, Gr 5

8шт.

16

815598C1

BAFFLE

assembly - grass seed

1шт.

17

815599C1

BRACKET

Brace grass and brome box

4шт.

17

815599C1

BRACKET

Brace grass and brome box

4шт.

18

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

20

80681

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

1шт.

22

815600C1

COVER

ASSY, HOPPER

1шт.

22

815601C1

COVER

brome box 9' 6"

1шт.

22

815602C1

COVER

brome box 10' 6"

1шт.

22

815603C1

COVER

brome box 12' 6"

1шт.

23

815615C1

SUPPORT

bracket

1шт.

24

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

2шт.

25

80682

LOCK WASHER,1/4"

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

27

N32052

BAR

plunger

1шт.

28

45-38

RIVET,But Hd, 3/16" x 1/2"

1шт.

29

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

1шт.

30

6628

SPRING

C .08WR .847OD 2.25LG

1шт.

31

N32114

LINCH PIN

spring 1/8" wire, saddle

1шт.

32

815616C1

BRACKET

lid latch pivot

1шт.

33

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

34

80681

LOCK WASHER,5/16"

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

1шт.

36

45-38

RIVET,But Hd, 3/16" x 1/2"

1шт.

38

815618C1

CLAMP

tube 1/2" x 7/8"w

1шт.

38

815618C1

CLAMP

tube 1/2" x 7/8"w

1шт.

40

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

41

80681

LOCK WASHER,5/16"

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

1шт.

43

815656C1

SUPPORT

hopper end

2шт.

44

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

45

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

6шт.

46

80682

LOCK WASHER,1/4"

6шт.

47

80681

LOCK WASHER,5/16"

4шт.

48

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

49

9635082

NUT,5/16" - 18, Gr 5

4шт.
