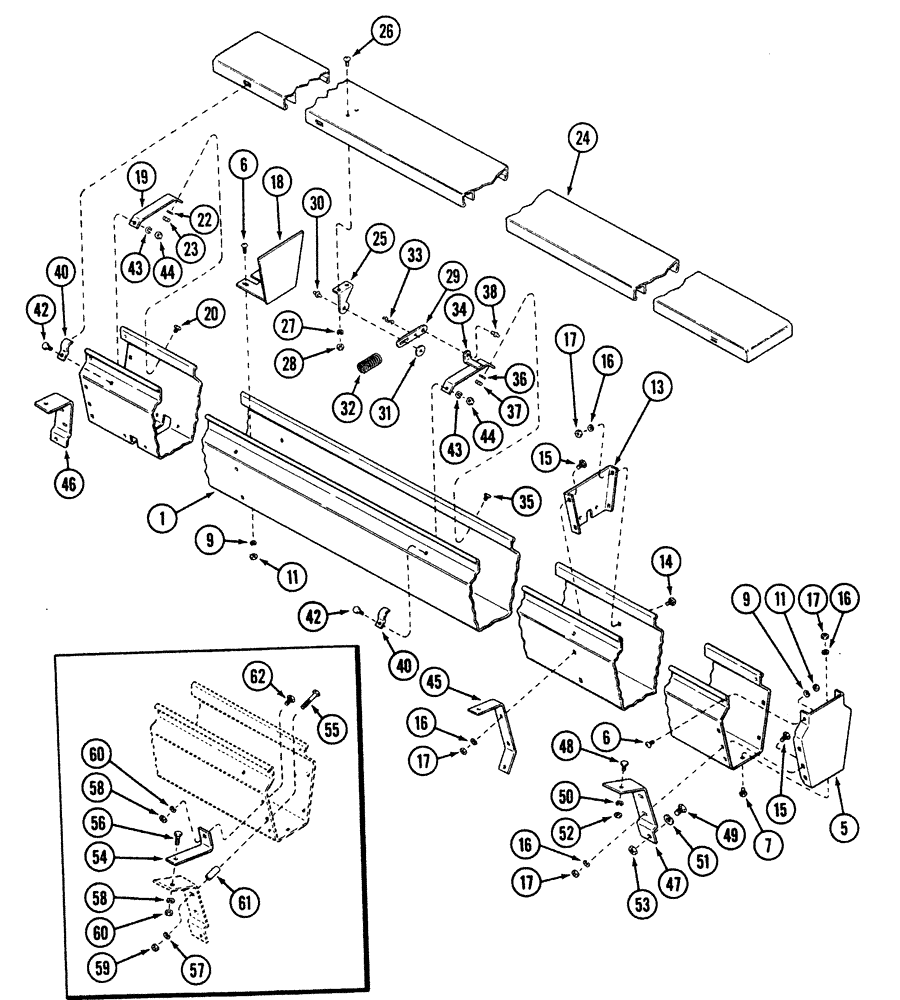

Запчасти Case IH 5300 (9-094) - GRASS SEED ATTACHMENT, HIGH FRONT MOUNTED HOPPER (09) - CHASSIS

1

87445206

HOPPER

grass seed 13 x 7

1шт.

1

815589C3

HOPPER

GRASS SEED

1шт.

1

351156A1

HOPPER

assy grass seed 18 x 7 lrm

1шт.

1

351160A1

HOPPER

assy grass seed 20 x 6 hfm

1шт.

1

351157A1

HOPPER

assy grass seed 24 x 7 lrm

1шт.

1

351161A1

HOPPER

assy grass seed 24 x 6 hfm

1шт.

1

818187C1

HOPPER

grass seed 20 x 8

1шт.

1

351159A1

HOPPER

box assy grass seed 21 x 7 hfm

1шт.

5

819060C2

PANEL, SIDE

hopper head

2шт.

6

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1шт.

7

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

8шт.

9

80682

LOCK WASHER,1/4"

1шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

13

815597C1

PLATE

baffle hopper

2шт.

13

815597C1

PLATE

baffle hopper

4шт.

14

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

1шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

16

80681

LOCK WASHER,5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

815598C1

BAFFLE

assembly - grass seed

1шт.

19

815599C1

BRACKET

Brace grass and brome box

2шт.

19

815599C1

BRACKET

Brace grass and brome box

4шт.

20

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

22

80681

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

1шт.

24

815600C1

COVER

ASSY, HOPPER

1шт.

24

815601C1

COVER

brome box 9' 6"

1шт.

24

815602C1

COVER

brome box 10' 6"

1шт.

24

815603C1

COVER

brome box 12' 6"

1шт.

24

818184C1

COVER

ASSY, HOPPER

1шт.

25

815615C1

SUPPORT

bracket

1шт.

26

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

2шт.

27

80682

LOCK WASHER,1/4"

2шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

29

N32052

BAR

plunger

1шт.

30

45-38

RIVET,But Hd, 3/16" x 1/2"

1шт.

31

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

1шт.

32

6628

SPRING

C .08WR .847OD 2.25LG

1шт.

33

N32114

LINCH PIN

spring 1/8" wire, saddle

1шт.

34

815616C1

BRACKET

lid latch pivot

1шт.

35

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

36

80681

LOCK WASHER,5/16"

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

1шт.

38

45-36

RIVET,But Hd, 3/16" x 3/8"

1шт.

40

815618C1

CLAMP

tube 1/2" x 7/8"w

1шт.

40

815618C1

CLAMP

tube 1/2" x 7/8"w

1шт.

42

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

43

80681

LOCK WASHER,5/16"

3шт.

44

9635082

NUT,5/16" - 18, Gr 5

3шт.

45

815636C1

BRACKET

Brace hopper support intermediate

1шт.

46

818265C1

BRACKET

Brace hopper support end LH, Years: -30-JUN-02

1шт.

46

86991159

BRACKET

grassbox LH, Start Year: 01-JUL-02

1шт.

47

818266C1

BRACKET

Brace hopper support end RH, Years: -30-JUN-02

1шт.

47

86991157

BRACKET

grassbox RH, Start Year: 01-JUL-02

1шт.

48

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

49

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

50

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

51

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

52

9628503

NUT,3/8"-16, G5

1шт.

53

280431

NUT,1/2"-13, G5

2шт.

54

843257C1

SUPPORT

GRASS BOX

6шт.

For use when duplexing drills with two drill hitch.

1шт.

55

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

6шт.

56

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

57

80681

LOCK WASHER,5/16"

6шт.

58

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

59

9635082

NUT,5/16" - 18, Gr 5

6шт.

60

9628503

NUT,3/8"-16, G5

6шт.

61

522204R1

SPACER,1/4" Pipe x 1 3/8"

6шт.

62

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.
