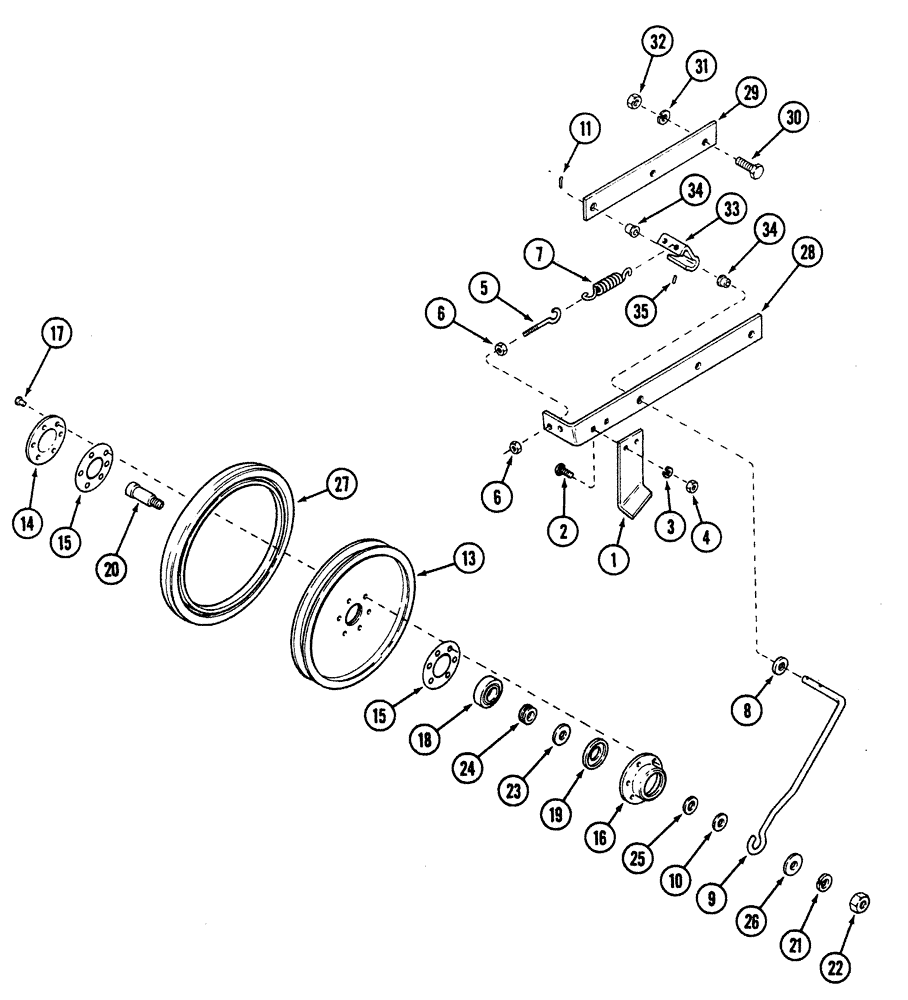

Запчасти Case IH 5300 (9-092) - SEED FIRMING WHEEL (09) - CHASSIS

1

819335C1

SUPPORT

FIRMING WHEEL

1шт.

2

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

2шт.

3

80682

LOCK WASHER,1/4"

2шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

5

815452C1

EYEBOLT,5/16" - 18 x 3"

BOLT, EYE ADJUSTING

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

4шт.

7

819979C1

COIL SPRING

ADJUSTING BOLT

2шт.

8

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

1шт.

9

819337C1

ROD

FIRMING WHEEL DRAW

1шт.

10

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

11

394818

COTTER PIN,M5 x 25

1шт.

13

815514C91

WHEEL ASSY.

SEED FIRMING

1шт.

13

NSS

NOT SOLD SEPARAT

WHEEL ASSY Disc

1шт.

14

602990R1

CAP

DISK

1шт.

15

602992R2

GASKET,0.79mm Thk

BEARING RETAINER

2шт.

16

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

BEARING

1шт.

17

45-48

RIVET,But Hd, 1/4" x 1/2"

6шт.

18

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

41622600

1шт.

19

602994R1

FLANGE

seal 29/32"id x 1 9/16"od

1шт.

20

602987R1

BOLT

DISK

1шт.

21

12034871

WASHER

5/8"

1шт.

22

408

NUT,5/8" - 18, Gr 5

1шт.

23

464628R1

SEAL

DIRT

1шт.

24

602988R1

SPACER

SEAL RETAINER

1шт.

25

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

1шт.

26

495-81033

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

2шт.

27

622359R1

TYRE/TIRE

SEED FIRMING WHEEL 10X1.0

1шт.

28

819339C1

SUPPORT

DRAW ROD

1шт.

29

819338C1

BAR

DRAW ROD

1шт.

30

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

32

280431

NUT,1/2"-13, G5

4шт.

33

819336C3

SUPPORT

SPRING

1шт.

34

819343C1

BUSHING

PIVOT ROD

2шт.

35

38-31216

PIN,3/16" x 1", Coiled

1шт.
