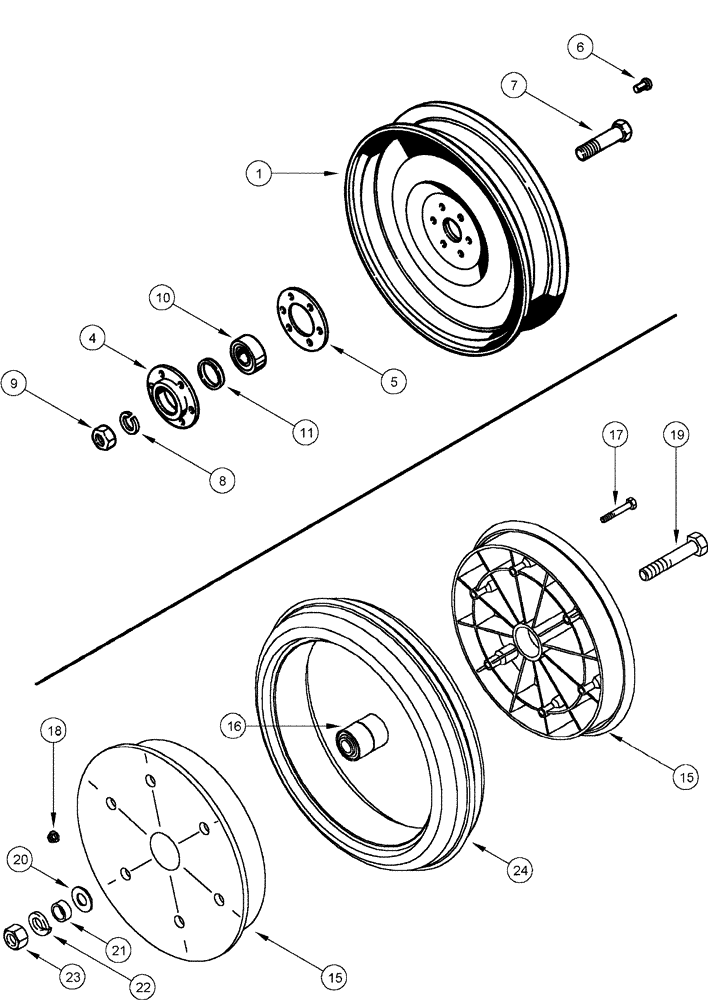

Запчасти Case IH 5300 (9-090) - PRESS WHEEL, STEEL WHEEL, PLASTIC WHEEL (09) - CHASSIS

0

1973102C2

WHEEL

ASSY W/TIRE 13 INCH

1шт.

1

NSS

NOT SOLD SEPARAT

WHEEL Depth Press

1шт.

4

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

BEARING

1шт.

5

602992R2

GASKET,0.79mm Thk

BEARING RETAINER

1шт.

6

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

7

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

1шт.

8

12034871

WASHER

5/8"

1шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

41622600

1шт.

10

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

#BB203RR2 Torrington

1шт.

11

1985914C1

SPACER, RING

1шт.

15 - 24

252415A1

WHEEL

press assy 13 plastic

1шт.

15 - 24

247959A1

WHEEL ASSY

press, nylon 3" x 13", Years: -01-OCT-07

1шт.

15 - 24

87645554

WHEEL ASSY

3 x 13 press, Start Year: 01-OCT-07

1шт.

15

323891A1

WHEEL

NYLON HALF,3X13,40MM, Years: -01-OCT-07

2шт.

16

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

15

87645554

WHEEL ASSY

3 x 13 press, Start Year: 01-OCT-07

2шт.

17

458-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

18

523282

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

19

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

20

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

3шт.

21

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

1шт.

22

12034871

WASHER

5/8"

1шт.

23

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

24

842666C1

TYRE/TIRE

press 3" x 13 3/8"

1шт.
