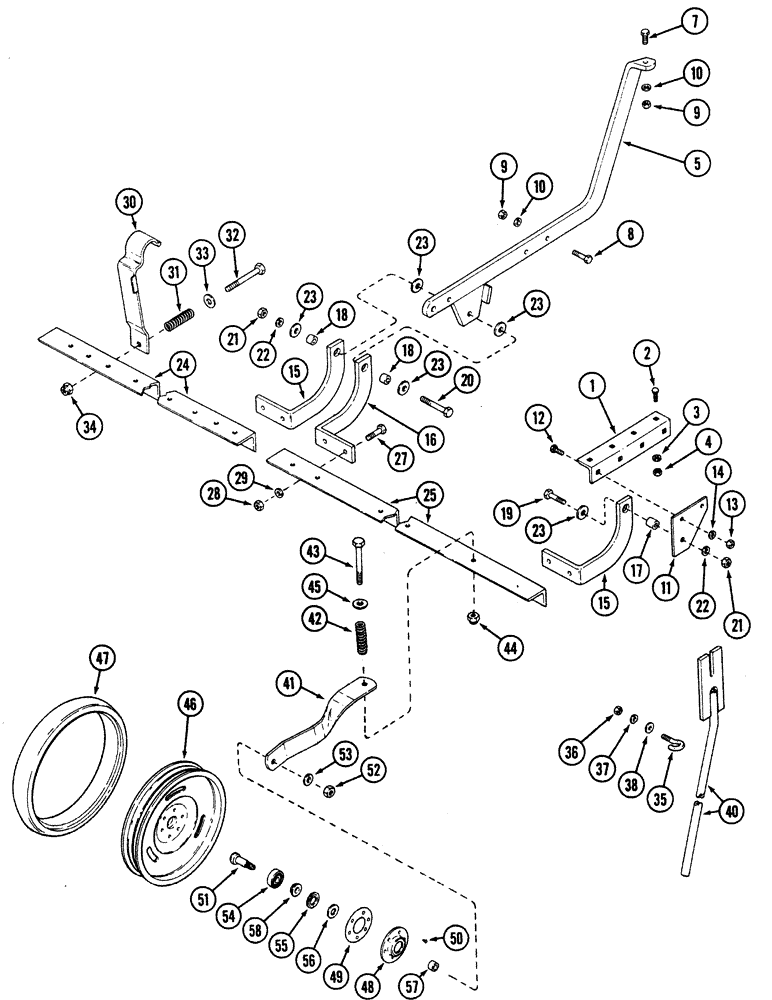

Запчасти Case IH 5300 (9-084) - GANG PRESS WHEEL (09) - CHASSIS

1

1279584C1

ANGLE BAR

DRAWBAR OUTER

2шт.

2

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

3

80681

LOCK WASHER,5/16"

8шт.

4

9635082

NUT,5/16" - 18, Gr 5

8шт.

5

843355C1

SUPPORT ASSY.

INNER GANG - LH

1шт.

Shown

1шт.

5

843356C1

SUPPORT ASSY.

INNER GANG - RH

1шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

9

9628503

NUT,3/8"-16, G5

6шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

11

843358C1

SUPPORT

OUTER PIVOT

2шт.

12

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

80681

LOCK WASHER,5/16"

4шт.

15

843360C1

ANGLE

GANG PIVOT - RIGHT

3шт.

16

843359C1

ANGLE

GANG PIVOT - LEFT

3шт.

17

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

2шт.

18

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

4шт.

19

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

20

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

21

280431

NUT,1/2"-13, G5

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

23

495-81024

WASHER,17/32" x 1 1/4" x .060"

6шт.

24

815730C2

SUPPORT

ANGLE, GANG MTG CENTRE

1шт.

25

815731C2

SUPPORT

ANGLE, GANG MTG LH

1шт.

25

815732C2

SUPPORT

ANGLE, GANG MTG RH

1шт.

Shown

1шт.

27

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

12шт.

28

280431

NUT,1/2"-13, G5

12шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

30

1279006C1

LOCKING DEVICE

ASSEMBLY - GANG PRESS WHEEL

3шт.

31

VC682

VALVE SPRING

Drawbar

3шт.

32

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

3шт.

33

495-81024

WASHER,17/32" x 1 1/4" x .060"

3шт.

34

87530607

NUT

1/2"-13, GB

3шт.

35

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

BOLT, EYE FINGER BAR

1шт.

36

9628503

NUT,3/8"-16, G5

2шт.

37

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

38

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

40

819123C1

TOOL

ASSY, GANG FRAME LIFT

1шт.

41

819077C1

BAR

PRESS WHEEL DRAW

2шт.

42

VC682

VALVE SPRING

DRAWBAR

2шт.

43

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

44

87530607

NUT

1/2"-13, GB

1шт.

45

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

46

819078C1

WHEEL,285.75mm OD x 47.75mm W

PRESS

1шт.

47

600483R3

TYRE/TIRE

PRESS WHEEL 13X2.00 TUBELESS

1шт.

48

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

BEARING

1шт.

49

602992R2

GASKET,0.79mm Thk

BEARING RETAINER

1шт.

50

NSS

NOT SOLD SEPARAT

RIVET, 1/4 x 3/4 incH (Order Rivet Package 990323R91)

1шт.

51

602987R1

BOLT

DISK

1шт.

52

408

NUT,5/8" - 18, Gr 5

1шт.

53

12034871

WASHER

5/8"

1шт.

54

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

41622600

1шт.

55

602994R1

FLANGE

seal 29/32"id x 1 9/16"od

1шт.

56

464628R1

SEAL

DIRT

1шт.

57

PO10780

SPACER,3/4" Pipe x 7/16"

1шт.

58

602988R1

SPACER

SEAL RETAINER

1шт.
