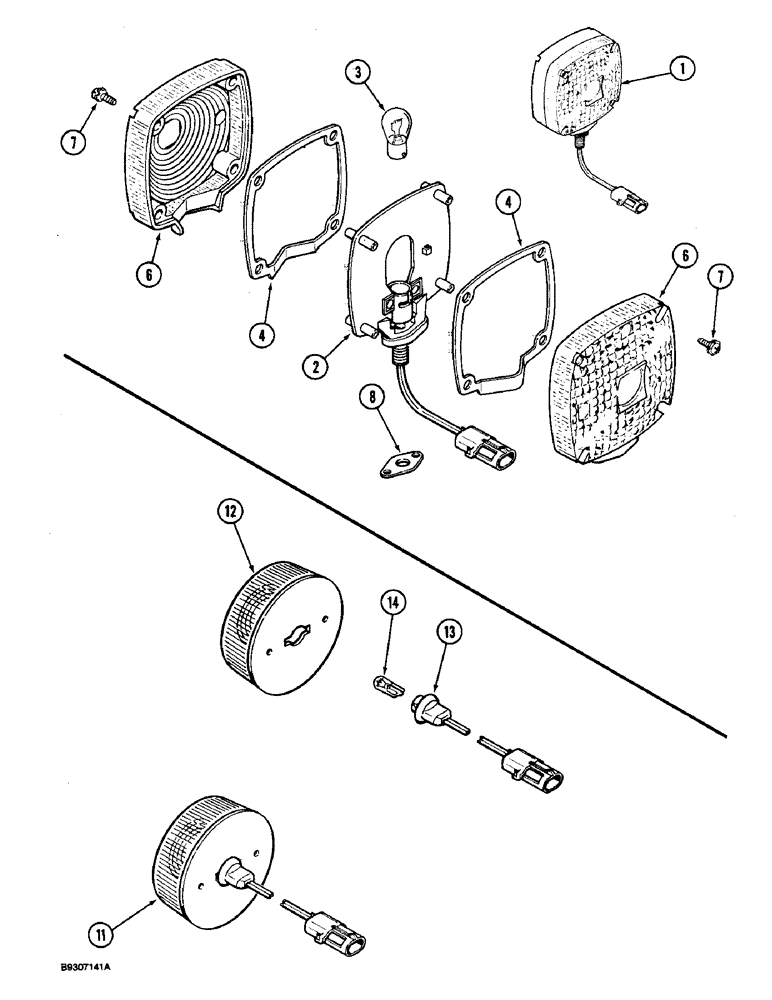

Запчасти Case IH 5300 (4-04) - TURN SIGNAL LAMP, TAIL LAMP (04) - ELECTRICAL SYSTEMS

1

192052A1

REPAIR KIT

warning light (2 wire)

2шт.

2

NSS

NOT SOLD SEPARAT

Order 192052A1

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - LAMP, ORDER 91913C91, LAMP ASSEMBLY

1шт.

3

529068

BULB,#1156, 12V, 21W

, Years: -01-SEP-06

1шт.

4

A43731

GASKET

sealing, lens

2шт.

3

86537133

BULB,C6, #1157, 12.8V

, Start Year: 01-OCT-06

1шт.

6

A44202

KIT

lens replacement

1шт.

6

NSS

NOT SOLD SEPARAT

LENS Lamp Amber

2шт.

7

87016394

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

8шт.

8

F63435

GASKET

lamp mounting

1шт.

9

377630C1

CONNECTOR, ELEC

CONNECTOR lamp

2шт.

Not Shown

1шт.

11

91986C91

LIGHT

tail, red

1шт.

12

NSS

NOT SOLD SEPARAT

BASE - LAMP, ORDER 91986C91

1шт.

13

91934C1

SOCKET

TAIL CABLE

1шт.

14

D71346

TAIL LAMP,12V

#168-14V-3CP

1шт.
