Запчасти Case IH 5300 (9-078) - DISC MARKER, RIGID, FOLDING (09) - CHASSIS

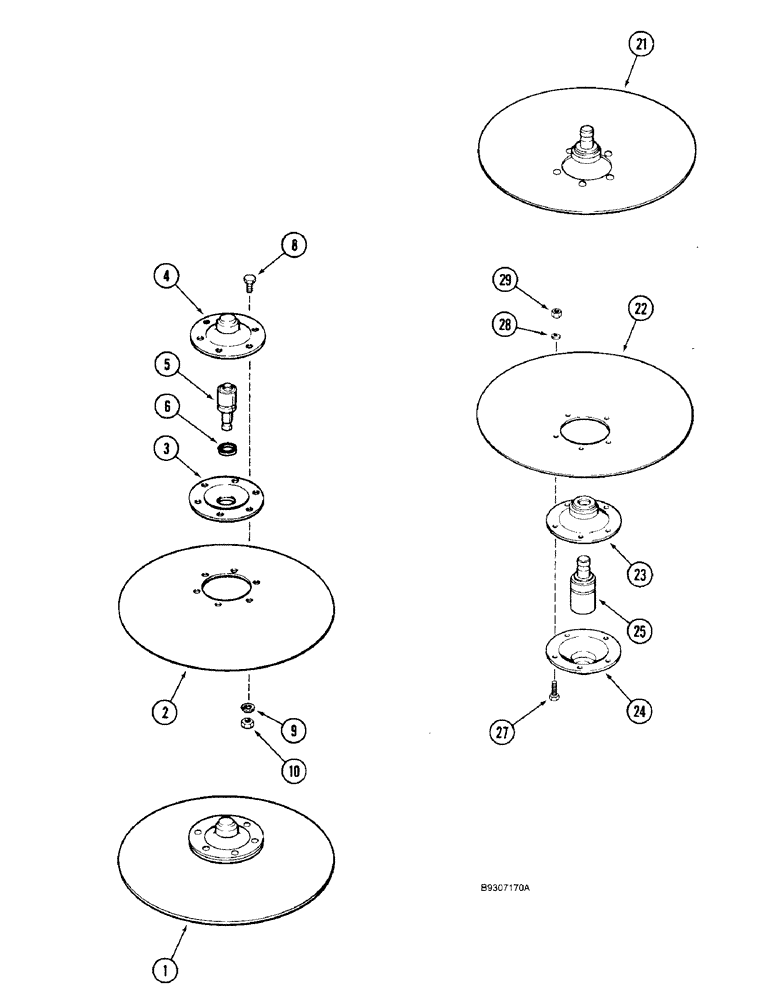

Схема запчастей Case IH 5300 - (9-078) - DISC MARKER, RIGID, FOLDING (09) - CHASSIS
27
23
29
6
10
4
24
28
25
9
1
5
22
21
8
3
2

Артикул

Название

Примечание

Количество

1

1264358C1

DISC,13"

assembly, marker

2шт.

2

469372R1

DISC,13"

335.1 mm x 2.5 mm 6-hole marker/covering

1шт.

3

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk bearing inner

1шт.

4

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk bearing outer

1шт.

5

478034R91

BEARING ASSY,30mm OD x 82.53mm L

ball - ND

1шт.

6

480679R1

WASHER

dirt seal felt

1шт.

8 - 10

NSS

NOT SOLD SEPARAT

RIVET Retaining (Order Items 8, 9, and 10 For Service)

6шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

9

80681

LOCK WASHER,5/16"

6шт.

10

9635082

NUT,5/16" - 18, Gr 5

6шт.

21

1337981C2

DISC

assembly - marker

2шт.

22

31283R1

DISC,13", FLAT CENTER

Marker and Covering

1шт.

23

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

Inner Disc

1шт.

24

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

Outer Disc

1шт.

25

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

Koyo

1шт.

27 - 29

NSS

NOT SOLD SEPARAT

RIVET Retaining (Order Items 27, 28, and 29 For Service)

5шт.

27

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

5шт.

28

80682

LOCK WASHER,1/4"

5шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

5шт.

Выбрано товаров: 19
