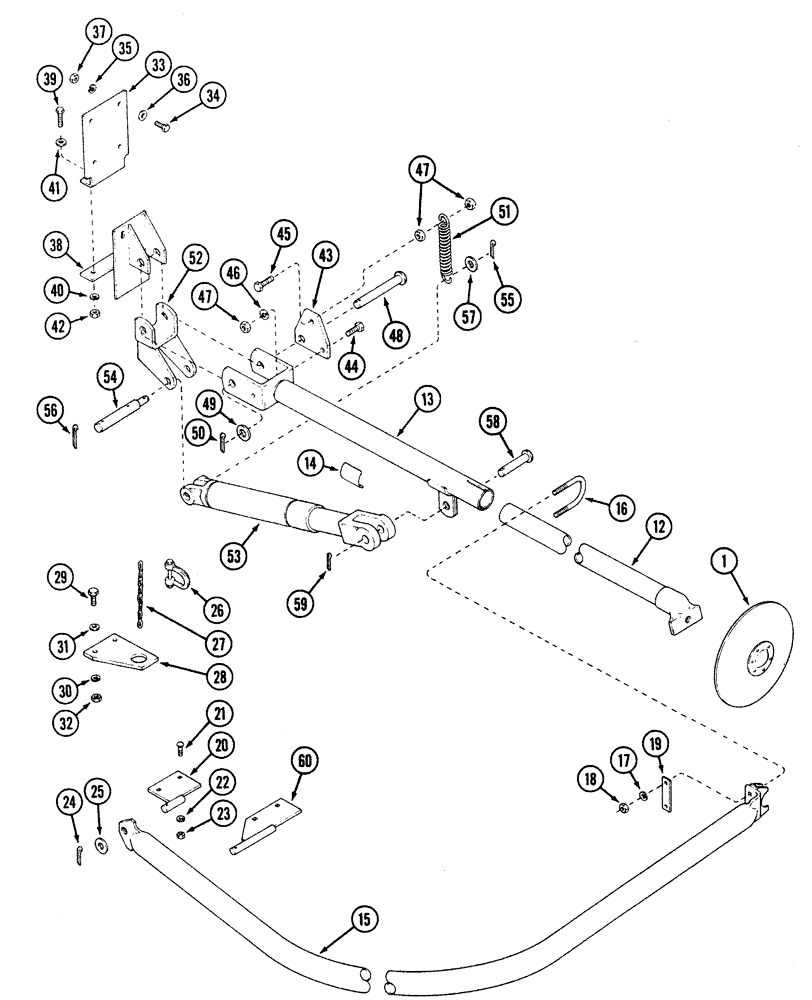

Запчасти Case IH 5300 (9-070) - DISC MARKER, HYDRAULICALLY CONTROLLED (09) - CHASSIS

1

815746C92

DISC

ASSY, MARKER

1шт.

12

596516R11

TUBE,1767.8, 33 mm Length

telescoping painted

1шт.

13

840907C91

SUPPORT TUBE

ASSY, MARKER W/PRODRUCT GRAPHIC

1шт.

14

113116C1

CAUTION DECAL,Caution Stay Clear Markers Actuate Automaticlly

CAUTION: HAZARDOUS AREA

2шт.

15

843224C1

BRACE

ASSY, MARKER SUPPORT

1шт.

16

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

ur 5/16" 2 3/16"w 3 3/4"d

1шт.

17

80681

LOCK WASHER,5/16"

2шт.

18

425-115

NUT,5/16"-24, G5

2шт.

19

816581C1

BAR

u-bolt clamping

1шт.

20

815735C1

PIVOT

marker rear

1шт.

21

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

22

80681

LOCK WASHER,5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

2шт.

24

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

25

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

1шт.

26

819167C1

SHACKLE

1/4 CHAIN

1шт.

27

NSS

NOT SOLD SEPARAT

CHAIN Marker Lock-Up

1шт.

Use 17 links, approximately 36 inches, of no. 2/0 tension chain, double or twin loop.

1шт.

28

815747C1

BAR

mast marker

1шт.

29

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

31

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

2шт.

32

9628503

NUT,3/8"-16, G5

2шт.

33

817595C1

SUPPORT

REINFORCING

1шт.

34

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

35

80681

LOCK WASHER,5/16"

2шт.

36

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

2шт.

38

818489C1

SUPPORT ASSY.

MARKER FRONT LH

1шт.

Shown

1шт.

38

817798C1

SUPPORT ASSY.

MARKER FRONT RH

1шт.

39

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

40

80681

LOCK WASHER,5/16"

3шт.

41

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

3шт.

42

9635082

NUT,5/16" - 18, Gr 5

3шт.

43

817697C1

PLATE

BAR, SPRING ANCHOR

1шт.

44

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

45

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

47

280431

NUT,1/2"-13, G5

3шт.

48

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

1шт.

49

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

2шт.

50

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

51

819861C1

COIL SPRING

CYLINDER HELPER

1шт.

52

817796C1

ANCHOR

assy, cylinder pivot

1шт.

53

REF

INSTRUCTION

CYLINDER ASSEMBLY - MARKER LIFT

1шт.

54

817696C1

PIVOT PIN

CYLINDER

1шт.

55

394818

COTTER PIN,M5 x 25

1шт.

56

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

57

495-81027

WASHER,21/32" x 1 1/2" x .120"

1шт.

58

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

1шт.

59

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

60

843222C1

PIVOT

ASSY, MARKER REAR

1шт.

Drills with 28" wheels for England.

1шт.
