Запчасти Case IH 5300 (9-068) - DISC MARKER, MANUAL - ROPE TYPE (09) - CHASSIS

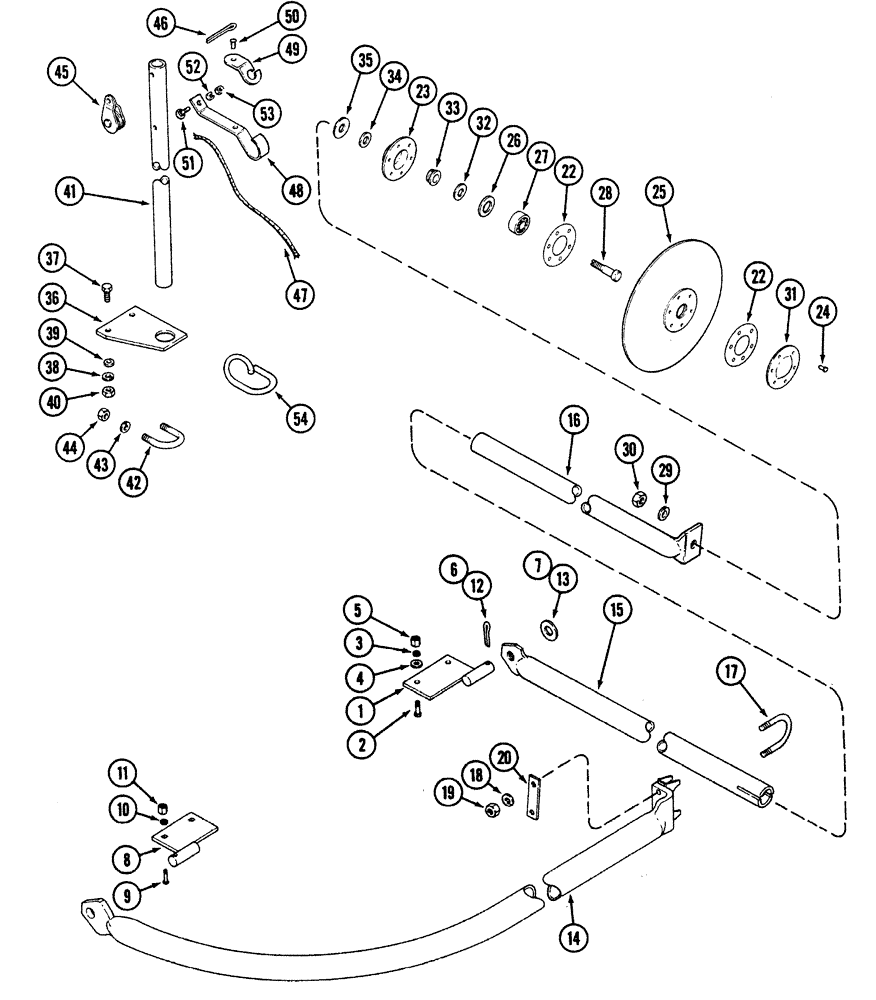

Схема запчастей Case IH 5300 - (9-068) - DISC MARKER, MANUAL - ROPE TYPE (09) - CHASSIS
16
42
19
28
22
27
20
5
24
4
29
47
44
34
7
23
45
37
41
25
33
3
53
30
26
11
15
2
35
50
14
10
9
36
1
51
13
18
8
48
38
49
54
46
6
39
43
32
52
40
17
22
31
12

Артикул

Название

Примечание

Количество

1

815734C1

PIVOT

marker front

1шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

3

80681

LOCK WASHER,5/16"

2шт.

4

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

7

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

1шт.

8

815735C1

PIVOT

marker rear

1шт.

9

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

10

80681

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

13

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

1шт.

14

815739C1

BRACKET

Brace marker support

1шт.

15

815742C1

TUBE,1.775" ID, 2" OD, 26, 2.5" Length

marker disk

1шт.

16

596516R11

TUBE,1767.8, 33 mm Length

telescoping painted

1шт.

17

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

ur 5/16" 2 3/16"w 3 3/4"d

1шт.

18

80681

LOCK WASHER,5/16"

2шт.

19

425-115

NUT,5/16"-24, G5

2шт.

20

816581C1

BAR

u-bolt clamping

1шт.

22

815746C92

DISC

ASSY, MARKER

1шт.

22

602992R1

GASKET

BEARING RETAINER

2шт.

23

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

BEARING

1шт.

24

45-48

RIVET,But Hd, 1/4" x 1/2"

6шт.

25

603004R2

PLOW DISC

355.6X2.5MM 6-HOLE MARKER/COVERING

1шт.

26

602994R1

FLANGE

seal 29/32"id x 1 9/16"od

1шт.

27

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

41622600

1шт.

28

602987R1

BOLT

DISK

1шт.

29

12034871

WASHER

5/8"

1шт.

30

408

NUT,5/8" - 18, Gr 5

1шт.

31

602990R1

CAP

DISK

1шт.

32

464628R1

SEAL

DIRT

1шт.

33

602988R1

SPACER

SEAL RETAINER

1шт.

34

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

1шт.

35

495-81033

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

1шт.

36

815747C1

BAR

mast marker

1шт.

37

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

21шт.

39

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

2шт.

40

9628503

NUT,3/8"-16, G5

2шт.

41

815748C1

TUBE,33.4 mm OD, 980.4 mm Length

rope pulley mast

1шт.

42

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

ur 3/8"-16 x 13/8" wide x 1 15/16" deep

1шт.

43

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

44

9628503

NUT,3/8"-16, G5

2шт.

45

819043C91

PULLEY

ASSY

2шт.

46

86523960

COTTER PIN,3/8" x 3"

2шт.

47

PL

PROCURE LOCALLY

ROPE Sisal, 3/8 x 42 foot

1шт.

48

615712R91

GUIDE

ASSY, MARKER ROPE

1шт.

49

FA4916

SPRING

ROPE GUIDE LOCKING

1шт.

50

49-36

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

51

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

1шт.

52

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

1шт.

53

9628503

NUT,3/8"-16, G5

1шт.

54

815893C1

ROD

marker hold-up

1шт.

Выбрано товаров: 54
