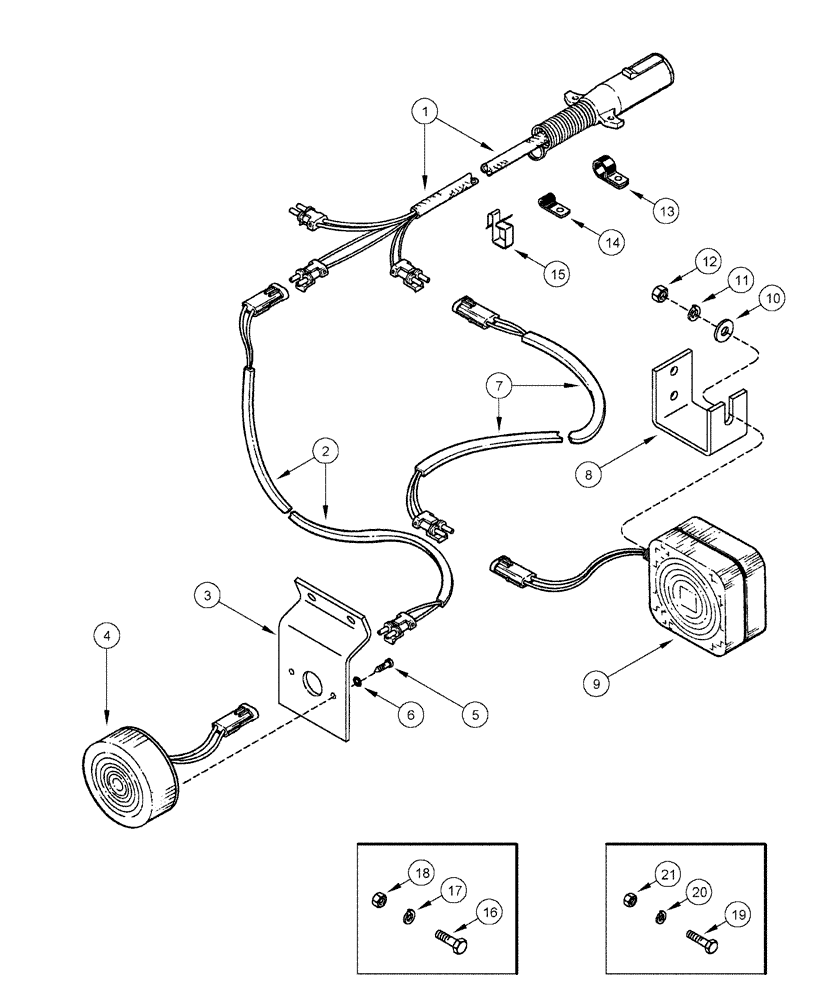

Запчасти Case IH 5300 (4-02) - ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

92092C2

HARNESS

safety lights

1шт.

2

92095C1

HARNESS

1.1 m 16 awg 2 connector Packard

1шт.

3

323887A1

BRACKET

tail light

1шт.

4

91986C91

LIGHT

tail, red

1шт.

5

87016542

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

7

92097C1

HARNESS

safety lighting

2шт.

8

1333837C1

BRACKET

warning lite mount

2шт.

9

192052A1

REPAIR KIT

warning light (2 wire), Years: -01-SEP-05

2шт.

Shown

1шт.

9

87564157

WARNING LIGHT

assembly amber, Start Year: 01-OCT-05

2шт.

Not Shown

1шт.

10

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

13

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

4шт.

14

366460R1

CABLE CLIP

j 1/4" short

8шт.

15

92144C1

CABLE CLIP

.025-.055

20шт.

16

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

18

9628503

NUT,3/8"-16, G5

4шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

20

80681

LOCK WASHER,5/16"

4шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.
