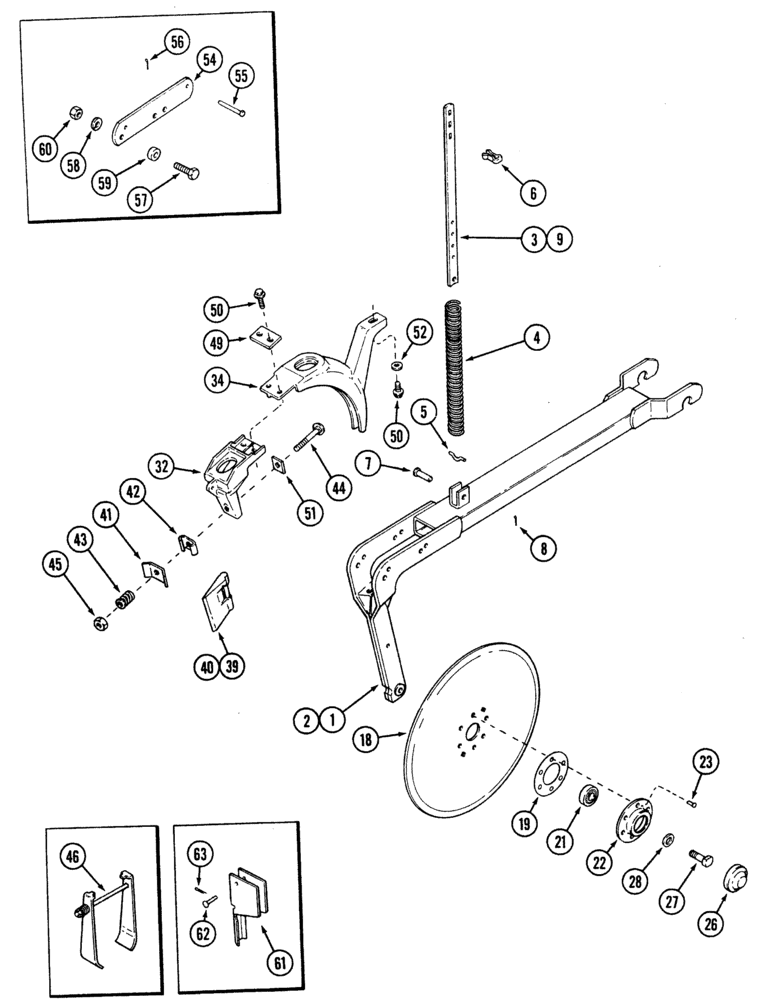

Запчасти Case IH 5300 (9-060) - DOUBLE DISC FURROW OPENER (09) - CHASSIS

1

1334029C1

DRAWBAR

long 580mm tube length

1шт.

2

1337102C1

DRAWBAR

short 437.5mm tube length

1шт.

3

1333955C1

BAR

pressure rod rear

1шт.

4

113976A1

SPRING

C .162" wire .992" ID 1.34" OD and .816" ID 1.14OD 15.87" long

1шт.

5

1337321C1

CLIP

spring lock 1/4" OD

1шт.

6

605964R1

CLIP

clip

2шт.

7

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

8

80755

COTTER PIN,1/8" OD x 1" L

1шт.

9

1333954C1

BAR

pressure rod front

1шт.

18a

1344911C2

DISK DRILL

opener assembly 355.6 mm x 2.0 mm, Years: -01-JUN-03

2шт.

Includes Refs. 18, 19, 21, 22 and six of 23

1шт.

18b

1344911C3

DISK DRILL

OPENER ASSY, 14" X 2.5M, Start Year: 01-JUN-03

2шт.

Includes Refs. 18, 19, 21, 22 and six of 23

1шт.

18

NSS

NOT SOLD SEPARAT

DISC Furrow Opener

2шт.

19

1344952C2

GASKET

Paper

1шт.

21

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id, Years: -01-AUG-07

1шт.

21

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

21

87668158

BALL BEARING,16.05mm ID x 45.23mm OD x 18.67mm W

1.78 x .73 x .62 id, Start Year: 01-SEP-07

1шт.

22

149170C2

FLANGED BEARING

bearing

1шт.

23

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

26

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

27

1978957C1

BOLT,Hex, 5/8" - 11 x 1-1/4", LH Thd, Gr 5

LK .625X1.25 UNC LH GR5 PLAIN, C/W .5 LOC-GRIP

1шт.

27

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

28

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

2шт.

32

842894C1

BOOT

rear, akulon

1шт.

34

1279970C2

BOOT

plastic inj molded black f/o front

1шт.

39a

843364C92

KIT

scraper assembly - disk, inside

1шт.

Includes Refs. 39 - 63

1шт.

39

816666C1

BLADE

Scraper, RH

1шт.

40

816665C1

BLADE

Scraper, LH

1шт.

41

816668C1

LEDGER PLATE

scraper

1шт.

42

819808C1

HINGE

inside scraper

1шт.

43

N62536

VALVE SPRING

C 1/16" wire x 15/32" od x 1" long

1шт.

44

433-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

1шт.

45

280736

NUT,5/16"-18, GC

1шт.

46

819373C1

PACKAGE

DOUBLE DISK OUTSIDE SCRAPER

1шт.

49

88893C1

PLATE

boot back-up

1шт.

50

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

3шт.

51

97756C1

BACK PLATE

scraper

1шт.

52

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

54

1973197C1

BAR

pivot

1шт.

55

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

1шт.

56

80755

COTTER PIN,1/8" OD x 1" L

1шт.

57

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

58

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

59

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

2шт.

60

280431

NUT,1/2"-13, G5

2шт.

61

819208C1

DEFLECTOR

FERTILIZER

1шт.

62

439-1416

HEADED PIN,1/4" x 1"

1шт.

63

80755

COTTER PIN,1/8" OD x 1" L

1шт.
