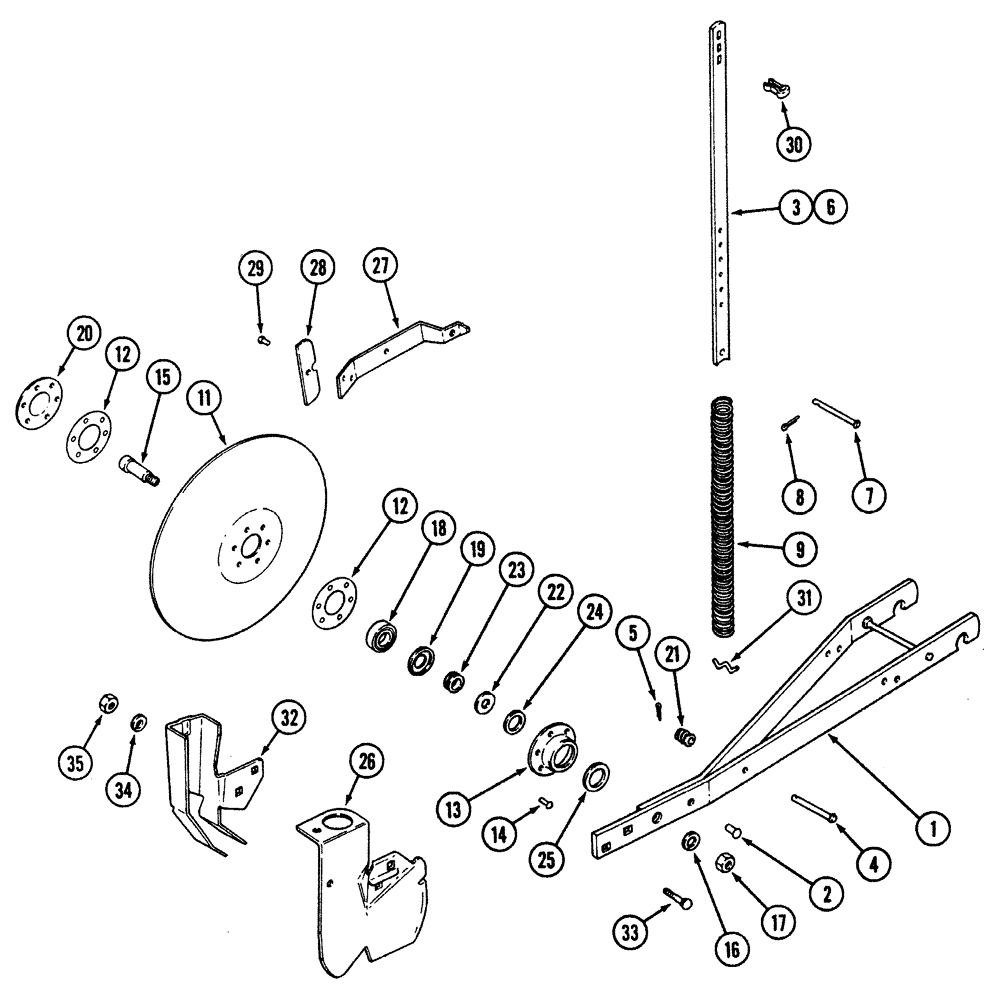

Запчасти Case IH 5300 (9-058) - SINGLE DISC FURROW OPENER (09) - CHASSIS

1

815470C1

DRAWBAR

ASSY FRONT

1шт.

Shown

1шт.

1

815471C1

BAR

DRAW ASSY FRONT

1шт.

1

815472C1

DRAWBAR

ASSY REAR

1шт.

1

815473C1

BAR

DRAW ASSY REAR

1шт.

1

816748C1

BAR

DRAW ASSY

1шт.

Drills with 20" wheels for England.

1шт.

1

816749C1

BAR

DRAW ASSY

1шт.

Drills with 20" wheels for England.

1шт.

1

816754C1

BAR

DRAW ASSY

1шт.

Drills with 20" wheels for England.

1шт.

1

816755C1

DRAWBAR

ASSY

1шт.

Drills with 20" wheels for England.

1шт.

1

840921C1

DRAWBAR

ASSY

1шт.

Drills with 28" wheels for England.

1шт.

1

840922C1

DRAWBAR

ASSY

1шт.

Drills with 28" wheels for England.

1шт.

1

840915C1

DRAWBAR

ASSY

1шт.

Drills with 28" wheels for England.

1шт.

1

840916C1

DRAWBAR

ASSY

1шт.

Drills with 28" wheels for England.

1шт.

2

49-616

RIVET,Tr Hd, 3/8" x 1"

1шт.

3

815482C1

BAR

PRESSURE RODS

1шт.

3

816756C2

BAR

PRESSURE ROD-FRONT

1шт.

Drills with 20" wheels for England.

1шт.

3

840927C1

BAR

PRESSURE SPRING FRONT

1шт.

Drills with 28" wheels for England.

1шт.

4

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

1шт.

5

80755

COTTER PIN,1/8" OD x 1" L

1шт.

6

816757C1

BAR

PRESSURE ROD-REAR

1шт.

6

840928C1

BAR

PRESSURE ROD-REAR

1шт.

Drills with 28" wheels for England.

1шт.

7

J623

HEADED PIN,9.53mm OD x 88.9mm L

1шт.

8

80756

COTTER PIN,1/8" x 3/4"

1шт.

9

6638-1

SPRING

Pressure

1шт.

9

113976A1

SPRING

C .162" wire .992" ID 1.34" OD and .816" ID 1.14OD 15.87" long

1шт.

For drills used in England.

1шт.

11

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL

1шт.

11

603004R2

PLOW DISC

355.6X2.5MM 6-HOLE MARKER/COVERING

1шт.

12

602992R2

GASKET,0.79mm Thk

BEARING RETAINER

2шт.

13

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

BEARING

1шт.

14

45-48

RIVET,But Hd, 1/4" x 1/2"

6шт.

15

602987R1

BOLT

DISK

1шт.

16

12034871

WASHER

5/8"

1шт.

17

408

NUT,5/8" - 18, Gr 5

1шт.

18

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

41622600

1шт.

19

602994R1

FLANGE

seal 29/32"id x 1 9/16"od

1шт.

20

602990R1

CAP

DISK

1шт.

21

N32176

SPRING

C .072" wire x .594" od x 3/4" long

1шт.

22

464628R1

SEAL

DIRT

1шт.

23

602988R1

SPACER

SEAL RETAINER

1шт.

24

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

2шт.

25

495-81033

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

1шт.

26

819191C2

BOOT

SINGLE DISK-LH

1шт.

26

819192C2

BOOT

SINGLE DISK-RH

1шт.

27

603620R11

BLADE

ASSY, DISK SCRAPER LH

1шт.

27

603621R11

PACKAGE

BLADE ASSY, DISK SCRAPER LH

1шт.

28

W7008

BLADE

SCRAPER

1шт.

29

49-36

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

30

605964R1

CLIP

clip

1шт.

31

F6366

LOCK

PRESSURE SPRING

1шт.

32

819165C1

BOOT

DEFLECTOR, LH

1шт.

32

819166C1

BOOT

DEFLECTOR, RH

1шт.

32

816740C1

GUARD

DEFLECTOR, DIRT LH

1шт.

For drills used in England.

1шт.

32

816741C1

GUARD

DEFLECTOR, DIRT RH

1шт.

For drills used in England.

1шт.

33

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

2шт.

34

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

35

9628503

NUT,3/8"-16, G5

2шт.
