Запчасти Case IH 5300 (9-056) - AXLE DRIVE (09) - CHASSIS

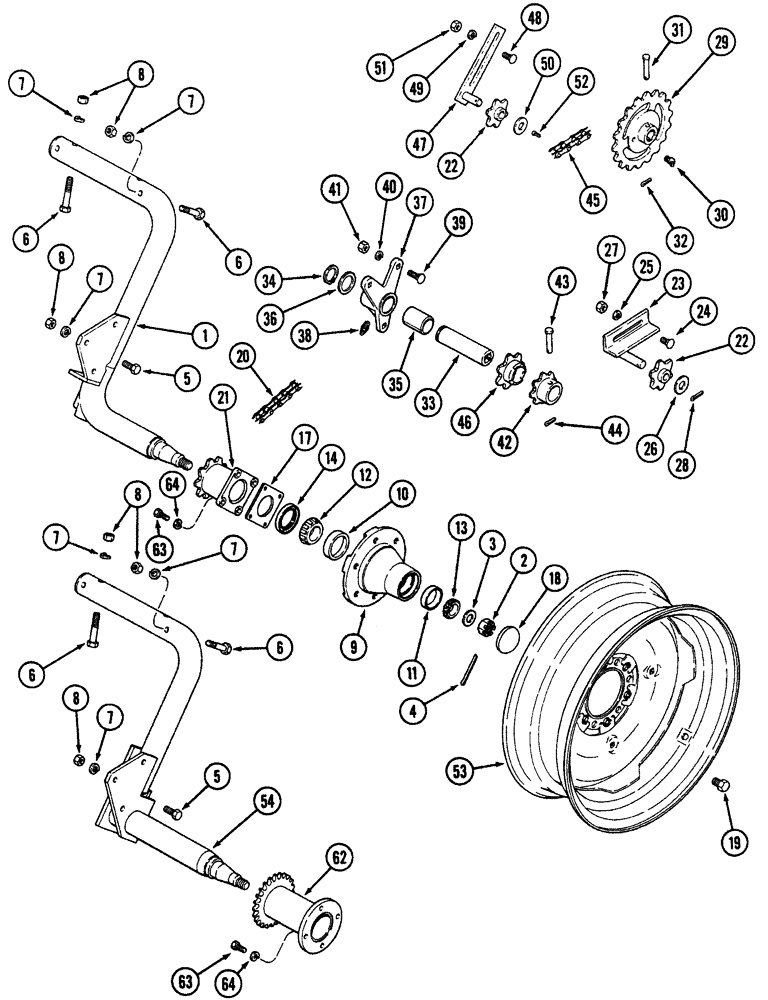

Схема запчастей Case IH 5300 - (9-056) - AXLE DRIVE (09) - CHASSIS
9
6
45
26
2
7
42
41
46
64
40
13
5
7
4
22
51
43
1
34
37
7
3
38
7
31
29
5
8
6
8
17
33
23
49
11
28
54
12
53
6
64
27
22
50
63
18
23
7
39
35
52
36
30
24
62
32
10
48
8
8
19
63
47
6
21
14
7
20
44

Артикул

Название

Примечание

Количество

1

815198C21

AXLE

ASSY, 15 LH

1шт.

1

815199C21

AXLE

ASSY, 15 RH

1шт.

1

815200C31

AXLE

ASSY, 20 LH

1шт.

1

815201C31

CENTER AXLE

ASSY, 20 RH

1шт.

2

86632554

SLOTTED NUT,3/4"-16, G5

1шт.

3

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

2шт.

4

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

5

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

6

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

8шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

8

280431

NUT,1/2"-13, G5

14шт.

9

815211C21

HUB

6 bolt w/ cups only

2шт.

9

841049C91

HUB

ASSY, WHEEL

2шт.

10

478793R1

BEARING CUP

LM29710

1шт.

11

132709

BEARING CUP,50.29mm OD x 10.67mm W

#L44610

1шт.

12

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

LM29749

2шт.

13

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

CONE #L44649

2шт.

14

815219C91

OIL SEAL

2 23/32"od x 1 7/8"id x 5/8"w

2шт.

17

307969A1

SPACER

axle

2шт.

18

224066C1

HUB CAP

dust 2 21/64" od

2шт.

19

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

19

391004R2

BOLT,Hex, 5/8" - 18 x 1.75"

REAR WHEEL MOUNTING (Used With 28 inch Wheels)

16шт.

20

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - PRIMARY, MAIN DRIVE (13 x 7 DRILLS WITH SINGLE DRIVE, USING 15 inch WHEELS AND 24 TOOTH DRIVE SPROCKET)

1шт.

Use 55 links of no. 2050 chain and 1 offset link 456929R91 and 1 connecting link 1277928C91.

1шт.

20

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - PRIMARY, MAIN DRIVE (1 PER DRIVE WITH 20 inch WHEELS AND 18 TOOTH DRIVE SPROCKET)

1шт.

Use 45 links of no. 2050 chain and 2 offset link 456929R91 and 1 connecting link 1277928C91.

1шт.

20

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - PRIMARY, MAIN DRIVE (1 PER DRIVE WITH 28 inch WHEELS AND 18 TOOTH DRIVE SPROCKET)

1шт.

Use 45 links of no. 2050 chain and 3 offset link 456929R91 and 1 connecting link 1277928C91.

1шт.

21

815220C1

DRIVE SPROCKET

wheel 9T

1шт.

22

819457C1

SPROCKET

6 tooth, plastic

2шт.

23

819456C1

BRACKET

idler chain tightener LH

1шт.

23

819461C1

BRACKET

idler chain tightener RH

1шт.

24

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

26

495-81026

WASHER,21/32" x 1 1/2" x .060"

2шт.

27

9628503

NUT,3/8"-16, G5

4шт.

28

394818

COTTER PIN,M5 x 25

2шт.

29

815241C1

DRIVE SPROCKET

COUNTERSHAFT CLUTCH-LH 24T

1шт.

29

815240C1

DRIVE SPROCKET

clutch 18T RH

1шт.

29

815239C1

DRIVE SPROCKET

clutch 18T LH

1шт.

30

87414

LUBE NIPPLE,1/4" - 28

1шт.

31

439-1632

HEADED PIN,9.53mm OD x 50.8mm L

1шт.

32

80756

COTTER PIN,1/8" x 3/4"

1шт.

33

815140C2

SLEEVE

bushing square shaft plain

1шт.

34

100-11137

SNAP RING,#137, Ext

1шт.

35

815144C1

BUSHING,34.92mm ID x 38.1mm OD x 57.15mm L

1 3/8"id x 1 1/2"od 2 1/4"

1шт.

36

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

3шт.

37

815143C12

BEARING ASSY

bearing assembly

1шт.

38

80719

LUBE NIPPLE,1/8" NPT

1шт.

39

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

40

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

41

9628503

NUT,3/8"-16, G5

3шт.

42

815141C1

DRIVE SPROCKET

8T fertilizer

1шт.

42

815771C1

DRIVE SPROCKET

16 tooth

1шт.

43

U5356

HEADED PIN,9.53mm OD x 57.15mm L

1шт.

44

80756

COTTER PIN,1/8" x 3/4"

1шт.

45

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - GRAIN DRIVE (1 PER DRIVE WITH 7 TOOTH GRAIN DRIVEN SPROCKET)

1шт.

Use 33 links of no. 2050 chain and 2 offset link 456929R91 and 1 connecting link 1277928C91.

1шт.

45

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - GRAIN DRIVE (1 PER DRIVE WITH 14 TOOTH GRAIN DRIVEN SPROCKET)

1шт.

Use 37 links of no. 2050 chain and 2 offset link 456929R91 and 1 connecting link 1277928C91.

1шт.

46

815142C1

DRIVE SPROCKET

3 9/32"od x 7T

1шт.

46

815770C1

DRIVE SPROCKET

14 tooth

1шт.

47

816040C2

BRACKET

assembly

1шт.

48

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

50

495-81026

WASHER,21/32" x 1 1/2" x .060"

1шт.

51

9628503

NUT,3/8"-16, G5

2шт.

52

394818

COTTER PIN,M5 x 25

1шт.

53

T53527

WHEEL

15 x 5 KB

2шт.

53

843406C1

WHEEL

20 x 7 6 hole, 1 13/16" offset

2шт.

53

NSS

NOT SOLD SEPARAT

WHEEL - 28 inch (England, For Service Purchase Locally) (13 x 7, 16 x 7, 20 x 6)

2шт.

54

841047C91

AXLE

ASSY, LH

1шт.

54

841048C91

AXLE

ASSY, RH

1шт.

62

819585C1

SPROCKET ASSY.

WHEEL 24T

1шт.

63

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

64

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

Выбрано товаров: 76
