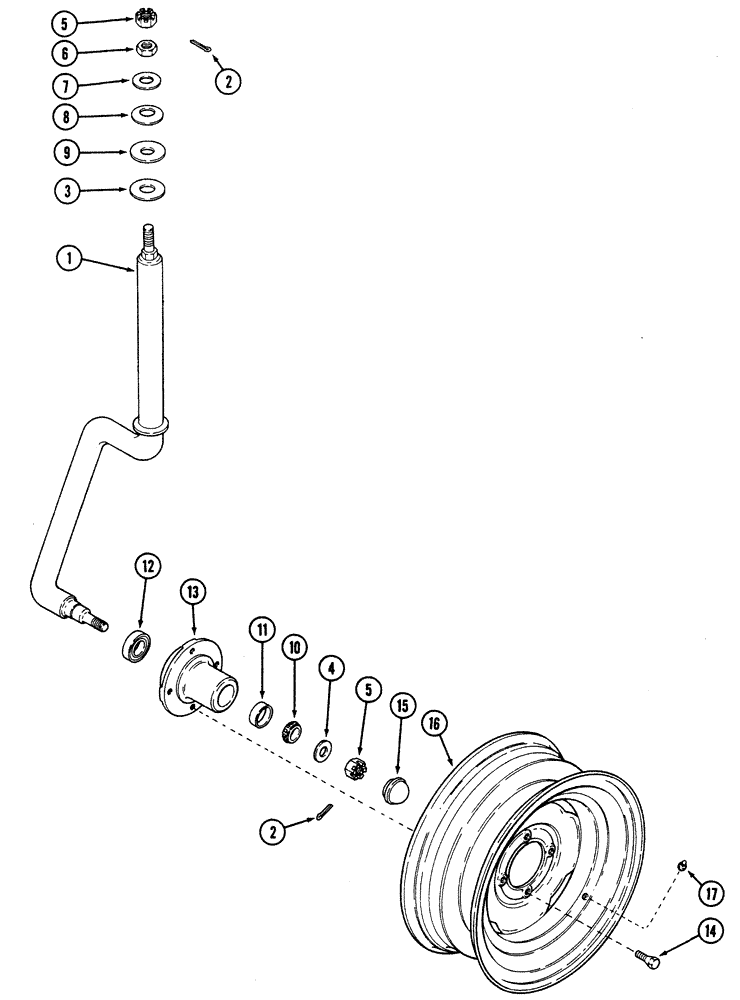

Запчасти Case IH 5300 (9-054) - CASTER WHEEL ASSEMBLY, TWO DRILL HITCH (09) - CHASSIS

0

843189C91

KNUCKLE

ASSY. AXLE, CASTER WHEEL

1шт.

1

NSS

NOT SOLD SEPARAT

AXLE Caster Sheel

1шт.

2

88350

COTTER PIN,5/32" x 1-1/2"

2шт.

3

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

4

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

1шт.

5

86632554

SLOTTED NUT,3/4"-16, G5

2шт.

6

80001689

NUT

3/4"-16, G5

1шт.

7

495-81045

WASHER,25/32" x 1 3/4" x .179"

1шт.

8

829962C1

SPRING WASHER

1шт.

9

829963C1

WASHER

.781 X 2.750 X .164

1шт.

10

36724

BEARING CONE,19.07mm ID x 16.64mm W

#LM11949

1шт.

11

36725

BEARING CUP,45.26mm OD x 12.06mm W

#LM11910

1шт.

12

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

with seal, spindle inner

1шт.

13

591535R1

HUB

CASTER WHEEL

1шт.

14

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL

4шт.

15

427741A1

HUB CAP

1шт.

16

1030857

WHEEL

15 x 4.5k 4-hole with vg

1шт.

17

196033

VALVE STEM

tr/415

1шт.
